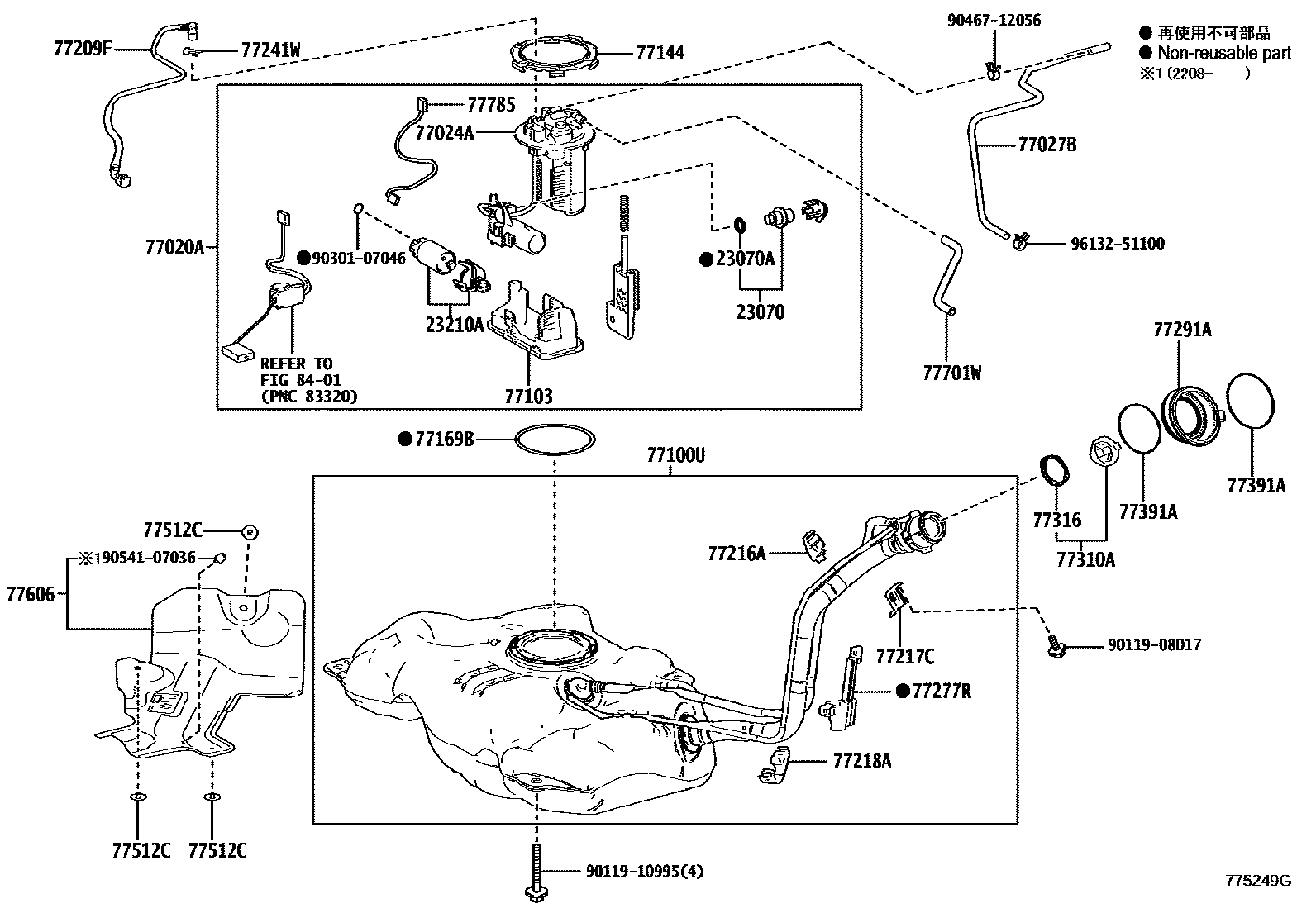

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM15#..MXPB10,MXPJ1#202008-202401

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM15#..MXPB10,MXPJ1#202008-202401

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-24010iM15#..MXPB10,MXPJ1#202008-202401

main23210-37020iM15AFXE..MXPJ1#202401

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52560iMXPB10202008-202401

main77020-52620iMXPJ1#202008-202401

main77020-52700iMXPJ1#202401

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52260iMXPB10202008-202401

main77024-52330iMXPJ1#202008-202401

main77024-52400iMXPJ1#202401

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-52210iMXPB10202008-202401

main77027-52230iMXPJ1#202008-202401

77100UTANK SUB-ASSY, FUEL

main77001-52560iMXPB10202008-202206

main77001-52561iMXPB10202207-202401

main77001-52610iMXPJ10202008-202208

main77001-52611iMXPJ10202209-202401

main77001-52620iMXPJ15202008-202208

main77001-52621iMXPJ15202401

77103SUB-TANK SUB-ASSY, FUEL

main77103-52090iMXPB10202008-202401

main77103-52120iMXPJ1#202008-202401

main77103-52130iMXPJ1#202401

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXPB10,MXPJ1#202008-202401

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iMXPB10,MXPJ1#202008-202401

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52280iMXPB10202008-202401

main77209-52300iMXPJ1#202401

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52300iMXPJ1#202401

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52190iMXPB10,MXPJ1#202008-202401

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-52050iMXPJ10202401

main77218-52060iMXPJ15202008-202401

77241WCLIP, TUBE JOINT

main77241-33011iMXPB10,MXPJ1#202008-202103

main77241-60550iMXPB10,MXPJ1#202104-202401

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iMXPB10,MXPJ10202008-202401

main77277-52130iMXPJ15202008-202401

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K0010iMXPB10,MXPJ1#202008-202401

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPJ1#202401

77316GASKET, FUEL TANK CAP

main77316-52040iMXPB10,MXPJ1#202008-202401

77391ARING, FUEL INLET BOX

main77391-12020×2iMXPB10,MXPJ1#202008-202401

77512CBRACKET, FUEL TANK

main77512-35140×3iMXPB10,MXPJ1#202008-202401

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52140iMXPB10202008-202207

main77606-52141iMXPB10202207-202401

main77606-52160iMXPJ1#202008-202208

main77606-52161iMXPJ1#202209-202401

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52060iMXPB10202008-202401

main77701-52080iMXPJ1#202008-202401

77785HARNESS, FUEL PUMP

main77785-52120iMXPJ1#202008-202401

main77785-52141iMXPJ1#202401

main77785-76010iMXPB10202008-202401

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9030107046

main90301-07046

9046712056

main90467-12056

9054107036

main90541-07036

9613251100

main96132-51100

31 parts on this diagram · 8 diagrams in section
