REAR SEAT & SEAT TRACK

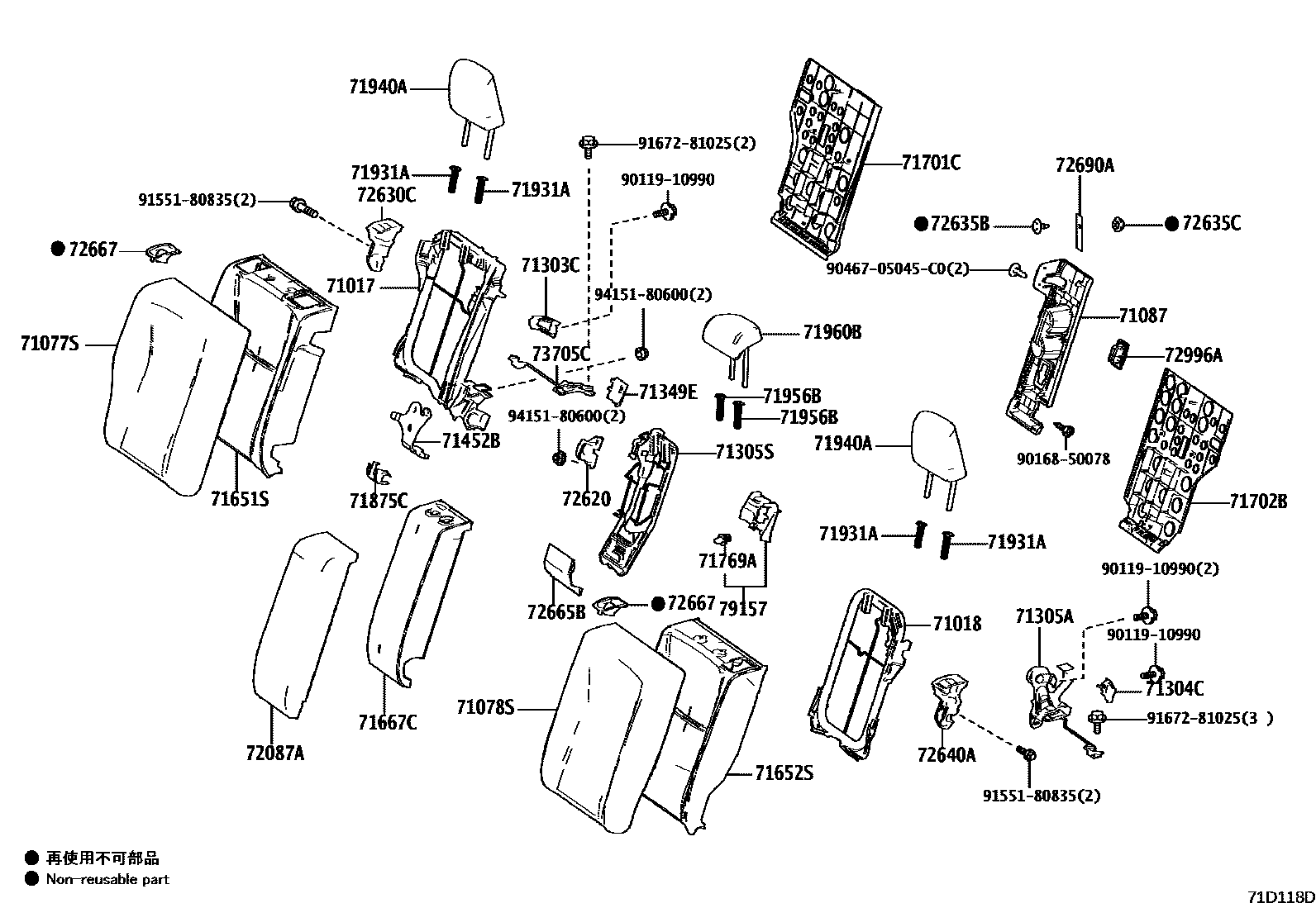

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-52790i202008-202401
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-52560i202008-202401
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-52V70-C4i202208-202401
SADDLE TAN,TRIM4#
main71077-52V70-C5i202008-202401
KHAKI,TRIM6#
main71077-52V70-C7i202401-202503
BLACK,TRIM2#
main71077-52V80-B4i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,GRAY,TRIM40
main71077-52V80-C3i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM41
main71077-52V80-C4i202208-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71077-52Z60-C0i202210-202302
BLACK,TRIM2#
main71077-52Z61-C1i202303-202503
BLACK,TRIM2#
main71077-5CD70-C1i202401-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71077-5CD70-C2i202401-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,KHAKI,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-52R20-C4i202208-202401
SADDLE TAN,TRIM4#
main71078-52R20-C5i202008-202401
KHAKI,TRIM6#
main71078-52R20-C7i202401-202503
BLACK,TRIM2#
main71078-52R30-B4i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,GRAY,TRIM40
main71078-52R30-C3i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM41
main71078-52R30-C4i202208-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71078-52U00-C0i202210-202302
BLACK,TRIM2#
main71078-52U01-C1i202303-202503
BLACK,TRIM2#
main71078-52W00-C1i202401-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71078-52W00-C2i202401-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,KHAKI,TRIM4#
71087BOARD SUB-ASSY, REAR SEATBACK
main71087-52030-C0i202210-202401
BLACK,TRIM2#
main71087-52030-C0i202008-202401
BLACK,TRIM2#,4#,6#
main71087-52030-C0i202401
BLACK,TRIM2#,4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-K0030i202008-202401
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-K0030i202008-202401
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-52120i202008-202401
DECK CARPET & MAT-SEPARATE DECK BOARD
main71305-52130i202008-202401
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-52110i202008-202401
71349ECOVER, REAR SEATBACK HINGE
main71349-52050-C0i202210-202401
BLACK,TRIM2#
main71349-52050-C0i202008-202401
BLACK,TRIM2#,4#,6#
main71349-52050-C0i202401
BLACK,TRIM2#,4#
71452BBRACKET, REAR SEATBACK
main71277-52010i202008-202401
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-52840i202008-202401
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-K0040i202008-202401
71667CPAD, REAR NO.1 SEATBACK, CENTER
main71667-52010i202008-202401
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-52010i202008-202401
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-K0020i202008-202401
71769ACLIP, REAR SEATBACK BOARD
main71769-28030i202008-202401
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52490i202008-202401
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202401
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5i202008-202401
W(LOCK),BLACK,TRIM4#,6#
main71930-47050-C5i202210-202401
W(LOCK),BLACK,TRIM2#
main71931-47030-C4i202008-202401
W/O(LOCK),BLACK,TRIM4#,6#
main71931-47030-C4i202210-202401
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4i202401
W/O(LOCK),BLACK,TRIM2#,4#
71940AHEADREST ASSY, REAR SEAT
main71940-52L00-C2i202008-202401
BLACK,TRIM4#,6#
main71940-52L00-C2i202401
BLACK,TRIM2#,4#
main71940-52L10-C0i202208-202502
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71940-52L10-E4i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,NOBLE BROWN,TRIM40
main71940-52L10-E5i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,SADDLE TAN,TRIM41
main71940-52L10-E6i202401-202502
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,KHAKI,TRIM4#
main71940-52P10-C0i202210-202306
BLACK,TRIM2#
main71940-52P11-C2i202307-202502
BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202401
W(LOCK),BLACK,TRIM2#,4#
main71930-47050-C5i202210-202401
W(LOCK),BLACK,TRIM2#
main71930-47050-C5i202008-202401
W(LOCK),BLACK,TRIM4#,6#
main71931-47030-C4i202008-202401
W/O(LOCK),BLACK,TRIM4#,6#
main71931-47030-C4i202401
W/O(LOCK),BLACK,TRIM2#,4#
main71931-47030-C4i202210-202401
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-52C80-C2i202008-202401
BLACK,TRIM4#,6#
main71960-52C80-C2i202401
BLACK,TRIM2#,4#
main71960-52C90-C0i202307-202502
BLACK,TRIM2#
main71960-52C90-C0i202208-202502
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main71960-52C90-E4i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,NOBLE BROWN,TRIM40
main71960-52C90-E5i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,SADDLE TAN,TRIM41
main71960-52C90-E6i202401-202502
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,KHAKI,TRIM4#
main71960-52E80-C0i202210-202307
BLACK,TRIM2#
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
main72087-52220-C2i202401-202503
BLACK,TRIM2#,4#
main72087-52220-C2i202008-202401
BLACK,TRIM4#,6#
main72087-52230-C0i202208-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
main72087-52230-E6i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,NOBLE BROWN,TRIM40
main72087-52230-E7i202008-202401
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,SADDLE TAN,TRIM41
main72087-52230-E8i202401-202503
HIGH PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,KHAKI,TRIM4#
main72087-52280-C0i202210-202302
BLACK,TRIM2#
main72087-52281-C1i202303-202503
BLACK,TRIM2#
72620LOCK ASSY, REAR SEATBACK
main72630-52200i202008-202401
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47050-C2i202008-202401
BLACK,TRIM2#,4#,6#
sub72630-47050
main72630-47050-C2i202210-202401
BLACK,TRIM2#
sub72630-47050
main72630-47050-C2i202401
BLACK,TRIM2#,4#
sub72630-47050
72635BHOOK, REAR SEATBACK LOCK(MALE)
main72635-13010-C2i202008-202401
BLACK
sub72635-13010
72635CHOOK, REAR SEATBACK LOCK(FEMALE)
main72635-13020-C2i202008-202401
BLACK
sub72635-13020
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47050-C2i202210-202401
BLACK,TRIM2#
sub72640-47050
main72640-47050-C2i202401
BLACK,TRIM2#,4#
sub72640-47050
main72640-47050-C2i202008-202401
BLACK,TRIM2#,4#,6#
sub72640-47050
72665BCOVER, REAR SEATBACK LOCK
main72665-52070i202008-202401
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-47010-C1i202210-202401
BLACK,TRIM2#
main72667-47010-C1i202008-202401
BLACK,TRIM2#,4#,6#
main72667-47010-C1i202401
BLACK,TRIM2#,4#
72690ASTRAP ASSY, REAR SEAT LOCK RELEASE
main72690-52050-C0i202008-202401
BLACK,TRIM2#,4#,6#
main72690-52050-C0i202401
BLACK,TRIM2#,4#
main72690-52050-C0i202210-202401
BLACK,TRIM2#
72996ACOVER, REAR SEATBACK
main72996-48160-C1i202401
BLACK,TRIM2#,4#
main72996-48160-C1i202008-202401
BLACK,TRIM2#,4#,6#
main72996-48160-C1i202210-202401
BLACK,TRIM2#
73705CBRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR
main73705-K0030i202008-202401
79157COVER, NO.1 SEATBACK
main79157-52010i202008-202401
9011910990
main90119-10990
9016850078
main90168-50078
9046705045C0
main90467-05045C0
9155180835
main91551-80835
9167281025
main91672-81025
9415180600
main94151-80600

40 parts on this diagram · 3 diagrams in section
