BACK DOOR PANEL & GLASS

62785FSPACER, BACK DOOR GLASS

64785ABASE, BACK DOOR TRIM

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-K2020iMXPJ10..V202008-202401

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52130iMXPJ10..V202008-202401

main64827-52130iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52130iMXPJ10..V202008-202401

main64828-52130iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

67005PANEL SUB-ASSY, BACK DOOR

main67005-52E00iMXPB10,MXPJ1#202008-202204

sub67005-52E01

main67005-52E01iMXPB10,MXPJ1#202205-202212

sub67005-52E02

main67005-52E02iMXPB10,MXPJ1#202301-202302

sub67005-52E03

main67005-52E03iMXPB10,MXPJ1#202303-202401

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iMXPB10,MXPJ1#202008-202401

67751BOARD, BACK DOOR TRIM

main67751-52220-C0iMXPB10,MXPJ1#202008-202204

BLACK,TRIM2#,4#,6#

sub67751-52221

main67751-52221-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,4#,6#

main67751-52221-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67751-52221-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10161iMXPB10,MXPJ1#202008-202401

67761ACOVER, BACK DOOR TRIM

main67761-52040-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67761-52040-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67761-52040-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67837NSEAL, BACK DOOR DUST PROOF

main67837-K0040iMXPB10,MXPJ1#202008-202401

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-52030-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67847-52030-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67847-52030-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-52010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67848-52010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67848-52010-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67881AWEATHERSTRIP, BACK DOOR

main67881-52240iMXPJ1#202008-202401

68131GLASS, BACK DOOR

main68105-52770iMXPB10,MXPJ1#..N202304-202401

W/O(ANTENNA)

main68105-52860iMXPJ10..V202210-202304

main68105-52870iMXPB10,MXPJ1#..N202008-202304

W(ANTENNA)

main68105-52C81iMXPJ1#..N202401

HIGH PACKAGE

main68105-52C81iMXPJ1#..N202401

MID PACKAGE

main68105-52D00iMXPJ10..N202401

SINGAPORE SPEC&MID PACKAGE&AUDIO-WITHOUT

main68105-52D00iMXPJ1#..N202401

SINGAPORE SPEC&HIGH PACKAGE&AUDIO-WITHOUT

main68105-52D10iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

74811DHANDLE, DOOR PULL

main74811-13010-C2iMXPJ10..V202210-202401

BLACK,TRIM2#

sub74811-13010

main74811-13010-C2iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

sub74811-13010

main74811-13010-C2iMXPJ1#..N202401

BLACK,TRIM2#,4#

sub74811-13010

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iMXPB10,MXPJ1#202008-202401

75573KMOULDING, BACK WINDOW, OUTSIDE RH

main75573-52270iMXPJ10..V202008-202401

main75573-52270iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

main75573-52310iMXPJ1#202401

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-52120iMXPJ10..V202008-202401

main75574-52120iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

main75574-52160iMXPJ1#202401

75575DMOULDING, BACK WINDOW, LOWER

main75575-52050iMXPJ10..V202008-202401

main75575-52050iMXPJ10..V202304-202401

BACK GLASS-PRIVACY

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-52070iMXPB10,MXPJ1#202008-202208

8604

8281952440GROMMET, WIRING HARNESS

main82819-52440

9015960621

main90159-60621

9018906244

main90189-06244

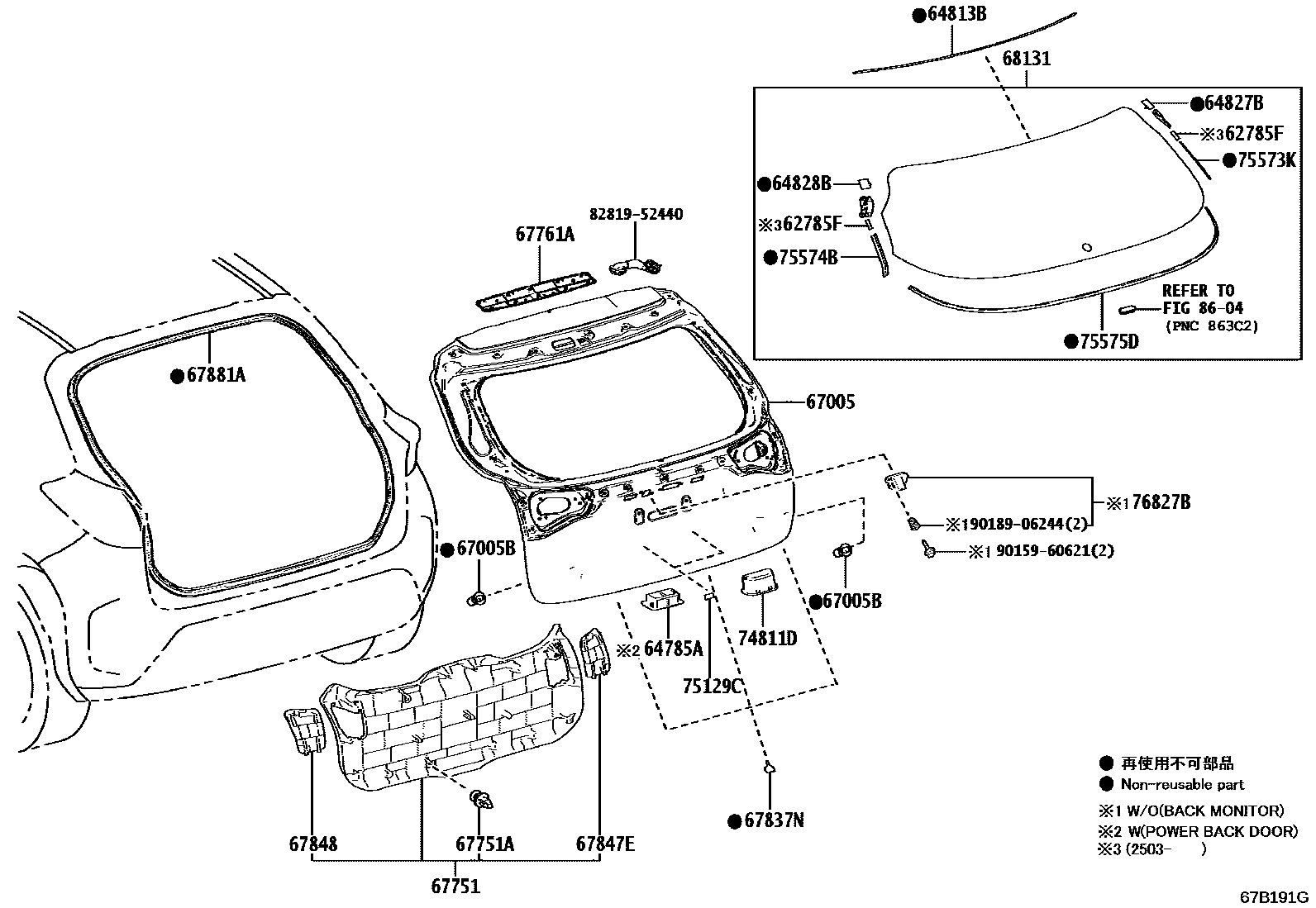

25 parts on this diagram · 1 diagram in section
