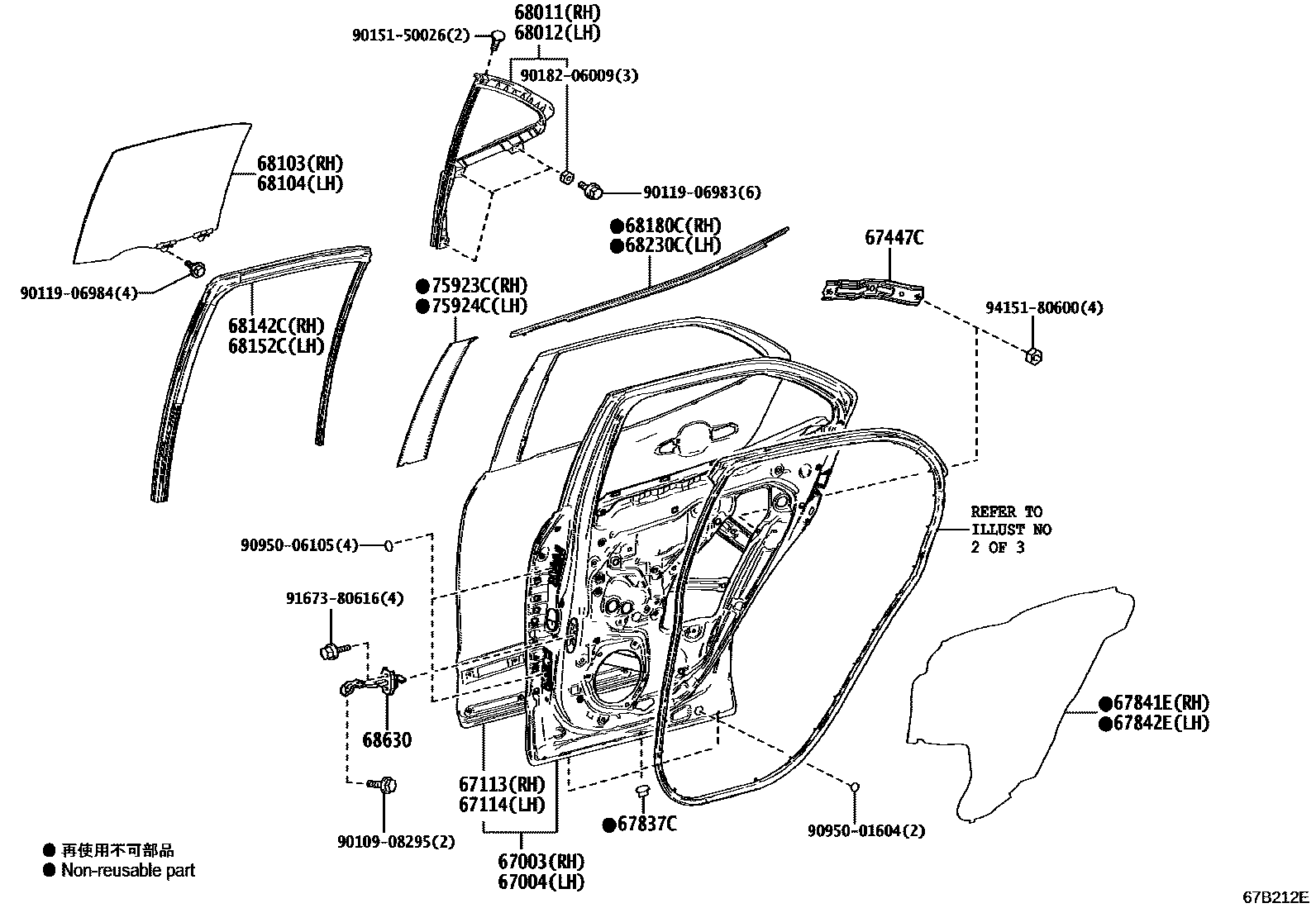

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52500iMXPJ10202008-202401

main67003-52510iMXPJ15202008-202401

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52520iMXPJ10202008-202401

main67004-52530iMXPJ15202008-202401

67113PANEL, REAR DOOR, OUTER RH

main67113-K2010iMXPB10,MXPJ1#202008-202401

67114PANEL, REAR DOOR, OUTER LH

main67114-K2010iMXPB10,MXPJ1#202008-202401

67447CPLATE, REAR DOOR WINDOW GUIDE, LOWER

main67447-52030iMXPJ1#202008-202401

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iMXPB10,MXPJ1#202008-202401

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-K0010iMXPB10,MXPJ1#202008-202304

sub67841-K0011

main67841-K0011iMXPB10,MXPJ1#202305-202401

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-K0010iMXPB10,MXPJ1#202008-202304

sub67841-K0011

main67841-K0011iMXPB10,MXPJ1#202305-202401

68011GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH

main68011-52010iMXPB10,MXPJ1#..N202008-202401

main68011-52020iMXPJ10..V202008-202401

BACK GLASS-PRIVACY

main68011-52020iMXPJ10..V202210-202401

68012GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH

main68012-52010iMXPB10,MXPJ1#..N202008-202401

main68012-52020iMXPJ10..V202008-202401

BACK GLASS-PRIVACY

main68012-52020iMXPJ10..V202210-202401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-52040iMXPB10,MXPJ1#..N202008-202401

main68103-52050iMXPB10,MXPJ1#..N202008-202401

BACK GLASS-PRIVACY

main68103-52050iMXPJ10..V202210-202401

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-52080iMXPJ1#..N202008-202401

main68104-52090iMXPJ10..V202008-202401

BACK GLASS-PRIVACY

main68104-52090iMXPJ10..V202210-202401

68142CRUN, REAR DOOR GLASS, RH

main68142-K2010iMXPB10,MXPJ1#202008-202401

68152CRUN, REAR DOOR GLASS, LH

main68152-K2010iMXPB10,MXPJ1#202008-202401

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52210iMXPB10,MXPJ1#202008-202401

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52210iMXPB10,MXPJ1#202008-202401

68630CHECK ASSY, REAR DOOR

main68630-52160iMXPB10,MXPJ1#202008-202109

sub68630-52161

main68630-52161iMXPB10,MXPJ1#202110-202401

75923CTAPE, BLACK OUT, NO.2 RH

main75923-52160iMXPB10,MXPJ1#202008-202401

75924CTAPE, BLACK OUT, NO.2 LH

main75924-52150iMXPB10,MXPJ1#202008-202401

9010908295

main90109-08295

9011906983

main90119-06983

9011906984

main90119-06984

9015150026

main90151-50026

9018206009

main90182-06009

9095001604

main90950-01604

9095006105

main90950-06105

9167380616

main91673-80616

9415180600

main94151-80600

28 parts on this diagram · 3 diagrams in section
