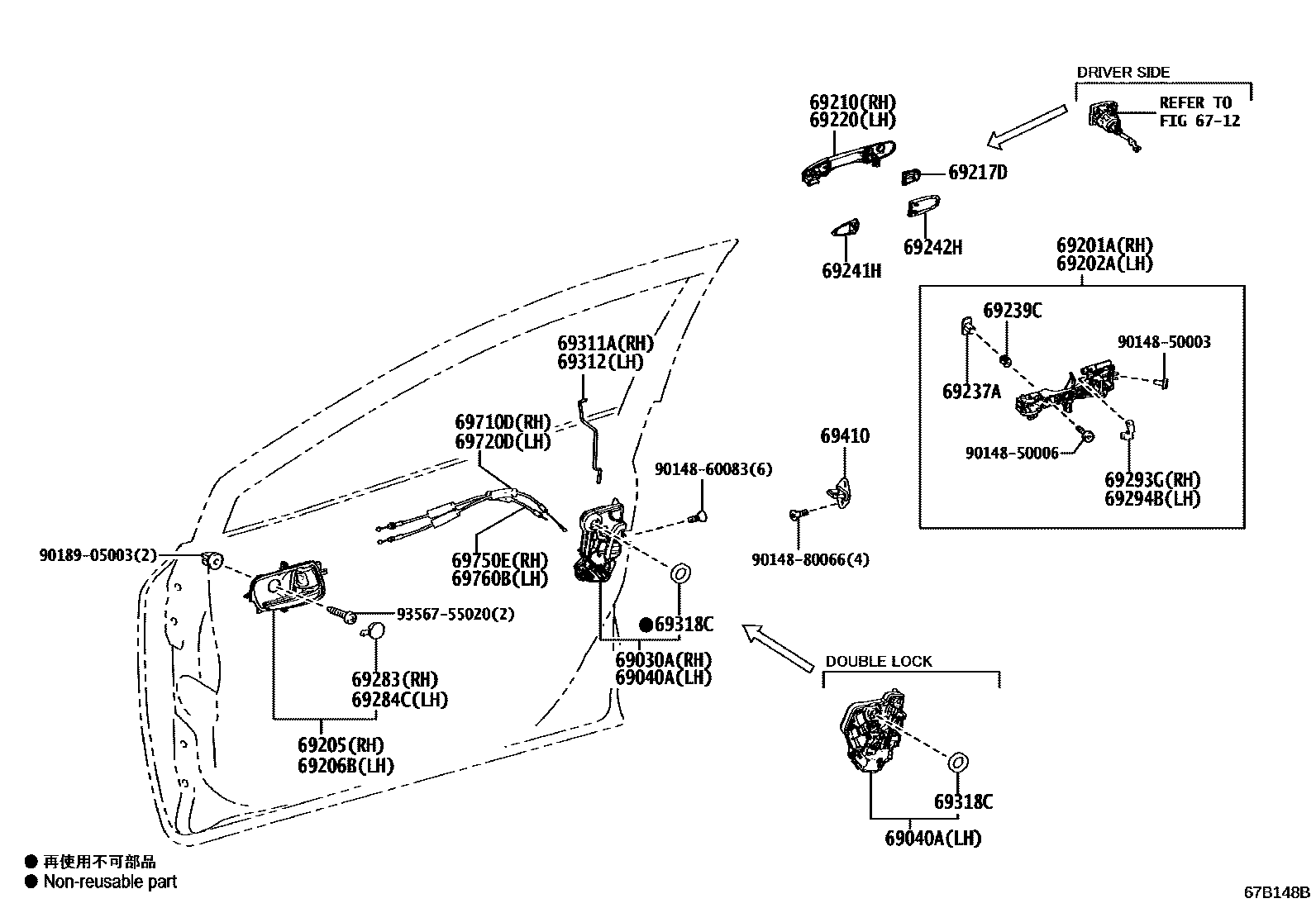

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-K0010iMXPB10,MXPJ1#202008-202209

sub69030-K0011

main69030-K0011iMXPJ1#202210-202401

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-K0011iMXPB10,MXPJ1#..N202210-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main69040-K0011iMXPJ1#202401

main69040-K0020iMXPB10,MXPJ1#202008-202209

sub69040-K0021

main69040-K0021iMXPB10,MXPJ1#..N202210-202401

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iMXPJ1#202008-202401

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMXPJ1#202008-202401

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-K0040-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main69205-K0040-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main69205-K0040-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-K0040-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

main69206-K0040-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main69206-K0040-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A3iMXPJ10..V202210-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-K0010-B3iMXPJ1#202401

SILVER ME.,1L0

main69210-K0010-B3iMXPJ10..V202210-202401

SILVER ME.,1L0 ,2TX

main69210-K0010-B6iMXPJ10..V202401

MASSIVE GRAY,1L6

main69210-K0010-B6iMXPJ10..V202401

MASSIVE GRAY,1L6 ,M23

main69210-K0010-C1iMXPJ1#202210-202401

BLACK MC.,209

main69210-K0010-D1iMXPJ10..V202210-202401

RED MC.,2PN ,3T3

main69210-K0010-E1iMXPJ1#..N202401

BEIGE,2SG ,4V6

main69210-K0010-J0iMXPJ10..V202210-202401

DK.BLUE M.M.,8W7

main69210-K0010-J2iMXPJ1#..N202401

GRAYISH BLUE,2UR ,8W2

main69211-33120-A1iMXPB10,MXPJ1#..N202208-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-33120-A3iMXPB10,MXPJ1#202008-202208

WHITE PEARL CS.,070 ,2KR

main69211-33120-B7iMXPB10,MXPJ1#..N202008-202401

SILVER ME.,1L0 ,2TX

main69211-33120-C2iMXPB10,MXPJ1#..N202008-202401

BLACK MC.,209 ,2UB

main69211-33120-D3iMXPB10,MXPJ1#..N202008-202401

RED MC.,2PN ,3T3

main69211-33120-E7iMXPB10,MXPJ1#..N202008-202401

BEIGE,2KP ,2SG ,2TV ,4V6

main69211-33120-F1iMXPB10,MXPJ1#..N202008-202401

BRASS GOLD ME.,2TY ,5C2

main69211-33120-J1iMXPB10,MXPJ1#..N202008-202401

DK.BLUE M.M.,8W7

main69211-33120-J5iMXPB10,MXPJ1#..N202008-202401

GRAYISH BLUE,2TU ,2UR ,8W2

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iMXPB10,MXPJ1#202008-202401

PASSENGER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0020-A3iMXPJ10..V202210-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-K0020-B3iMXPJ10..V202210-202401

SILVER ME.,1L0 ,2TX

main69210-K0020-B3iMXPJ1#202401

SILVER ME.,1L0

main69210-K0020-B6iMXPJ10..V202401

MASSIVE GRAY,1L6

main69210-K0020-B6iMXPJ1#..N202401

MASSIVE GRAY,1L6 ,M23

main69210-K0020-C1iMXPJ10..V202210-202401

BLACK MC.,209

main69210-K0020-D1iMXPJ10..V202210-202401

RED MC.,2PN ,3T3

main69210-K0020-E1iMXPJ1#..N202401

BEIGE,2SG ,4V6

main69210-K0020-J0iMXPJ10..V202210-202401

DK.BLUE M.M.,8W7

main69210-K0020-J2iMXPJ1#..N202401

GRAYISH BLUE,2UR ,8W2

main69211-47021-A1iMXPB10,MXPJ1#202008-202208

WHITE PEARL CS.,070 ,2KR

main69211-47021-A2iMXPB10,MXPJ1#..N202208-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-47021-C2iMXPB10,MXPJ1#..N202008-202401

BLACK MC.,209 ,2UB

main69211-47021-D1iMXPB10,MXPJ1#..N202008-202401

RED MC.,2PN ,3T3

main69211-47021-E8iMXPB10,MXPJ1#..N202008-202401

BEIGE,2KP ,2SG ,2TV ,4V6

main69211-47021-F1iMXPB10,MXPJ1#..N202008-202401

BRASS GOLD ME.,2TY ,5C2

main69211-47021-J0iMXPB10,MXPJ1#..N202008-202401

DK.BLUE M.M.,8W7

main69211-47021-P0iMXPB10,MXPJ1#..N202008-202401

SILVER ME.,1L0 ,2TX

main69211-47021-R0iMXPB10,MXPJ1#..N202008-202401

GRAYISH BLUE,2TU ,2UR ,8W2

69237ANUT, FRONT DOOR HANDLE

main69237-62010iMXPB10,MXPJ1#202008-202401

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMXPB10,MXPJ1#202008-202401

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMXPB10,MXPJ1#202008-202401

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iMXPB10,MXPJ1#202008-202401

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C1iMXPJ10..V202210-202401

BLACK,TRIM2#

main69283-52010-C1iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main69283-52010-C1iMXPJ1#..N202401

BLACK,TRIM2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-52010-C1iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main69283-52010-C1iMXPJ10..V202210-202401

BLACK,TRIM2#

main69283-52010-C1iMXPJ1#..N202401

BLACK,TRIM2#,4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMXPB10,MXPJ1#202008-202401

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMXPB10,MXPJ1#202008-202401

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52260iMXPB10,MXPJ1#202008-202401

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52230iMXPB10,MXPJ1#202008-202401

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iMXPB10,MXPJ1#202008-202401

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iMXPB10,MXPJ1#202008-202401

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-K0010iMXPB10,MXPJ1#202008-202009

sub69710-K0011

main69710-K0011iMXPB10,MXPJ1#202009-202401

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-K0010iMXPB10,MXPJ1#202008-202009

sub69710-K0011

main69710-K0011iMXPB10,MXPJ1#202009-202401

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-K0010iMXPB10,MXPJ1#202008-202009

sub69750-K0011

main69750-K0011iMXPB10,MXPJ1#202009-202401

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-K0010iMXPB10,MXPJ1#202008-202009

sub69750-K0011

main69750-K0011iMXPB10,MXPJ1#202009-202401

9014850003

main90148-50003

9014850006

main90148-50006

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

32 parts on this diagram · 1 diagram in section
