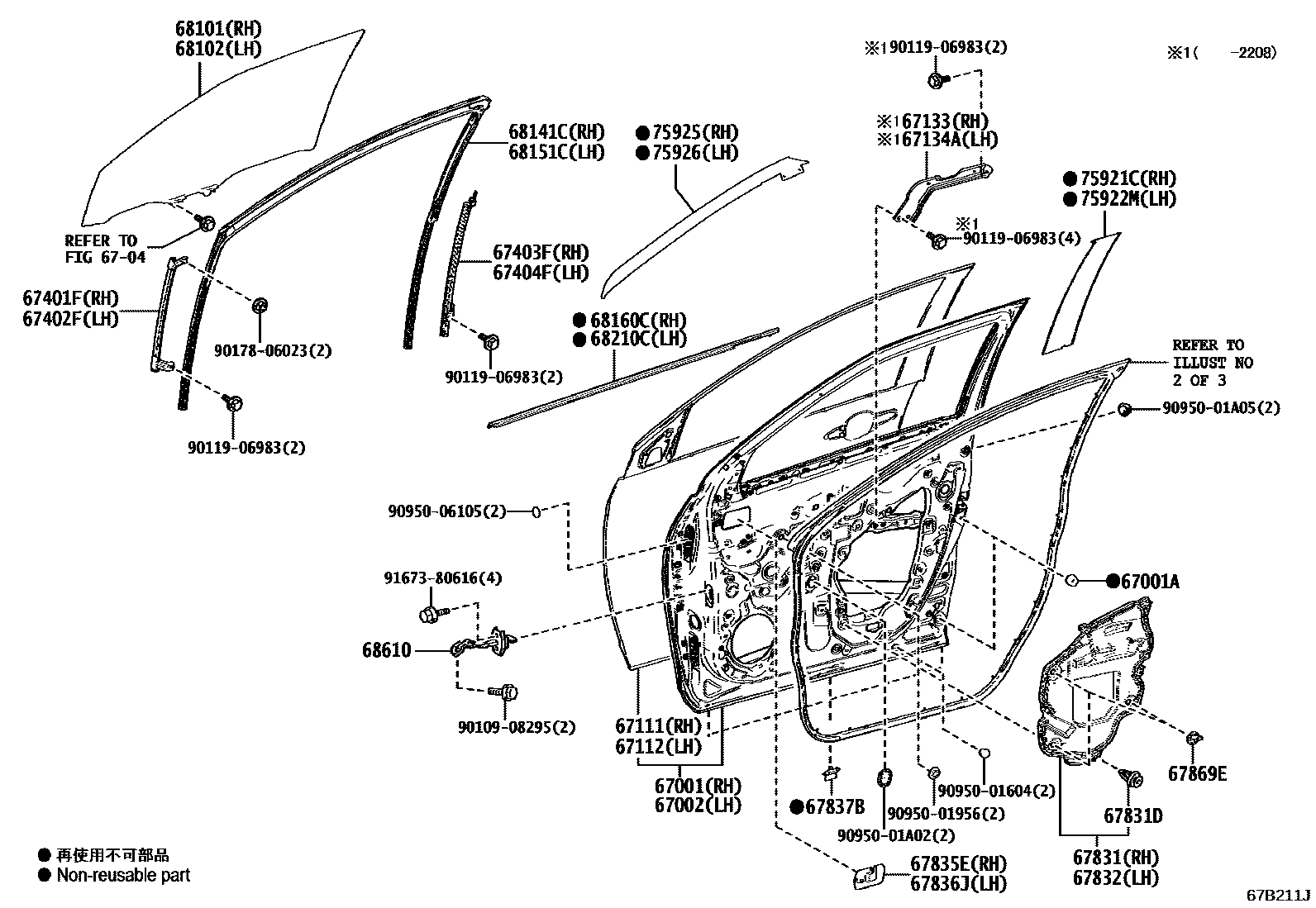

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52550iMXPB10,MXPJ1#202008-202208

sub67001-52551

main67001-52551iMXPB10,MXPJ1#202208-202401

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMXPB10,MXPJ1#202008-202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52580iMXPB10,MXPJ1#202008-202208

sub67002-52581

main67002-52581iMXPB10,MXPJ1#202208-202401

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-K2010iMXPB10,MXPJ1#202008-202401

67112PANEL, FRONT DOOR, OUTER LH

main67112-K2010iMXPB10,MXPJ1#202008-202401

67133EXTENSION, FRONT DOOR OUTSIDE PANEL REINFOCEMENT, REAR RH

main67133-52061iMXPB10,MXPJ1#202008-202208

67134AEXTENSION, FRONT DOOR OUTSIDE PANEL REINFOCEMENT, REAR LH

main67134-52071iMXPB10,MXPJ1#202008-202208

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-K2010iMXPB10,MXPJ1#202008-202401

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-K2010iMXPB10,MXPJ1#202008-202401

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-K2020iMXPB10,MXPJ1#202008-202401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-K2010iMXPB10,MXPJ1#202008-202401

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-K0010iMXPB10,MXPJ1#202008-202401

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iMXPB10,MXPJ1#202008-202401

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-K0010iMXPB10,MXPJ1#202008-202401

67835ESEAL, FRONT DOOR SERVICE HOLE, NO.2 RH

main67835-52010iMXPB10,MXPJ1#202008-202401

67836JSEAL, FRONT DOOR SERVICE HOLE, NO.2 LH

main67836-52030iMXPB10,MXPJ1#202008-202401

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060iMXPB10,MXPJ1#202008-202401

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iMXPB10,MXPJ1#202008-202401

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52140iMXPB10,MXPJ1#202008-202401

main68101-52380iMXPJ1#202401

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-52070iMXPB10,MXPJ1#202008-202401

main68102-52310iMXPJ1#202401

68141CRUN, FRONT DOOR GLASS, RH

main68141-52370iMXPB10,MXPJ1#202008-202401

68151CRUN, FRONT DOOR GLASS, LH

main68151-52320iMXPB10,MXPJ1#202008-202401

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52250iMXPB10,MXPJ1#202008-202401

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52250iMXPB10,MXPJ1#202008-202401

68610CHECK ASSY, FRONT DOOR

main68610-52200iMXPB10,MXPJ1#202008-202401

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52170iMXPB10,MXPJ1#202008-202401

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52160iMXPB10,MXPJ1#202008-202401

75925TAPE, BLACK OUT, NO.3 RH

main75935-52010iMXPB10,MXPJ1#202008-202401

75926TAPE, BLACK OUT, NO.3 LH

main75936-52010iMXPJ1#202008-202401

9010908295

main90109-08295

9011906983

main90119-06983

9017806023

main90178-06023

9095001604

main90950-01604

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095006105

main90950-06105

9167380616

main91673-80616

39 parts on this diagram · 3 diagrams in section
