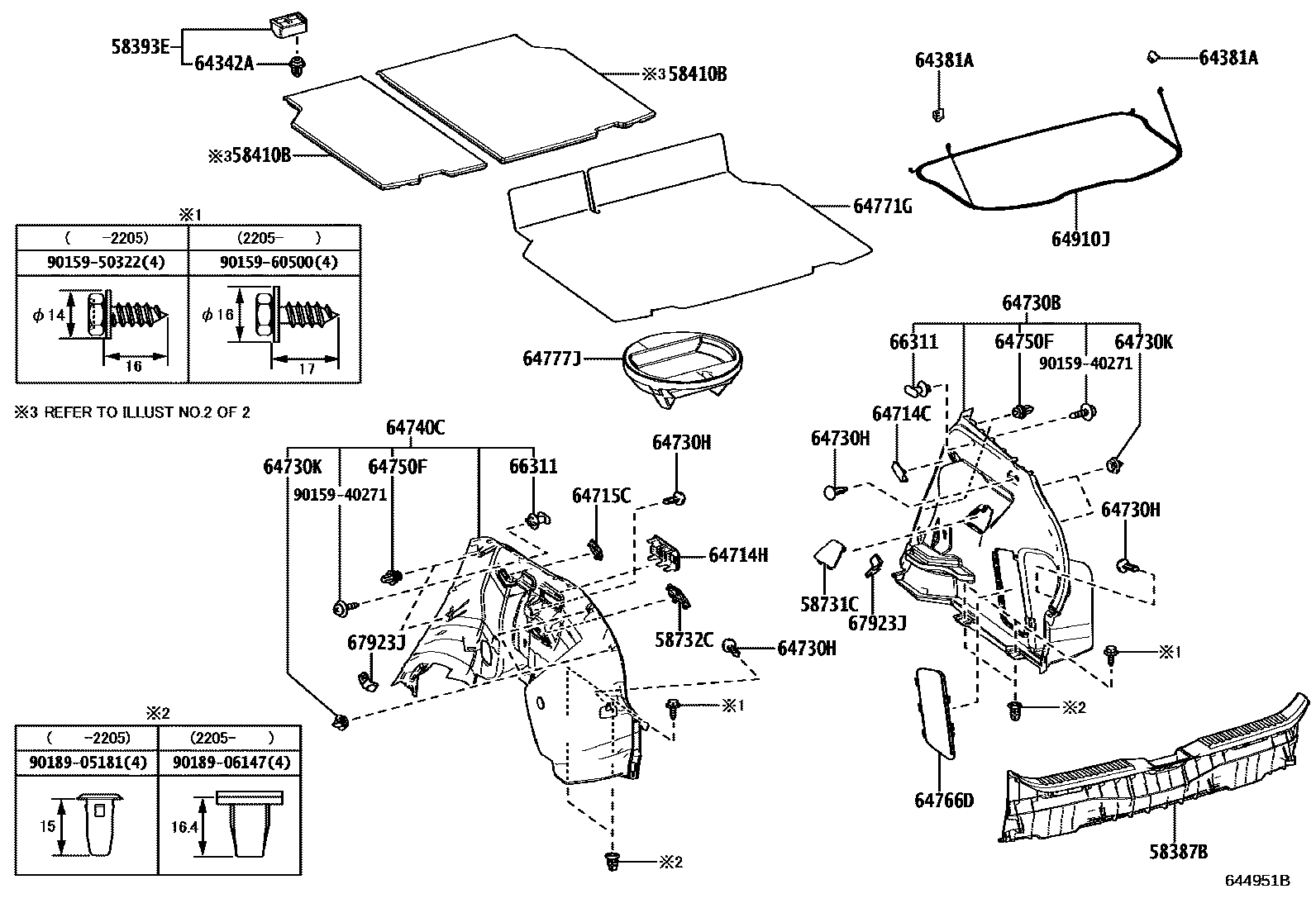

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58387BPLATE, REAR FLOOR FINISH

main58387-52060-C0iMXPJ1#..N202401

BLACK,TRIM2#

58393ESUPPORT, DECK BOARD SET

main58393-52010-C0iMXPB10,MXPJ10..N202008-202401

DECK CARPET & MAT-SEPARATE DECK BOARD,BLACK,TRIM2#,4#,6#

58410BBOARD ASSY, DECK

main58410-52190-B0iMXPJ15202008-202401

DARK GRAY,TRIM2#,4#,6#

main58410-52150-B0iMXPB10,MXPJ10..N202008-202301

DECK CARPET & MAT-SEPARATE DECK BOARD,DARK GRAY,TRIM2#,4#,6#,RH

main58410-52151-B0iMXPB10,MXPJ10..N202301-202401

DECK CARPET & MAT-SEPARATE DECK BOARD,DARK GRAY,TRIM2#,RH

main58410-52160-B0iMXPJ10..V202210-202301

DECK CARPET & MAT-SEPARATE DECK BOARD,DARK GRAY,TRIM2#,LH

main58410-52161-B0iMXPB10,MXPJ10..N202301-202401

DECK CARPET & MAT-SEPARATE DECK BOARD,DARK GRAY,TRIM2#,LH

58731CCAP, REAR ABSORBER

main58731-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58732-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

64342ACLIP

main71769-47020iMXPB10,MXPJ10202008-202103

DECK CARPET & MAT-SEPARATE DECK BOARD

main90467-10188iMXPB10,MXPJ10202104-202401

DECK CARPET & MAT-SEPARATE DECK BOARD

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010×2iMXPB10,MXPJ1#202008-202401

64714CCOVER, DECK SIDE TRIM, RH

main62566-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#

64714HCOVER, DECK SIDE TRIM, NO.1

main64714-42050-C0iMXPJ1#..N202401

BLACK,TRIM2#

64715CCOVER, DECK SIDE TRIM, LH

main62567-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52750-C0iMXPJ10..N202401

BLACK,TRIM2#

main64730-52760-C0iMXPJ15202401

BLACK,TRIM2#,4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-05164-C7×4iMXPJ1#..N202401

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09240×4iMXPB10,MXPJ1#202008-202401

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52870-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main64740-52880-C0iMXPJ15202008-202401

BLACK,TRIM2#,4#,6#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×4iMXPB10,MXPJ1#202008-202401

64766DCOVER, DECK SIDE TRIM JACK

main64766-52050-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

64771GCOVER, SPARE WHEEL

main64771-52300-B0iMXPB10,MXPJ10..N202008-202401

DARK GRAY,TRIM2#,4#,6#

64777JCUSHION, SPARE WHEEL

main64777-10020iMXPB10,MXPJ10202008-202401

64910JCOVER ASSY, TONNEAU

main64910-52090iMXPB10,MXPJ1#202008-202401

66311HOOK, ROPE

main66311-10010-C0×2iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

67923JCLAMP(FOR DECK TRIM SIDE PANEL)

main67923-52240×2iMXPB10,MXPJ1#202008-202401

9015940271

main90159-40271

9015950322

main90159-50322

9015960500

main90159-60500

9018905181

main90189-05181

9018906147

main90189-06147

26 parts on this diagram · 3 diagrams in section
