INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main62111-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

main62111-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-K0020-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main62112-K0020-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main62112-K0020-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMXPB10,MXPJ1#¥80202008-202401

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161iMXPB10,MXPJ1#¥90202008-202401

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52170iMXPJ1#202008-202401

62170BBOLT, W/WASHER

main91673-80616iMXPB10,MXPJ1#¥60202008-202401

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52170iMXPB10,MXPJ1#202008-202401

62211GARNISH, FRONT PILLAR, RH

main62211-52400-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62211-52400-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62211-52400-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62211-52400-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main62211-52400-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

main62211-52400-C0iMXPJ1#..N202401

BLACK,TRIM20,41

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iMXPB10,MXPJ1#¥90202008-202401

62212GARNISH, FRONT PILLAR, LH

main62212-52410-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62212-52410-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62212-52410-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62212-52410-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

main62212-52410-C0iMXPJ10..V202401

BLACK,TRIM20,41

main62212-52410-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMXPB10,MXPJ1#¥140202008-202401

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52300iMXPJ1#¥5,400202407

main62311-K2010iMXPB10,MXPJ1#¥6,000202008-202406

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52260iMXPJ1#¥5,400202407

main62312-K2010iMXPJ1#¥6,000202008-202406

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-K2010iMXPJ1#¥5,200202008-202401

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-K2010iMXPB10,MXPJ1#¥5,200202008-202401

62410BCLIP

main90467-10216iMXPB10,MXPJ1#¥100202008-202401

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52240-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62411-52240-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62411-52240-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62411-52240-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main62411-52240-C0iMXPJ1#..N202401

BLACK,TRIM20,41

main62411-52240-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52240-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62412-52240-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62412-52240-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62412-52240-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main62412-52240-C0iMXPJ1#..N202401

BLACK,TRIM20,41

main62412-52240-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main62413-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main62413-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main62414-K0010-C0iMXPJ10..V202401

BLACK,TRIM2#,4#

main62414-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52460-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62471-52460-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62471-52460-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62471-52460-C0iMXPJ10..V202401

BLACK,TRIM20,41

main62471-52460-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

main62471-52460-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-10167iMXPJ1#¥90202008-202401

62471MCLIP

main90467-10167iMXPJ1#¥90202008-202401

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52530-B0iMXPB10,MXPJ1#..N202205-202401

LT.GRAY,TRIM40,6#

main62472-52530-B0iMXPJ1#..N202401

LT.GRAY,TRIM20,40

main62472-52530-B0iMXPB10,MXPJ1#202008-202205

LT.GRAY,TRIM4#,6#

main62472-52530-C0iMXPJ1#..N202210-202401

BLACK,TRIM2#

main62472-52530-C0iMXPJ10..V202401

BLACK,TRIM20,41

main62472-52530-C0iMXPB10,MXPJ1#..N202205-202401

BLACK,TRIM2#,41

62597DCLIP

main90467-18017iMXPB10,MXPJ1#¥180202008-202401

62638BCLIP

main90467-10161iMXPB10,MXPJ1#¥90202008-202401

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150iMXPJ1#¥170202008-202401

67771HRETAINER, DOOR TRIM

main67771-28150iMXPB10,MXPJ1#¥100202008-202401

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67913-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67913-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-K0010-C0iMXPB10,MXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67914-K0010-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67914-K0010-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-K0010-C0iMXPB10202008-202401

BLACK,TRIM2#,4#,6#

main67917-K0020-C0iMXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67917-K0020-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67917-K0020-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-K0010-C0iMXPB10202008-202401

BLACK,TRIM2#,4#,6#

main67918-K0020-C0iMXPJ1#..N202008-202401

BLACK,TRIM2#,4#,6#

main67918-K0020-C0iMXPJ10..V202210-202401

BLACK,TRIM2#

main67918-K0020-C0iMXPJ1#..N202401

BLACK,TRIM2#,4#

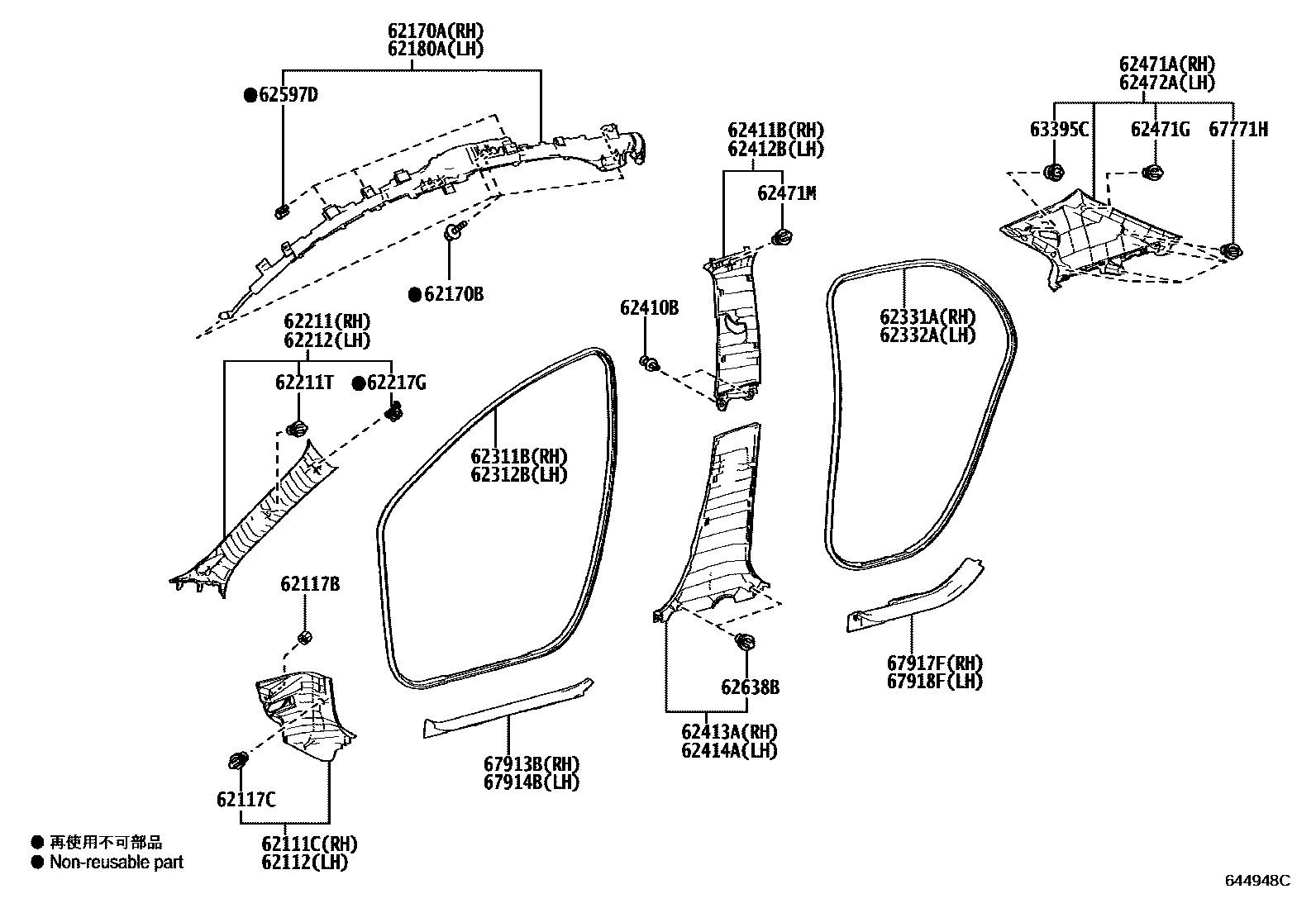

32 parts on this diagram · 1 diagram in section
