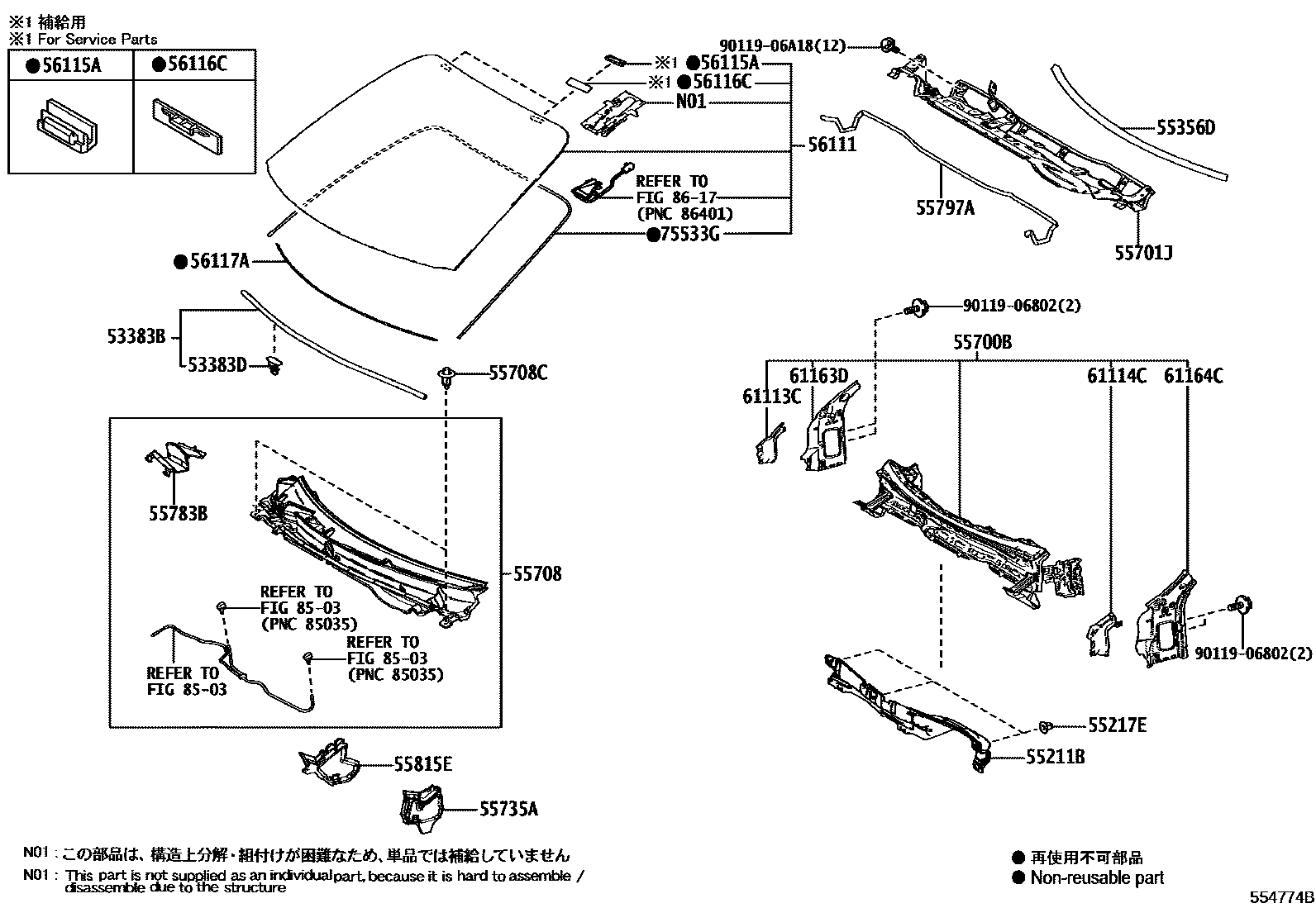

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52190iMXPB10,MXPJ1#202008-202401

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7iMXPJ1#202401

55211BSILENCER, FRONT PANEL

main55211-K0050iMXPJ1#202401

55217ERETAINER, DASH PANEL SILENCER

main55217-51010×3iMXPJ1#202401

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-K2010iMXPJ1#202401

55700BCOWL ASSY

main55700-52440iMXPJ1#202401

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52420iMXPB10,MXPJ1#202008-202010

main55701-52470iMXPJ1#202401

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52440iMXPB10,MXPJ1#202008-202207

main55708-52441iMXPB10,MXPJ1#202208-202401

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7×2iMXPJ1#202401

BLACK

sub90467-07041

sub90467-A0016

55735APLATE, WATER GUARD, LH

main55735-52160iMXPJ1#202401

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52380iMXPB10,MXPJ1#202008-202401

55797ASEAL, COWL WATER EXTRACT

main55797-K0010iMXPB10,MXPJ1#202008-202401

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52090iMXPB10,MXPJ1#202008-202401

56111GLASS, WINDSHIELD

main56101-52Z50iMXPJ1#202401

main56101-52F80supersedes 56101-52F70iMXPB10,MXPJ1#202008-202401

HEAD-UP DISPLAY-WITH

main56101-5C100iMXPJ10..V202401-202503

NEW ZEALAND SPEC&HEAD-UP DISPLAY-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMXPB10,MXPJ1#202008-202401

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXPB10,MXPJ1#202008-202401

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140supersedes 56117-50140iMXPJ10..V202401

L=1234,HIGH PACKAGE&HEAD-UP DISPLAY-WITH

61113CPANEL, SIDE, INNER RH

main61113-K0010iMXPB10,MXPJ1#202008-202401

61114CPANEL, SIDE, INNER LH

main61114-K0010iMXPB10,MXPJ1#202008-202401

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-52050iMXPB10,MXPJ1#202008-202401

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-52060iMXPB10,MXPJ1#202008-202401

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-52320iMXPB10,MXPJ1#202008-202401

8503

8617

9011906802

main90119-06802

9011906A18

main90119-06A18

26 parts on this diagram · 1 diagram in section
