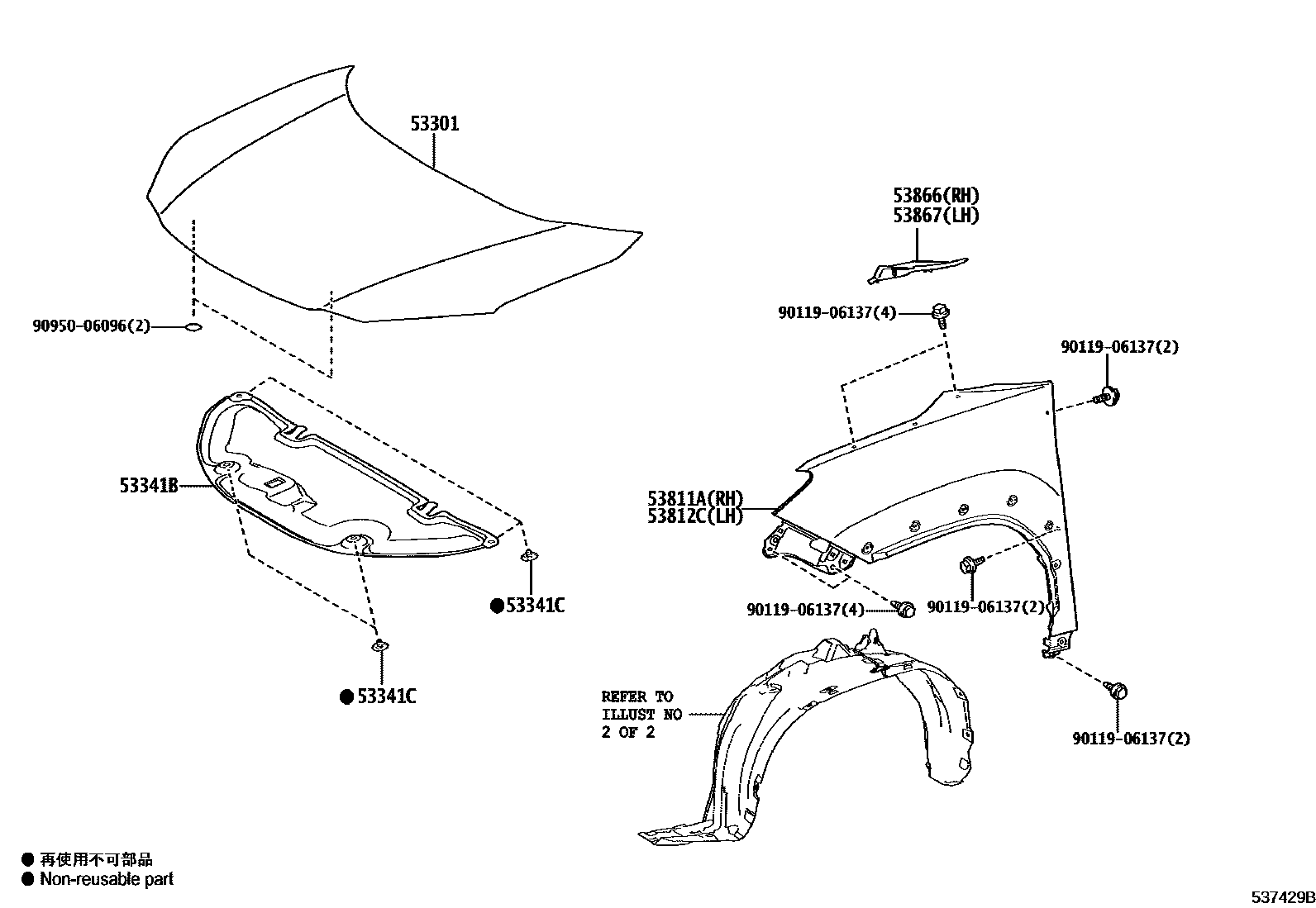

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52430iMXPB10,MXPJ1#202008-202401

53341BINSULATOR, HOOD

main53341-52240iMXPB10,MXPJ1#202008-202401

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×4iMXPB10,MXPJ1#202008-202401

53811APANEL, FRONT FENDER, RH

main53811-K2010iMXPB10,MXPJ1#202008-202401

53812CPANEL, FRONT FENDER, LH

main53812-K2010iMXPB10,MXPJ1#202008-202401

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52200iMXPB10,MXPJ1#202008-202308

main53866-52201iMXPB10,MXPJ1#202309-202401

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52210iMXPB10,MXPJ1#202008-202308

main53867-52211iMXPB10,MXPJ1#202309-202401

9011906137

main90119-06137

9095006096

main90950-06096

9 parts on this diagram · 2 diagrams in section
