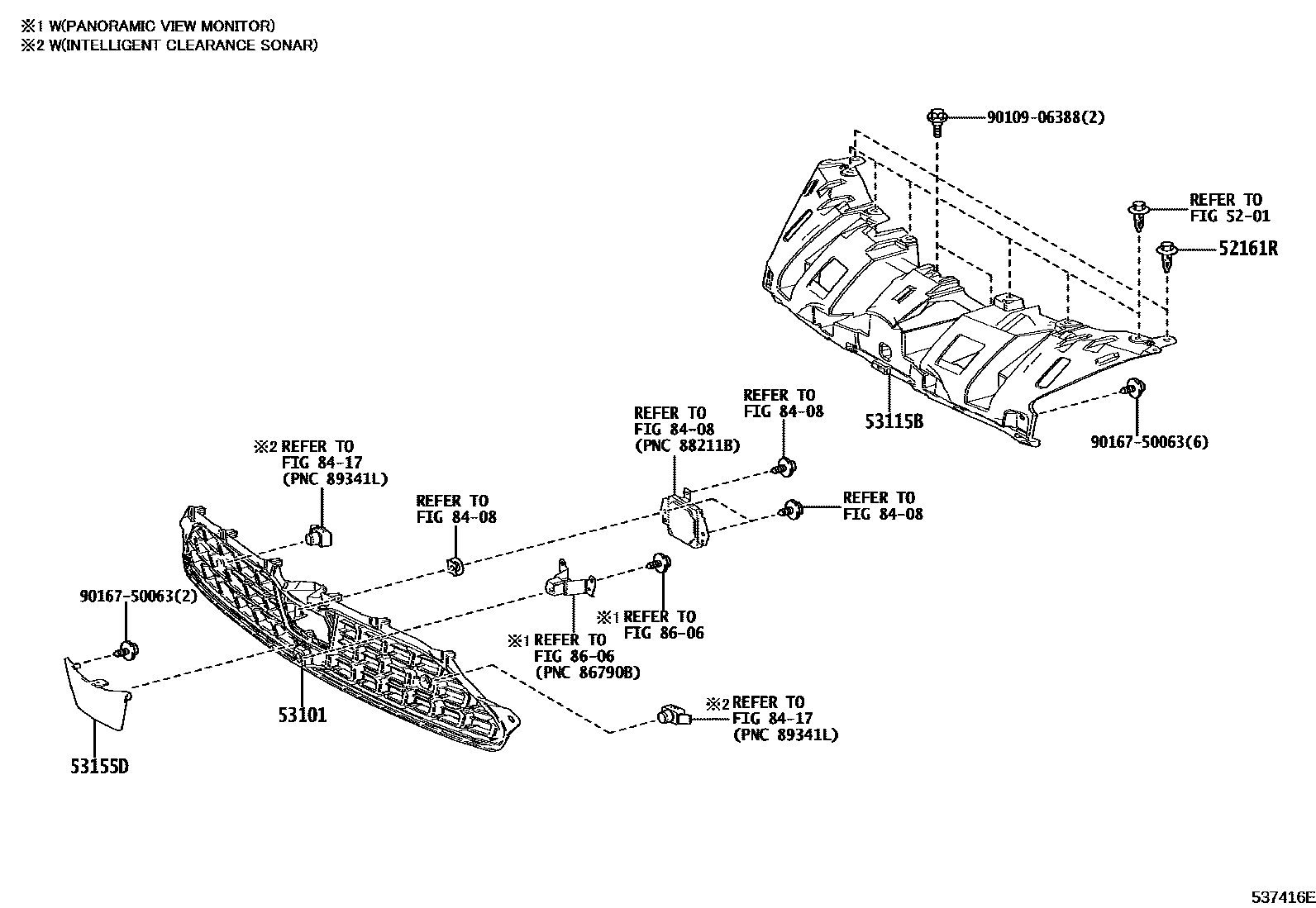

RADIATOR GRILLE
5201
52161RPIECE, FRONT BUMPER
sub52161-0K040
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,HIGH PACKAGE
NO PAINT REQ.,HIGH PACKAGE&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,HIGH PACKAGE&BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,HIGH PACKAGE&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,HIGH PACKAGE&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&HEADLAMP-LED&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SINGAPORE SPEC&BLIND SPOT MONITOR-WITH(*BSM)
NO PAINT REQ.,NEW ZEALAND SPEC&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.,MID PACKAGE&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.,MID PACKAGE&HEADLAMP-LED&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.,NEW ZEALAND SPEC&HIGH PACKAGE&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.,HIGH PACKAGE&HEADLAMP-LED&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.,HIGH PACKAGE&BLIND SPOT MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
NO PAINT REQ.
53115BBRACKET, RADIATOR GRILLE
8408
8417
8606
9010906388
main90109-06388
9016750063
main90167-50063
10 parts on this diagram · 2 diagrams in section
