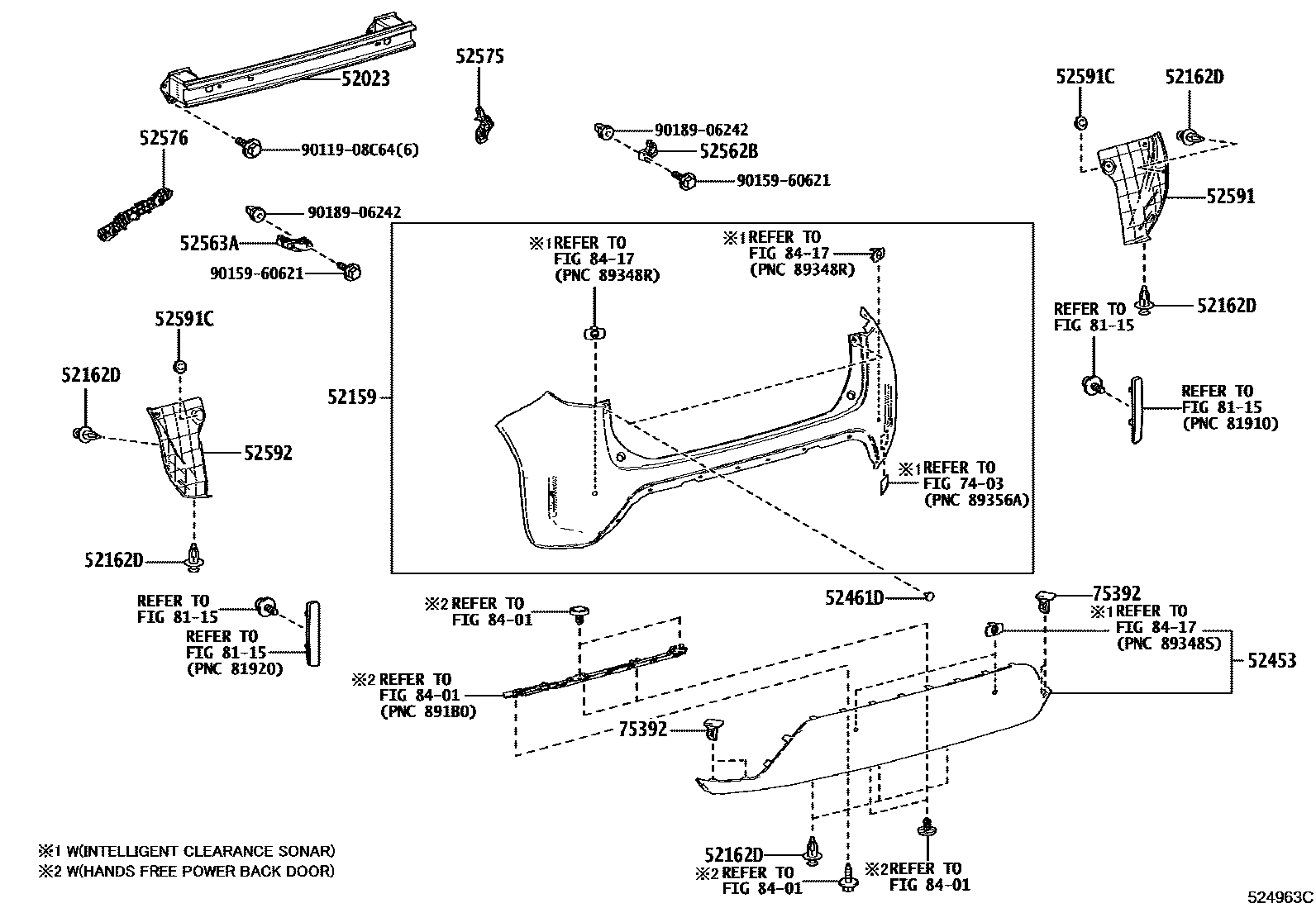

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0W010i202008-202401

52159COVER, REAR BUMPER

main52159-5C906i202210-202401

PAINT REQ.

main52159-5C901i202008-202010

PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

sub52159-5C906

52162DPIECE, REAR BUMPER

main52161-16010i202008-202401

sub52161-0K040

52453GUARD, REAR BUMPER, CENTER

main52453-52100i202205-202401

"ADVENTURE"&HANDS FREE POWER BACK DOOR-WITH

main52453-52902i202008-202208

HANDS FREE POWER BACK DOOR-WITH&BACK MONITOR-WITH(*BGM)&BLIND SPOT MONITOR-WITH

main52453-52903i202208-202401

"ADVENTURE"&BLIND SPOT MONITOR-WITH

52461DCUSHION, REAR BUMPER

main52461-52020i202008-202401

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52100i202008-202401

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52060i202008-202401

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52230i202008-202401

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52210i202008-202401

52591SEAL, REAR BUMPER SIDE, RH

main52591-52422i202202-202401

52591CCLIP, REAR BUMPER SIDE SEAL

main90467-06121i202008-202012

main90467-06206-C0i202101-202401

BLACK

52592SEAL, REAR BUMPER SIDE, LH

main52592-52412i202202-202401

7403

75392RETAINER, OUTSIDE MOULDING

main75392-35220i202008-202401

8115

8401

8417

9011908C64

main90119-08C64

9015960621

main90159-60621

9018906242

main90189-06242

20 parts on this diagram · 3 diagrams in section
