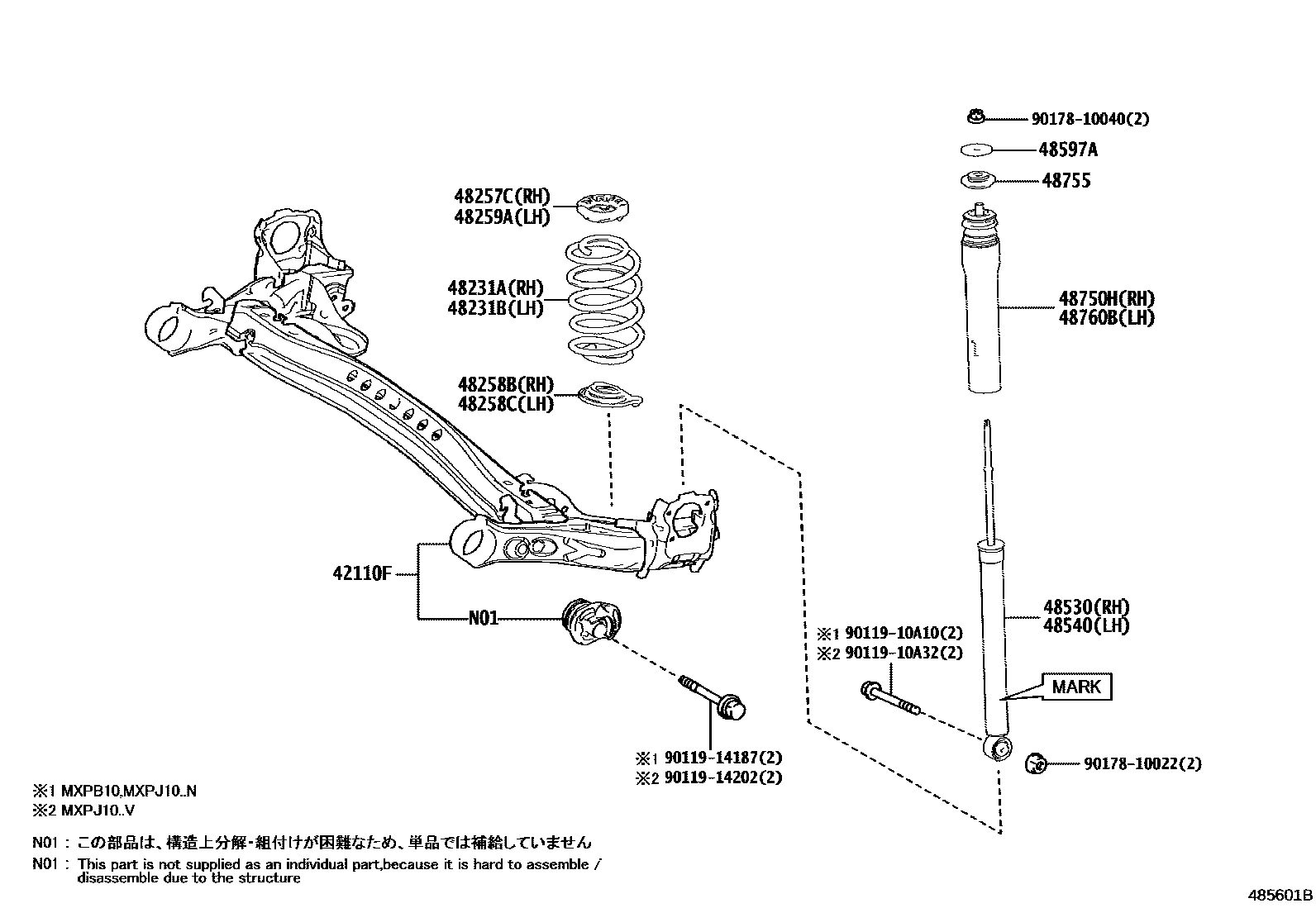

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-52320iMXPJ10202401

48231ASPRING, COIL, REAR RH

main48231-52N10iMXPJ10..V202210-202401

main48231-52N20iMXPB10202008-202401

main48231-52N30iMXPJ10..N202008-202401

main48231-52N60iMXPJ15202008-202401

48231BSPRING, COIL, REAR LH

main48231-52N10iMXPJ10..V202210-202401

main48231-52N20iMXPB10202008-202401

main48231-52N30iMXPJ10..N202401

main48231-52N60iMXPJ15202008-202401

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iMXPJ10202401

main48257-K0020iMXPJ15202401

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-K0010iMXPJ10202401

main48258-K0020iMXPJ15202401

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-K0010iMXPB10,MXPJ10202008-202401

main48258-K0020iMXPJ15202008-202401

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iMXPJ10202401

main48257-K0020iMXPJ15202008-202401

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-52R10iMXPB10202008-202401

MARK 48530-52R10

main48530-52R20iMXPJ10..N202008-202401

MARK 48530-52R20

main48530-52R60iMXPJ15202008-202401

MARK 48530-52R60

main48530-52T50iMXPJ10..V202210-202401

MARK 48530-52T50

main48530-52U50iMXPJ10..N202401

MARK 48530-52U50

main48530-52U70iMXPJ15202401

MARK 48530-52U70

main48530-52U90iMXPJ10..V202401

MARK 48530-52U90

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-52R10iMXPB10202008-202401

MARK 48530-52R10

main48530-52R20iMXPJ10..N202008-202401

MARK 48530-52R20

main48530-52R60iMXPJ15202008-202401

MARK 48530-52R60

main48530-52T50iMXPJ10..V202210-202401

MARK 48530-52T50

main48530-52U50iMXPJ10..N202401

MARK 48530-52U50

main48530-52U70iMXPJ15202401

MARK 48530-52U70

main48530-52U90iMXPJ10..V202401

MARK 48530-52U90

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10138×2iMXPB10,MXPJ1#202008-202401

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-K0010iMXPJ10202401

main48750-K0020iMXPJ15202008-202401

48755SUPPORT, REAR SUSPENSION

main48755-K0011×2iMXPB10,MXPJ1#202008-202401

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-K0010iMXPB10,MXPJ10202008-202401

main48750-K0020iMXPJ15202401

9011910A10

main90119-10A10

9011910A32

main90119-10A32

9011914187

main90119-14187

9011914202

main90119-14202

9017810022

main90178-10022

9017810040

main90178-10040

19 parts on this diagram · 2 diagrams in section
