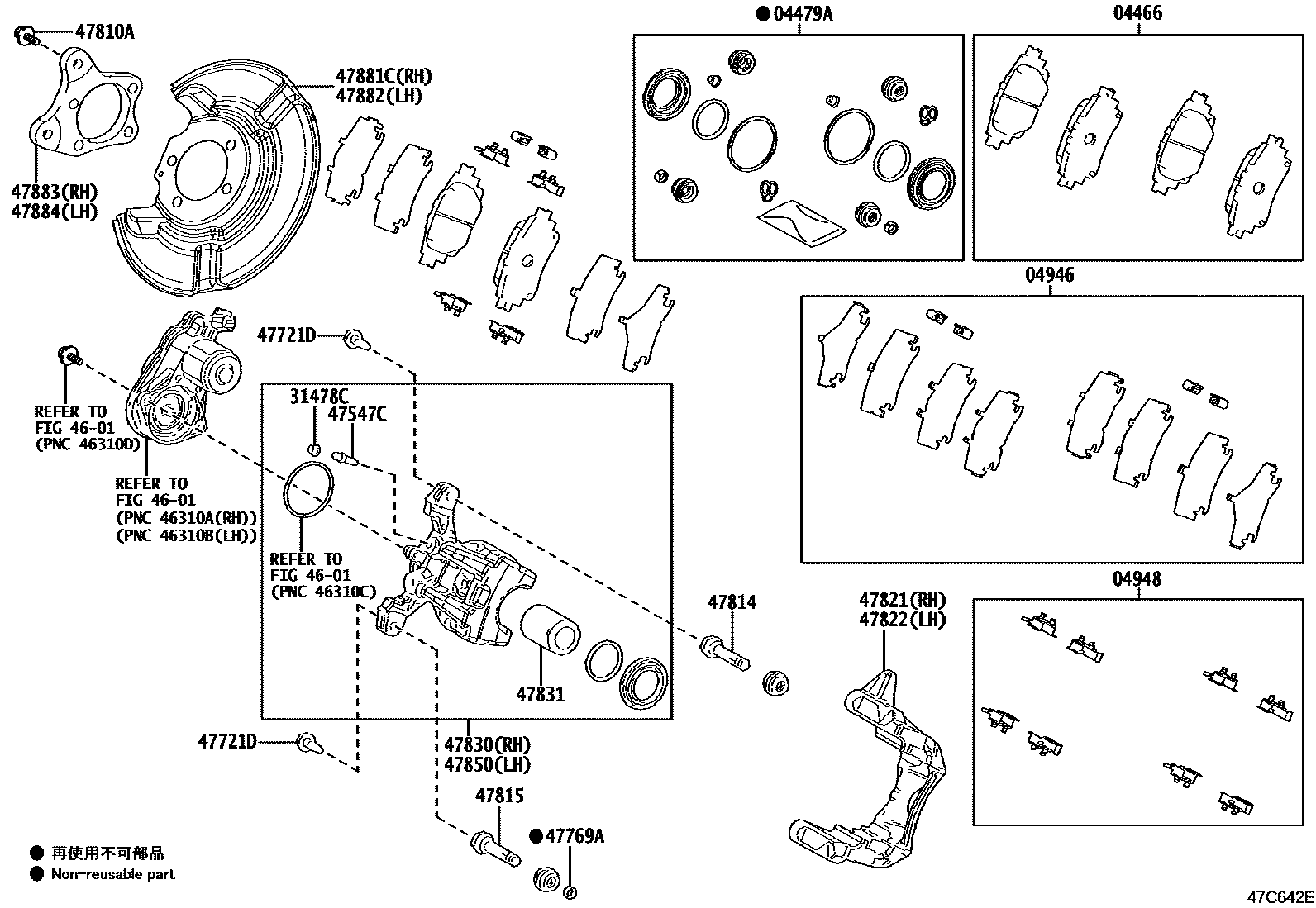

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10011iMXPJ15202008-202401

MARK AK NS554

main04466-52210iMXPJ10202008-202401

MARK NBK D6361

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iMXPB10,MXPJ1#202008-202401

main04479-52290iMXPB10,MXPJ1#202211-202308

sub04479-10091

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iMXPJ15202008-202401

main04946-52130iMXPB10,MXPJ10202008-202401

04948FITTING KIT, DISC BRAKE, REAR

main04948-52060iMXPB10,MXPJ10202008-202401

main04948-58010iMXPJ15202008-202401

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMXPB10,MXPJ1#202008-202401

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMXPB10,MXPJ1#202008-202401

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iMXPB10,MXPJ1#202008-202401

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iMXPB10,MXPJ1#202008-202401

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iMXPB10,MXPJ1#202008-202401

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iMXPB10,MXPJ1#202008-202401

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iMXPB10,MXPJ1#202008-202401

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iMXPJ15202008-202401

main47821-52240iMXPB10,MXPJ10..N202008-202401

main47821-52290iMXPJ10..V202210-202401

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iMXPJ15202008-202401

main47822-52240iMXPJ10..N202008-202401

main47822-52290iMXPJ10..V202210-202401

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52240iMXPB10,MXPJ10..N202212-202308

sub47850-12280

main47830-52260iMXPJ15202008-202401

main47830-52290iMXPJ10..V202210-202401

main47850-12280iMXPB10,MXPJ10..N202008-202401

47831PISTON, REAR DISC BRAKE

main47831-10030iMXPJ1#202008-202401

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-12280iMXPJ10..N202008-202401

main47850-52240iMXPB10,MXPJ10..N202212-202308

sub47830-12280

main47850-52260iMXPJ15202008-202401

main47850-52290iMXPJ10..V202210-202401

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-52070iMXPB10,MXPJ10202008-202401

main47881-52080iMXPJ15202008-202401

47882COVER, DISC BRAKE DUST, REAR LH

main47882-52070iMXPJ10202008-202401

main47882-52080iMXPJ15202008-202401

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52030iMXPB10,MXPJ10202008-202401

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-52030iMXPB10,MXPJ10202008-202401

21 parts on this diagram · 2 diagrams in section
