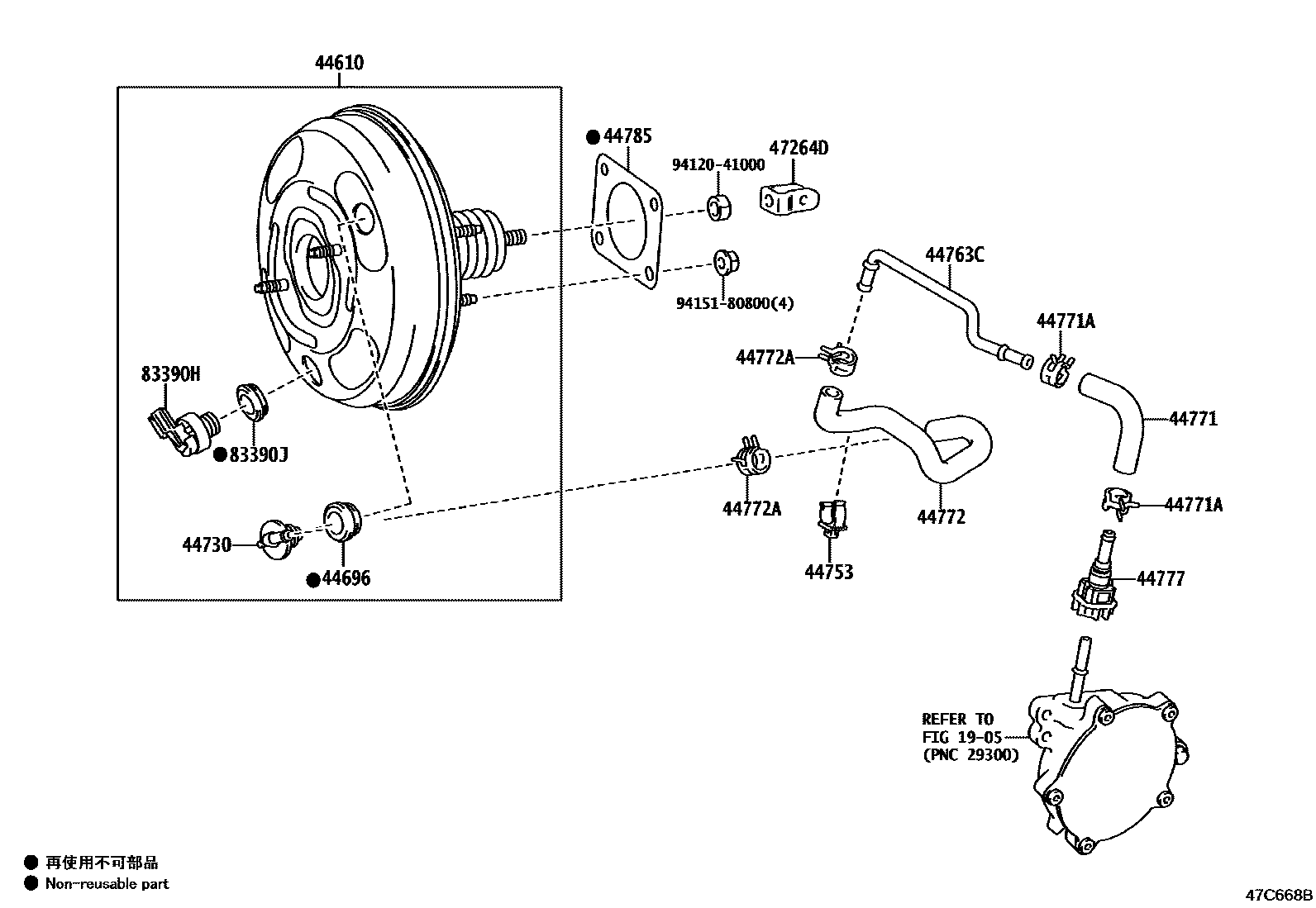

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-52J40iMXPB10202008-202401

44696GROMMET, CHECK VALVE

main90480-24439iMXPB10202008-202401

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXPB10202008-202401

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iMXPB10202008-202401

44763CTUBE, HOSE TO HOSE, NO.2

main44763-K0060iMXPB10202008-202401

44771HOSE, VACUUM TUBE CONNECTOR

main44771-K0030iMXPB10202008-202401

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main90467-16014iMXPB10202008-202401

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52350iMXPB10202008-202401

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMXPB10202008-202401

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-K0010iMXPB10202008-202401

44785GASKET, BRAKE BOOSTER

main44785-12040iMXPB10202008-202401

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMXPB10202008-202401

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXPB10202008-202401

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iMXPB10202008-202401

9412041000

main94120-41000

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
