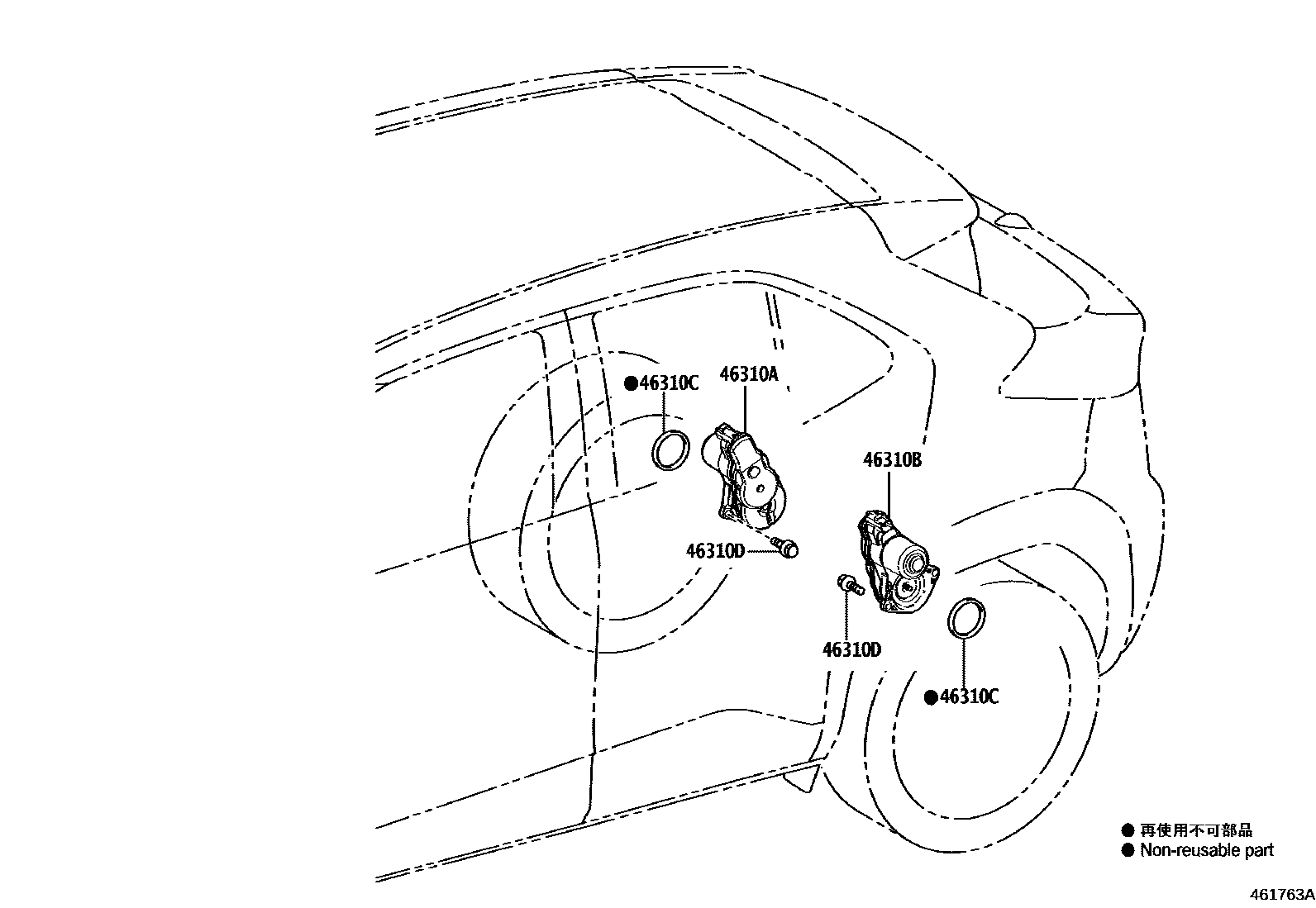

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010iMXPB10,MXPJ1#202008-202401

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010iMXPB10,MXPJ1#202008-202401

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005iMXPB10,MXPJ1#202008-202401

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702iMXPB10,MXPJ1#202008-202401

sub90016-AA703

4 parts on this diagram · 1 diagram in section
