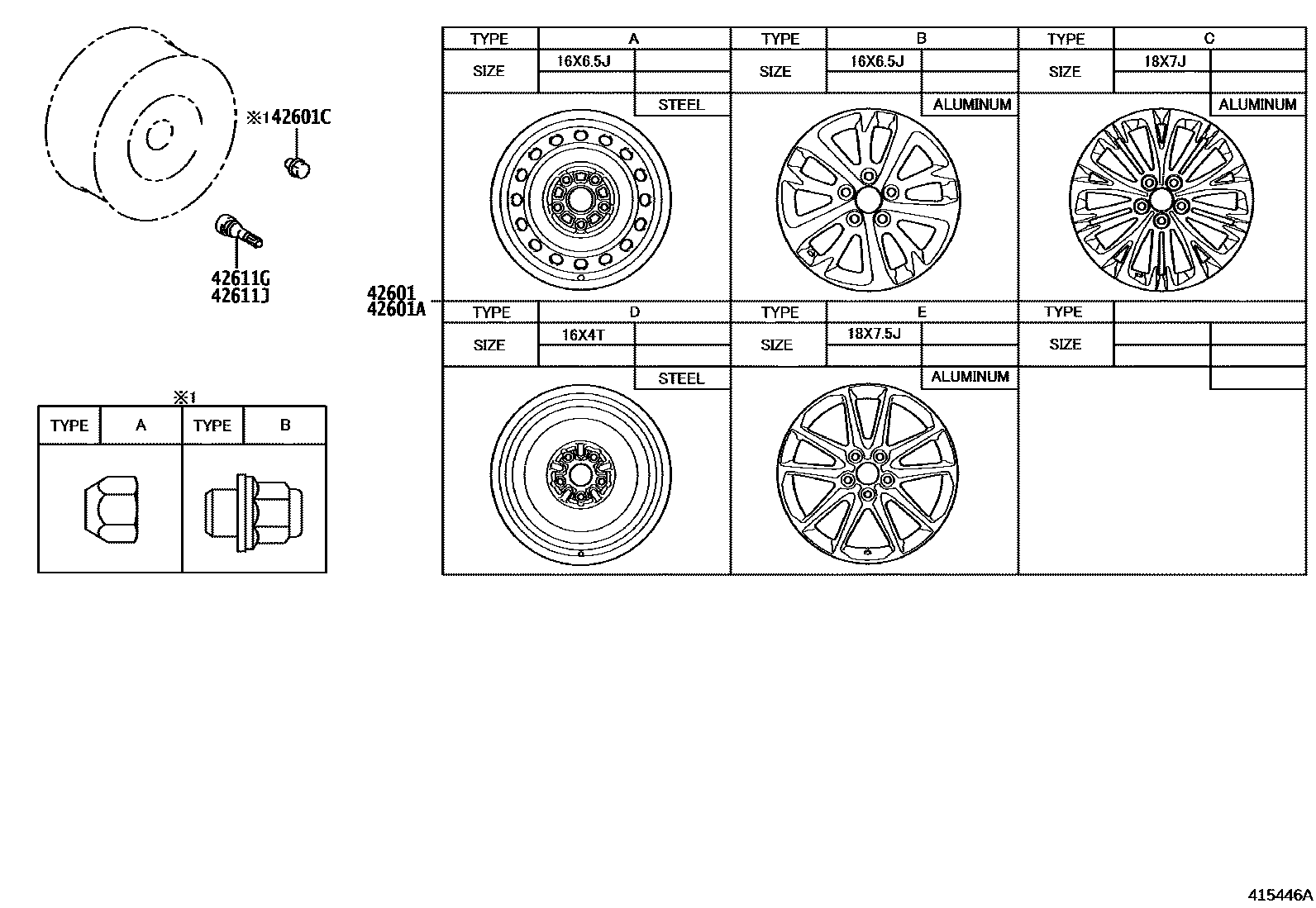

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-52D80×4i202210-202401

18X7.5J,#,TYPE E:REFER ILLUST.

main42611-52B90×4supersedes 42611-12A10i202008-202401

18X7J, #,TIRE & DISC WHEEL-215/50R18, ALUMINUM, MACHINING,TYPE C:REFER ILLUST.

main42611-52E60×4supersedes 42611-52B80i202401

18X7J, #,HIGH PACKAGE,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21280i202008-202401

16X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01007i202210-202401

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i202008-202401

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i202008-202401

5 parts on this diagram · 3 diagrams in section
