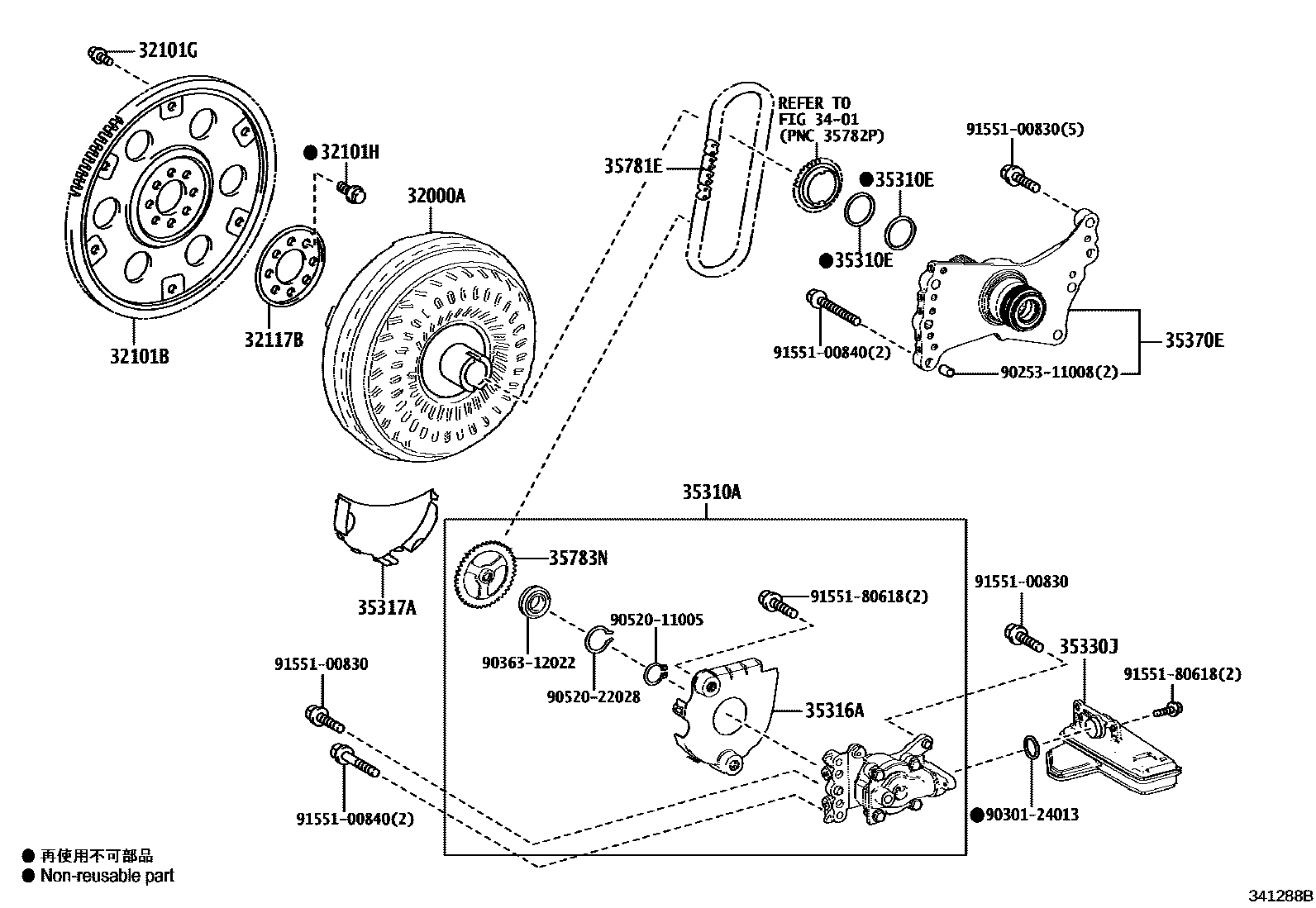

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52260iMXPB10¥81,500202008-202112

sub32000-K0010¥74,000

main32000-K0010iMXPB10¥74,000202112-202401

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52100iMXPB10¥11,600202008-202401

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMXPB10¥80202008-202401

*8-1.25PX12-8.4,BLACK

main90119-08498iMXPB10¥80202008-202401

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXPB10¥100202008-202401

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXPB10¥920202008-202401

3401

35310APUMP ASSY, FRONT OIL

main35300-12020iMXPB10¥48,000202104-202401

main35300-52050iMXPB10¥48,000202008-202104

sub35300-12020¥48,000

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12080iMXPB10¥160202104-202401

main35617-K0010iMXPB10¥160202008-202104

sub35617-12080¥160

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXPB10¥980202008-202401

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXPB10¥590202008-202401

35330JSTRAINER ASSY, OIL

main35330-12070iMXPB10¥3,950202104-202401

main35330-K0020iMXPB10¥3,950202008-202104

sub35330-12070¥3,950

35370ESHAFT ASSY, STATOR (CVT)

main35370-K0010iMXPB10¥16,500202008-202109

sub35370-K0011¥14,900

main35370-K0011iMXPB10¥14,900202110-202401

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXPB10¥5,100202008-202401

35783NSPROCKET, DRIVEN

main35783-12060iMXPB10¥1,310202008-202401

9025311008

main90253-11008¥70

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

22 parts on this diagram · 1 diagram in section
