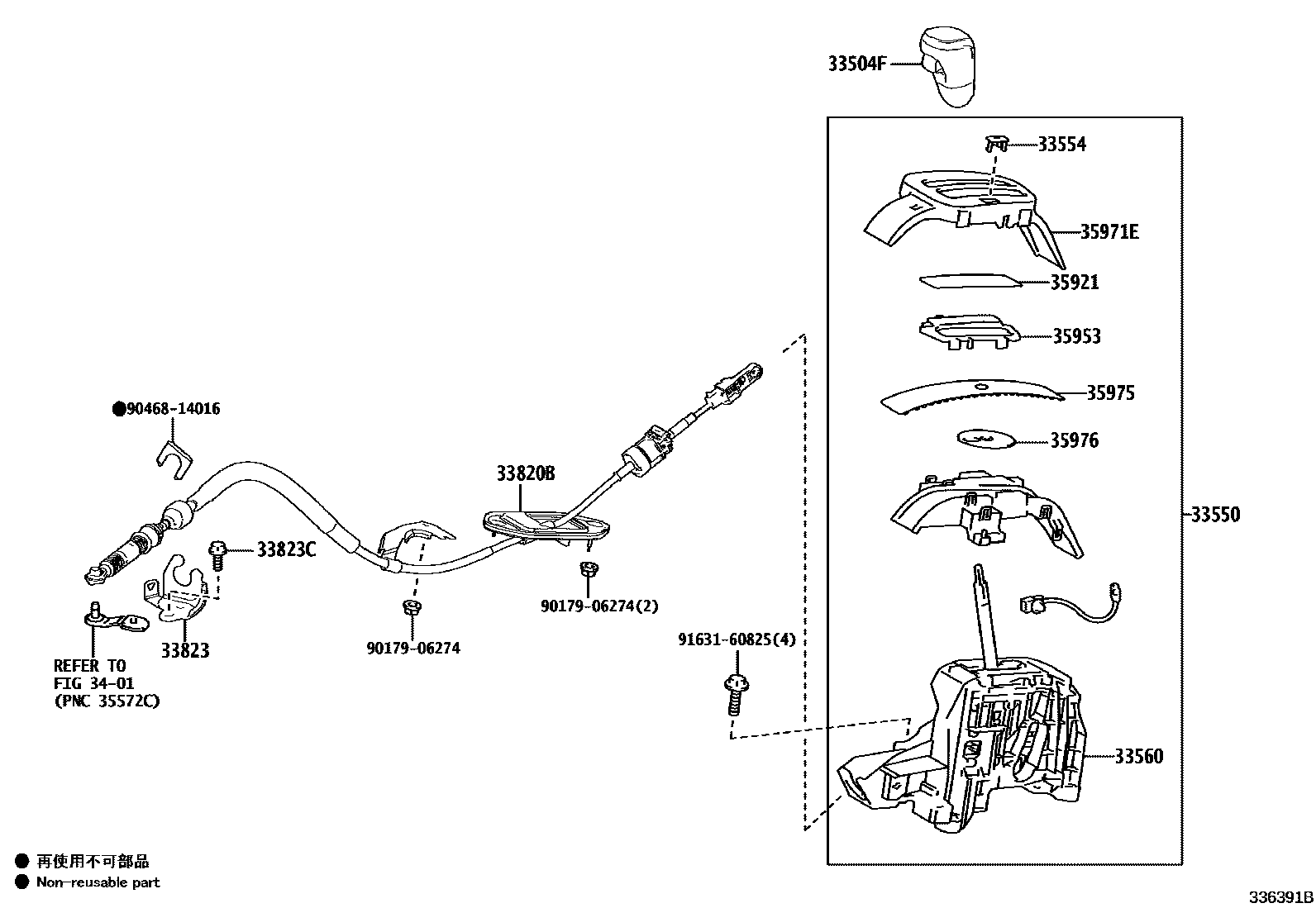

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-52630-C0i202210-202401

BLACK,TRIM2#

main33504-K0040-C0supersedes 33504-K0030-C0i202401

BLACK,TRIM2#,4#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-K0080supersedes 33550-K0070i202210-202302

main33550-52K50supersedes 33550-52K40i202210-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main33550-K0090supersedes 33550-K0070i202008-202208

STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & VIBRATION)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

33554CAP, SHIFT LEVER

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-K0040supersedes 33560-K0030i202210-202302

main33560-52800supersedes 33560-52790i202210-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main33560-K0050supersedes 33560-K0060i202208-202209

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-K0070i202008-202401

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-K0040i202008-202401

main33823-K0050i202008-202401

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820×2i202008-202401

3401

35921PLATE, CONTROL POSITION INDICATOR

main35921-K0050supersedes 35921-K0060i202401

35953GUIDE, POSITION INDICATOR LIGHT

main35953-K0010supersedes 35953-K0020i202401

35971EHOUSING, POSITION INDICATOR

main35971-K0030supersedes 35971-K0040i202401

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-K0030supersedes 35975-K0040i202008-202401

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-K0020i202208-202401

9017906274

9046814016

9163160825

16 parts on this diagram · 2 diagrams in section
