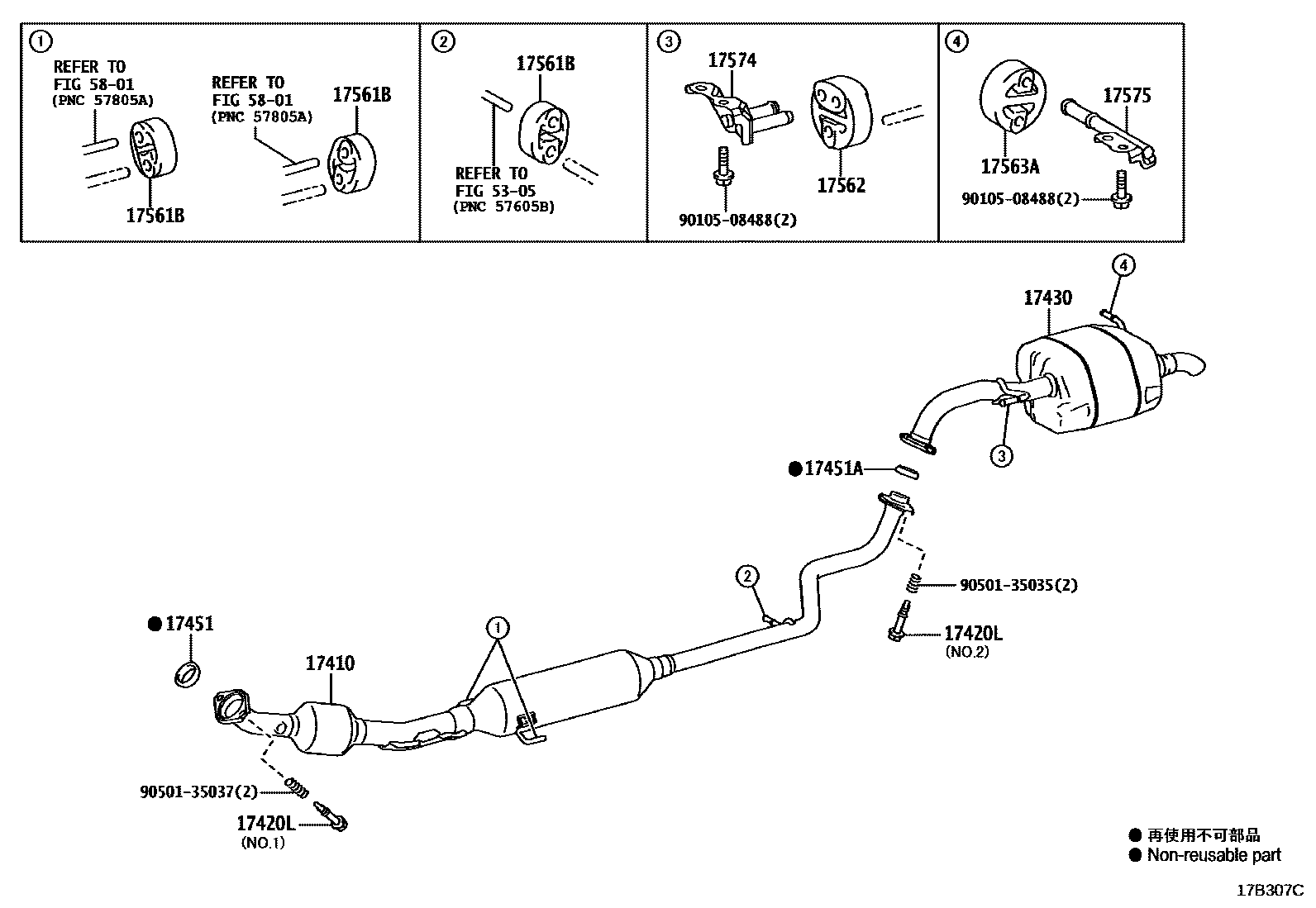

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5305
5801
9010508488
main90105-08488
9050135035
main90501-35035
9050135037
main90501-35037
15 parts on this diagram · 3 diagrams in section
