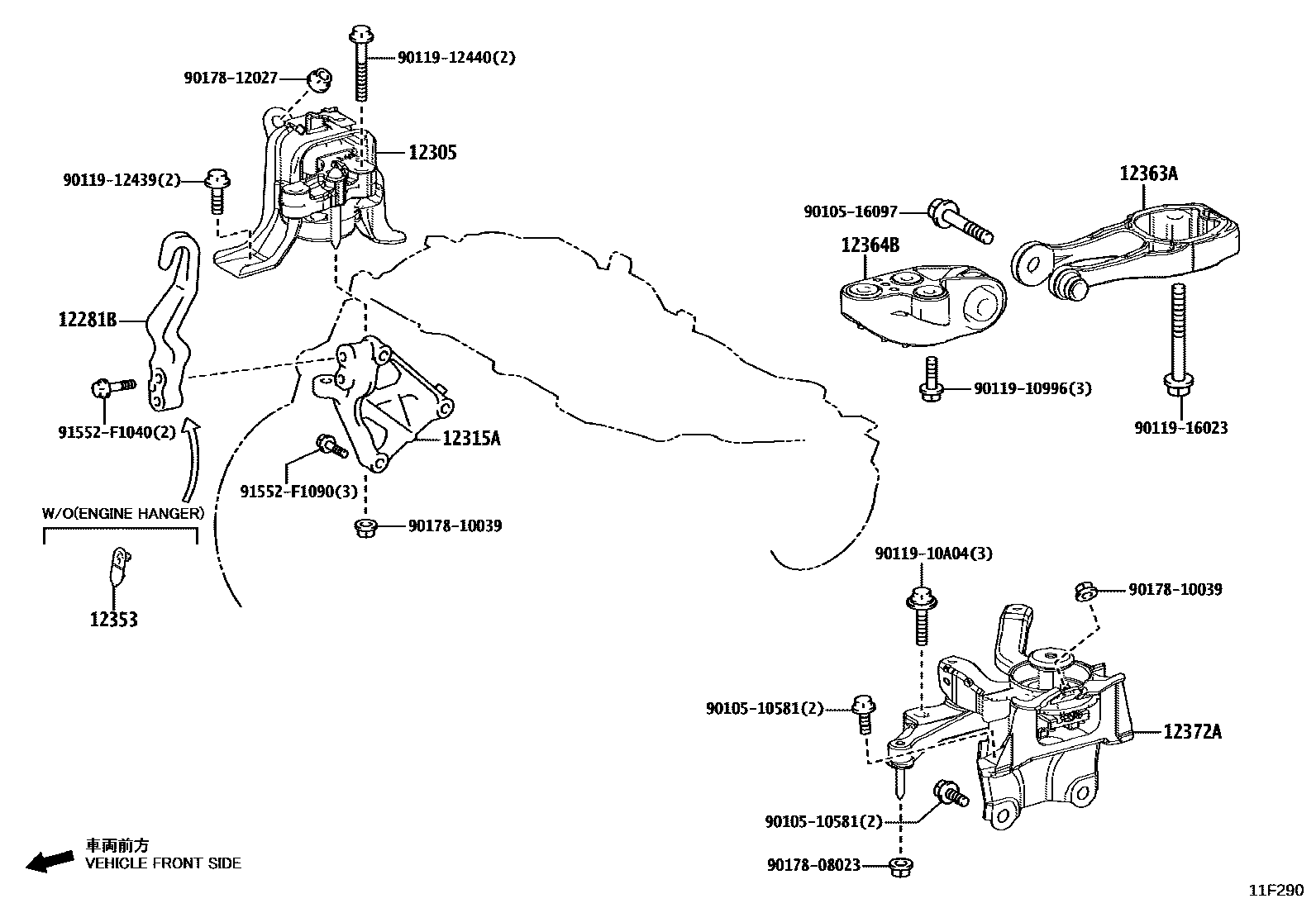

MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM15#..MXPB10,MXPJ1#202008-202401

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-15090iM15AFXE..MXPJ1#202008-202401

main12305-15100iM15AFKS..MXPB10202008-202401

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15090iM15AFKS..MXPB10202008-202401

main12315-15100iM15AFXE..MXPJ1#202008-202401

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15#..MXPB10,MXPJ1#202008-202401

12363AROD, ENGINE MOVING CONTROL

main12363-15050iM15AFXE..MXPJ1#202401

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-15010iM15AFXE..MXPJ1#202401

main12364-15060iM15AFKS..MXPB10202008-202401

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15270iM15AFXE..MXPJ1#202008-202401

main12372-15281iM15AFKS..MXPB10202008-202401

9010510581

main90105-10581

9010516097

main90105-16097

9011910996

main90119-10996

9011910A04

main90119-10A04

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

19 parts on this diagram · 2 diagrams in section
