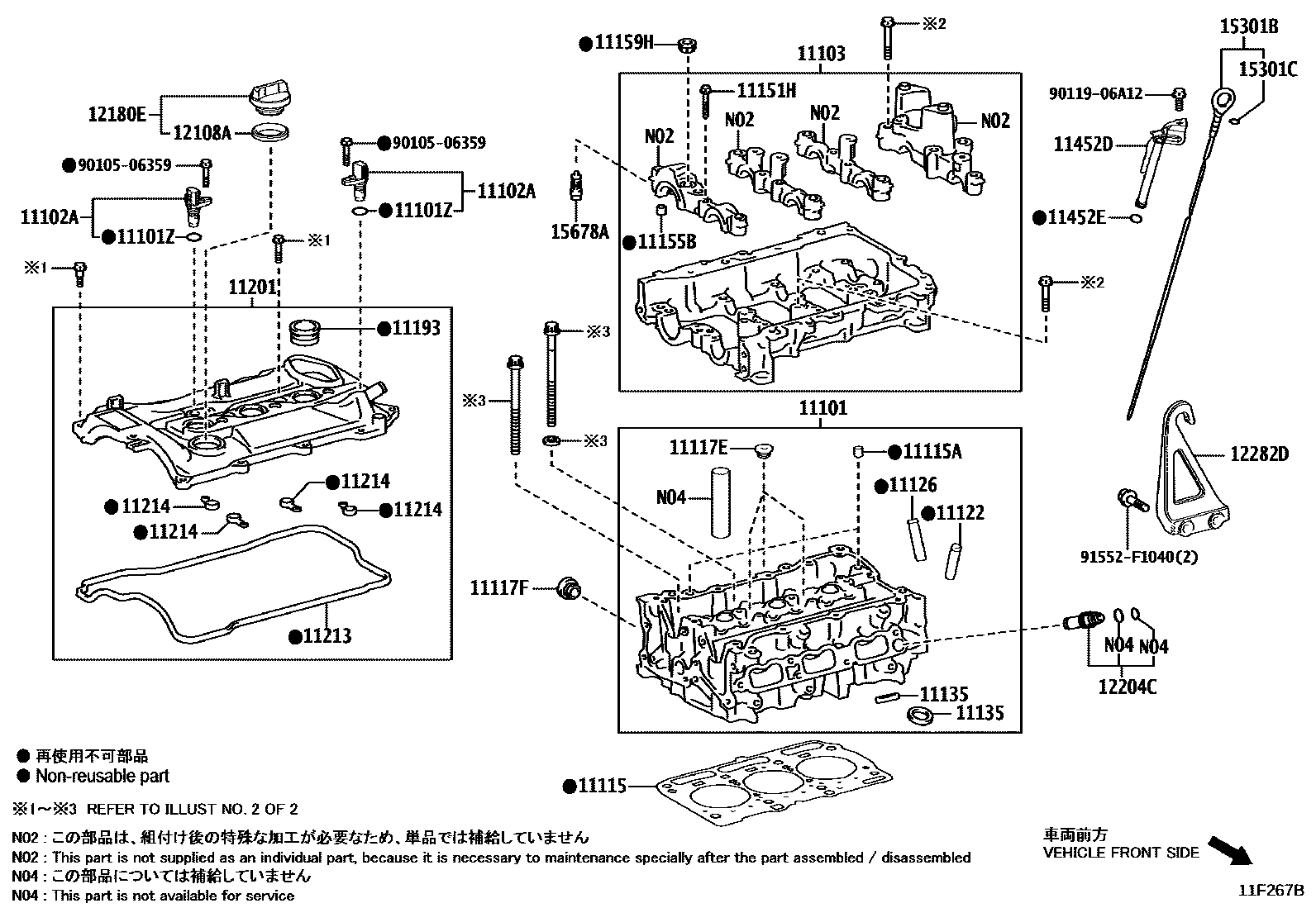

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,(J)
STD
STD,(L)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11452DGUIDE, OIL LEVEL GAGE
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
15301BGAGE SUB-ASSY, OIL LEVEL
15301CRING, O(FOR OIL LEVEL GAGE)
15678AFILTER, OIL CONTROL VALVE
9010506359
main90105-06359
9011906A12
main90119-06A12
91552F1040
main91552-F1040
30 parts on this diagram · 4 diagrams in section
