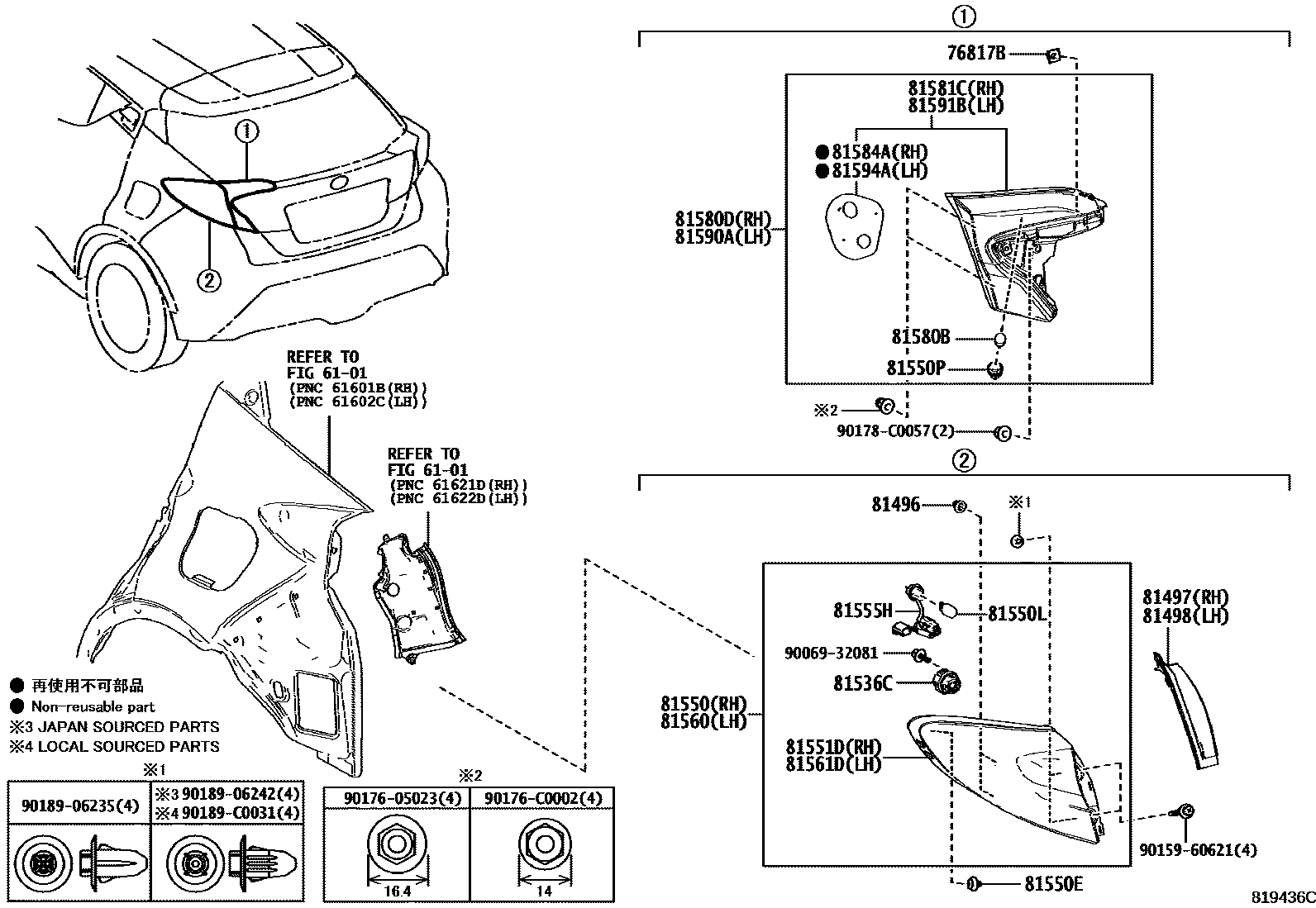

REAR COMBINATION LAMP

0001 1 0002 1

6101

76817BCLIP, REAR LAMP

main76817-26040×2iKPX10202005-202110

main90467-C0083×2iKPX10202110

(L)

81496GUIDE, REAR COMBINATION LAMP

main81496-02020×4iKPX10202005

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4030iKPX10202005

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4030iKPX10202005

81536CLED, TAIL & STOP LAMP

main81536-F4080×2iKPX10..D,N202005

81550LAMP ASSY, REAR COMBINATION, RH

main81550-F4081iKPX10..D,N202005

main81550-F4090iKPX10..E202005

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-C0019×2iKPX10202005

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15029×2iKPX10..D,N202005

12V 21W,AMBER

81550PSOCKET, BACK UP LAMP

main90069-81119×2iKPX10..D,N202005

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-F4080iKPX10..D,N202005

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-F4080×2iKPX10..D,N202005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-F4081iKPX10..D,N202005

main81560-F4090iKPX10..E202005

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-F4080iKPX10..D,N202005

81580BBULB (FOR REAR LAMP)

main90981-11059×2iKPX10..D,N202005

12V 16W

81580DLAMP ASSY, REAR, RH

main81580-F4051iKPX10..D,N202005

main81580-F4060iKPX10..E202005

81581CLENS AND BODY, REAR LAMP, RH

main81581-F4050iKPX10..D,N202005

81584AGASKET, REAR LAMP RH

main81584-F4050iKPX10..D,N202005

main81584-F4060iKPX10..E202005

81590ALAMP ASSY, REAR, LH

main81590-F4051iKPX10..D,N202005

main81590-F4060iKPX10..E202005

81591BLENS AND BODY, REAR LAMP, LH

main81591-F4050iKPX10..D,N202005

81594AGASKET, REAR LAMP LH

main81594-F4050iKPX10..D,N202005

main81594-F4060iKPX10..E202005

9006932081

main90069-32081

9015960621

main90159-60621

9017605023

main90176-05023

90176C0002

main90176-C0002

90178C0057

main90178-C0057

9018906235

main90189-06235

9018906242

main90189-06242

90189C0031

main90189-C0031

29 parts on this diagram · 2 diagrams in section
