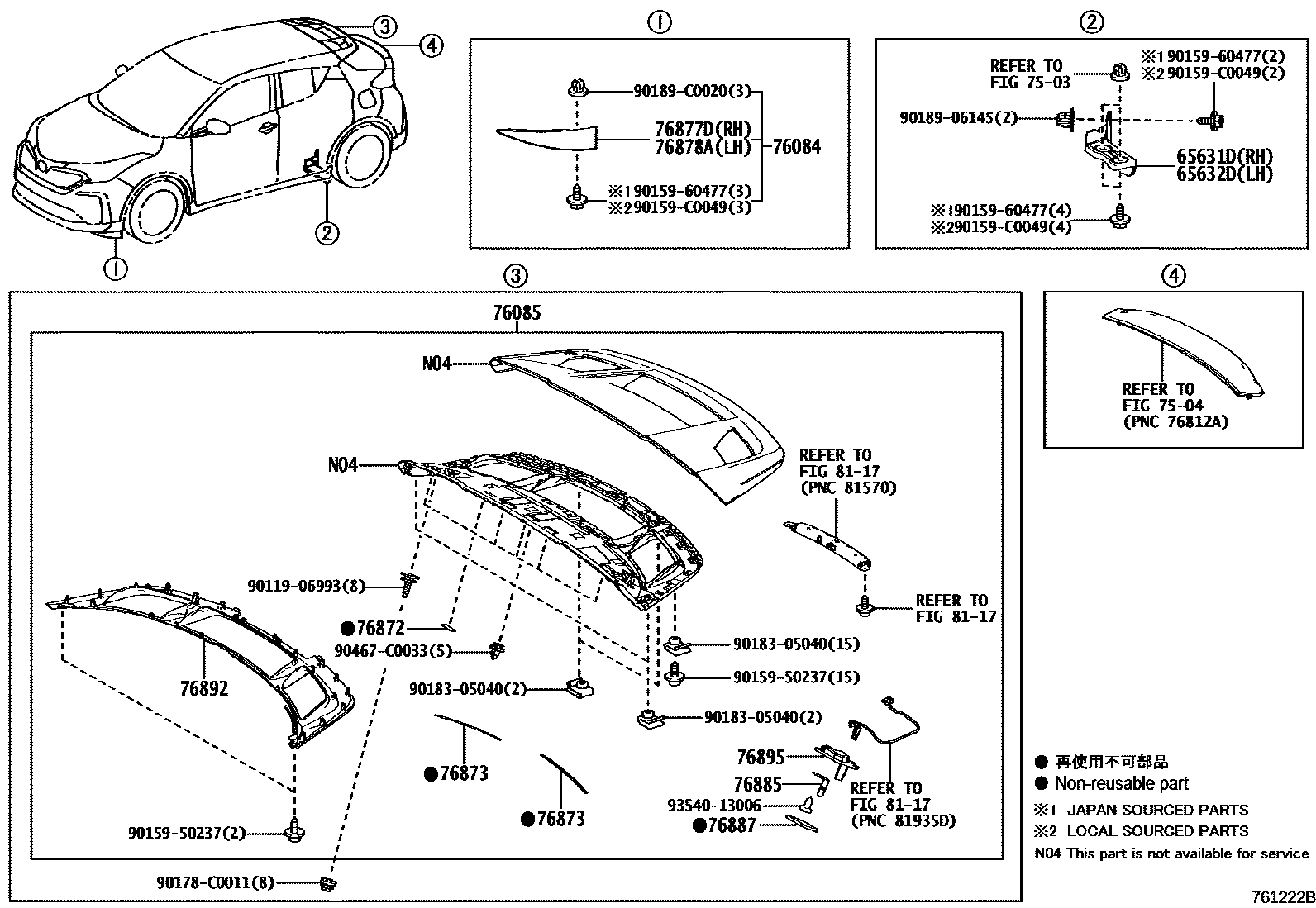

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503
7504
76084SPOILER SET, FRONT
76085SPOILER SUB-ASSY, REAR
WHITE,2ND ,2NE ,2QG
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0 ,2TA
BLACK MC.,209 ,2KR ,2PN ,2PU ,2UY
DK. BROWN M.M.,2TP ,2WN ,4U3
NEBULA BLUE ME.,8X2
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76877DPROTECTOR, FRONT SPOILER SIDE, RH
76878APROTECTOR, FRONT SPOILER SIDE, LH
76885RETAINER, REAR SPOILER, NO.5
76887SEAL, REAR SPOILER
76892SPOILER, REAR NO.2
76895PROTECTOR, REAR SPOILER, NO.5
8117
9011906993
main90119-06993
9015950237
main90159-50237
9015960477
main90159-60477
90159C0049
main90159-C0049
90178C0011
main90178-C0011
9018305040
main90183-05040
9018906145
main90189-06145
90189C0020
main90189-C0020
90467C0033
main90467-C0033
9354013006
main93540-13006
25 parts on this diagram · 1 diagram in section
