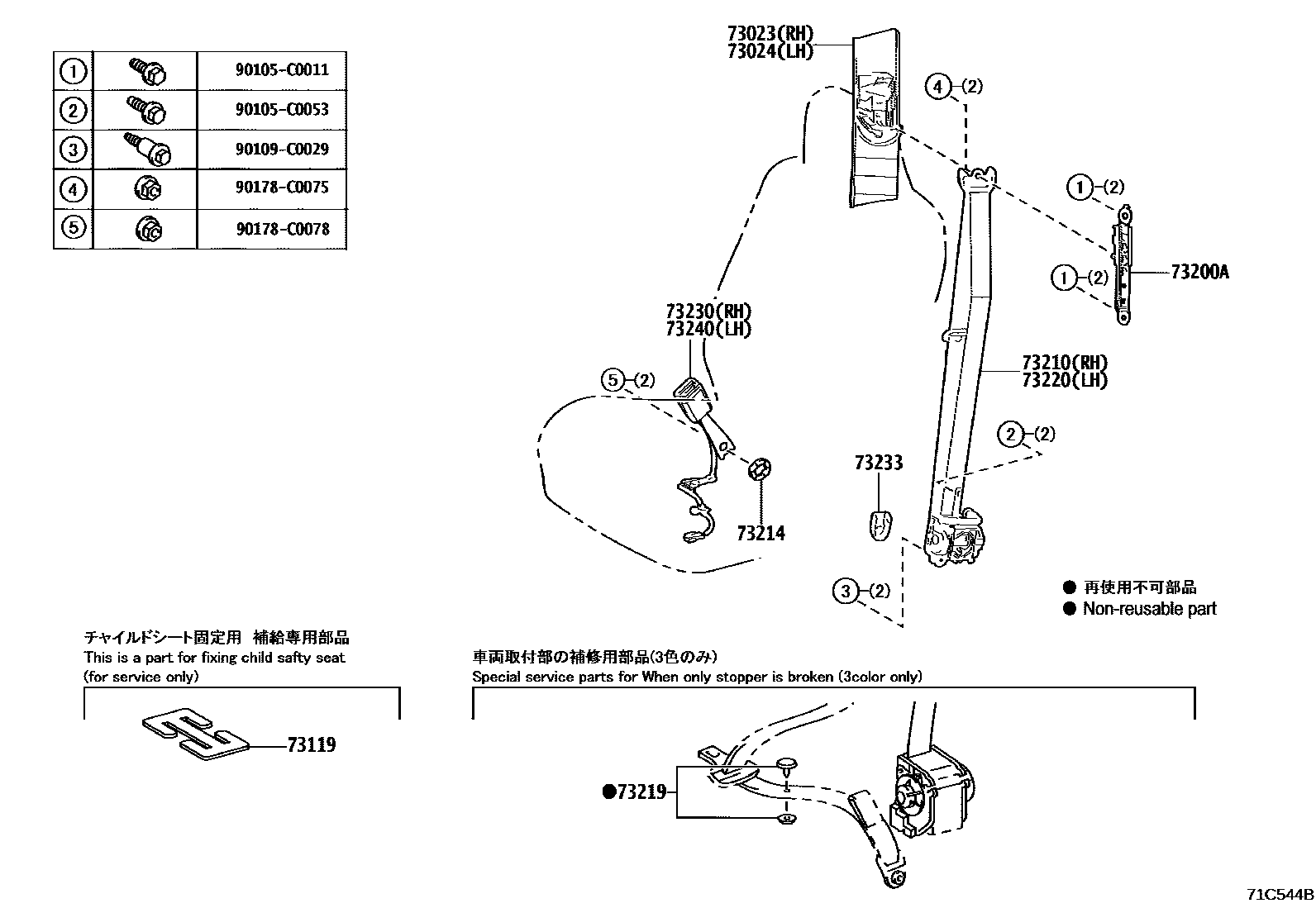

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02070-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02070-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iKPX10202005

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iKPX10202005

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-F4050-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iKPX10202005

73219STOPPER, TONGUE PLATE

main73219-33010iKPX10202005

BLACK

main73219-33020iKPX10202005

GRAY

main73219-33030iKPX10202005

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-F4040-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-F4160-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1×2iKPX10..D,N202005

BLACK,TRIM1#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-F4010-C0iKPX10..D,N202005

BLACK,TRIM2#

main73240-F4040-C0iKPX10..E202005

BLACK,TRIM1#,2#

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90109C0029

main90109-C0029

90178C0075

main90178-C0075

90178C0078

main90178-C0078

16 parts on this diagram · 2 diagrams in section
