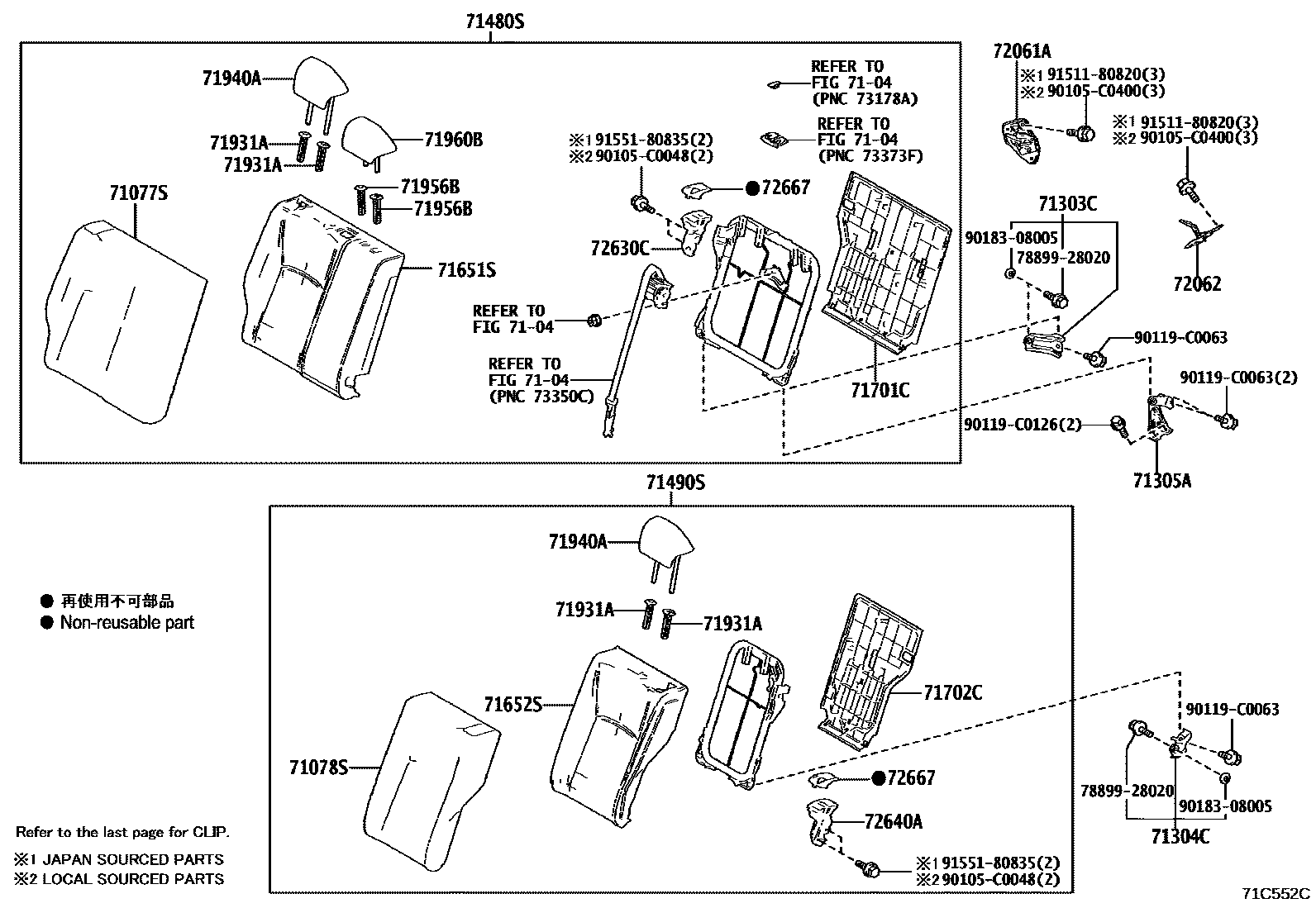

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1CLIP

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-F4161-C0iKPX10..D202005

DK.GRAY,TRIM2#

main71077-F4171-B4iKPX10..E202005

COOL GRAY,TRIM1#

main71077-F4171-C6iKPX10..E,N202005

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-F4121-C0iKPX10..D202005

DK.GRAY,TRIM2#

main71078-F4131-B4iKPX10..E202005

COOL GRAY,TRIM1#

main71078-F4131-C6iKPX10..E,N202005

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-F4030iKPX10202005

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-F4030iKPX10202005

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-F4030iKPX10202005

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-F4161-C2iKPX10..D202005

BLACK,TRIM2#

main71480-F4171-B0iKPX10..E202005

COOL GRAY,TRIM1#

main71480-F4171-C2iKPX10..E,N202005

BLACK,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-F4131-C2iKPX10..D202005

BLACK,TRIM2#

main71490-F4141-B0iKPX10..E202005

COOL GRAY,TRIM1#

main71490-F4141-C2iKPX10..E,N202005

BLACK,TRIM2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-F4050iKPX10202005

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-F4050iKPX10202005

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-F4030iKPX10202005

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-F4030iKPX10202005

71931ASUPPORT, REAR SEAT HEADREST

main71930-06070-B0iKPX10..E202005

W(LOCK),COOL GRAY,TRIM1#

main71930-06070-C0iKPX10202005

W(LOCK),BLACK,TRIM2#

main71931-06060-B0iKPX10..E202005

W/O(LOCK),COOL GRAY,TRIM1#

main71931-06060-C0iKPX10202005

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-F4091-C1iKPX10..D202005

BLACK,TRIM2#

main71940-F4101-B1iKPX10..E202005

COOL GRAY,TRIM1#

main71940-F4101-C1iKPX10..E,N202005

BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-06070-B0iKPX10..E202005

W(LOCK),COOL GRAY,TRIM1#

main71930-06070-C0iKPX10202005

W(LOCK),BLACK,TRIM2#

main71931-06060-B0iKPX10..E202005

W/O(LOCK),COOL GRAY,TRIM1#

main71931-06060-C0iKPX10202005

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-F4081-C1iKPX10..D202005

BLACK,TRIM2#

main71960-F4091-B1iKPX10..E202005

COOL GRAY,TRIM1#

main71960-F4091-C1iKPX10..E,N202005

BLACK,TRIM2#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-F4020iKPX10202005

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-F4020iKPX10202005

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-F4020-B0iKPX10..E202005

COOL GRAY,TRIM1#

main72630-F4020-C0iKPX10202005

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-F4020-B0iKPX10..E202005

COOL GRAY,TRIM1#

main72640-F4020-C0iKPX10202005

BLACK,TRIM2#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-F4040-B0iKPX10..E202005

COOL GRAY,TRIM1#

main72667-F4040-C0iKPX10202005

BLACK,TRIM2#

7889928020BOLT, FRONT SEAT

main78899-28020

90105C0048

main90105-C0048

90105C0400

main90105-C0400

90119C0063

main90119-C0063

90119C0126

main90119-C0126

9018308005

main90183-08005

9151180820

main91511-80820

9155180835

main91551-80835

29 parts on this diagram · 3 diagrams in section
