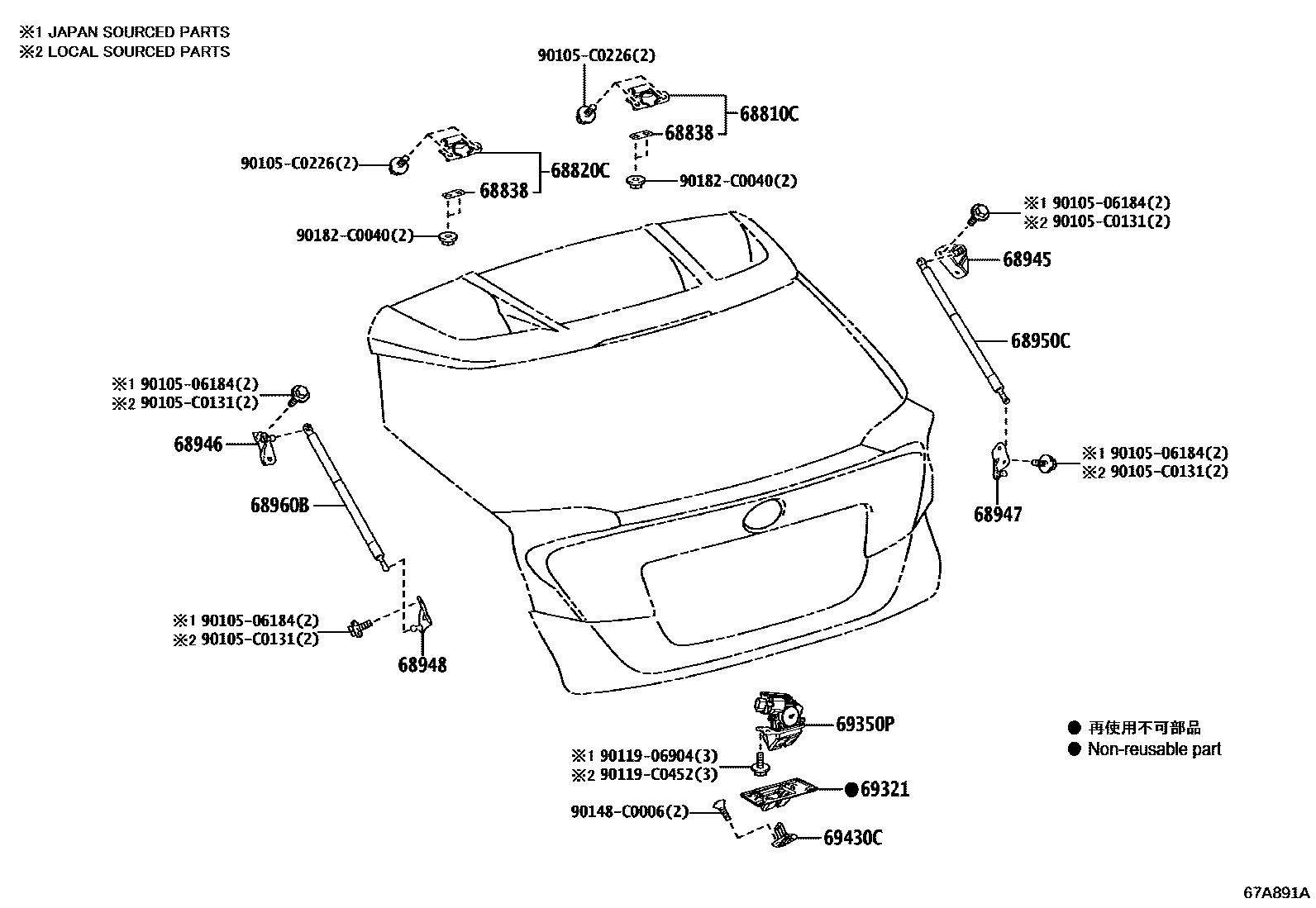

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-F4070iKPX10202005

68820CHINGE ASSY, BACK DOOR, LH

main68810-F4070iKPX10202005

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4070×2iKPX10202005

T=1.0

main68838-F4080×2iKPX10202005

T=1.5

main68838-F4090×2iKPX10202005

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-10010iKPX10202005

(J)

main68945-F4030iKPX10202005

(L)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-10010iKPX10202005

(J)

main68945-F4030iKPX10202005

(L)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-10011iKPX10202005

(J)

main68947-F4030iKPX10202005

(L)

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-10011iKPX10202005

(J)

main68948-F4030iKPX10202005

(L)

68950CSTAY ASSY, BACK DOOR, RH

main68950-F4090iKPX10..D,N202005

main68950-F4100iKPX10..E202005

68960BSTAY ASSY, BACK DOOR, LH

main68960-F4090iKPX10..D,N202005

main68960-F4100iKPX10..E202005

69321COVER, BACK DOOR LOCK

main69321-F4020iKPX10202005

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-F4031iKPX10202005

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-F4030iKPX10202005

9010506184

main90105-06184

90105C0131

main90105-C0131

90105C0226

main90105-C0226

9011906904

main90119-06904

90119C0452

main90119-C0452

90148C0006

main90148-C0006

90182C0040

main90182-C0040

19 parts on this diagram · 1 diagram in section
