EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

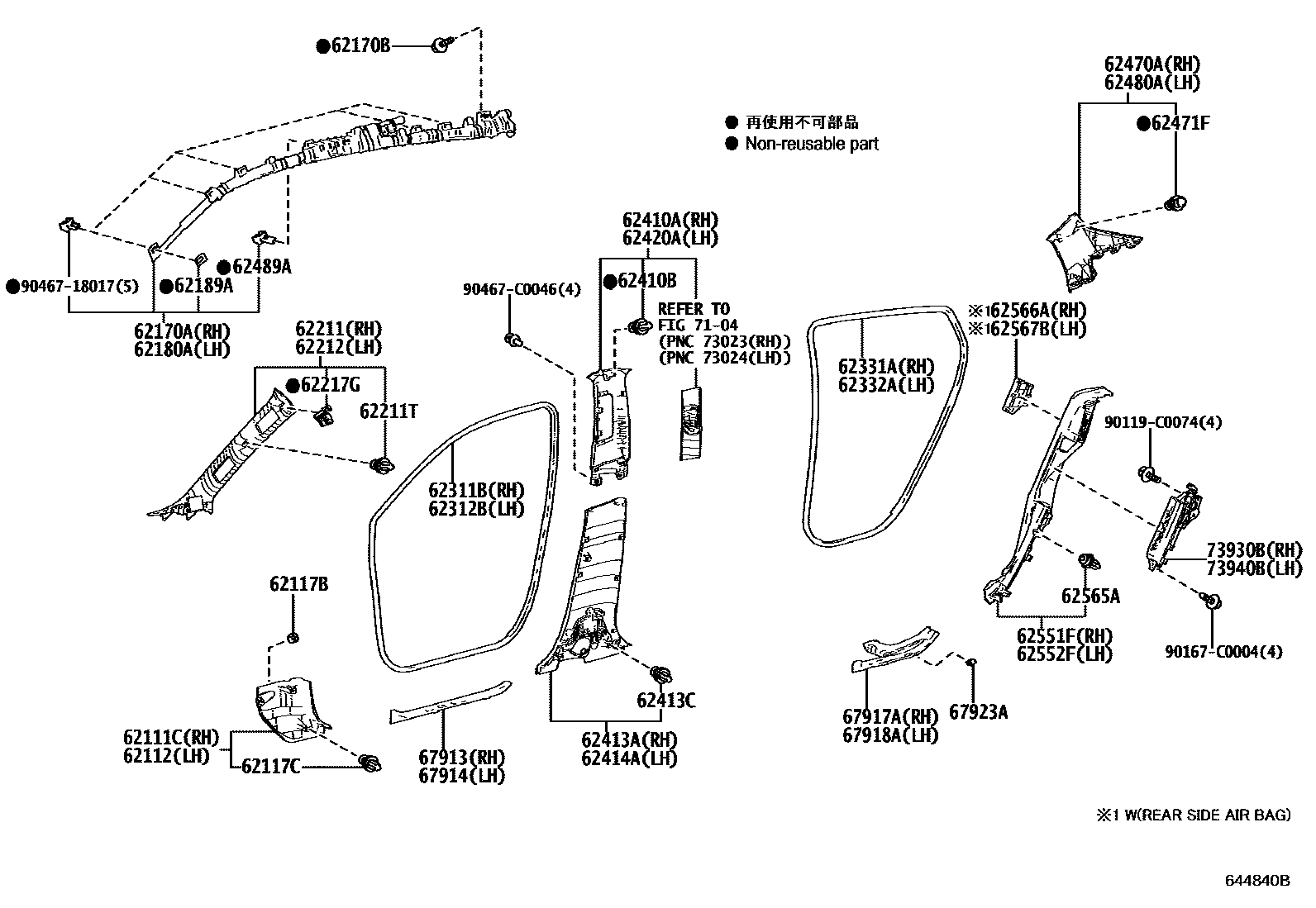

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-F4041-C0i202005
BLACK,TRIM1#,2#
main62111-F4041-C0i202005
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-F4041-C0i202005
BLACK,TRIM1#,2#
main62112-F4041-C0i202005
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147i202005
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-C0036i202005
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-F4041i202005
62170BBOLT, W/WASHER
main90119-C0107i202005
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-F4041i202005
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010i202005
62211GARNISH, FRONT PILLAR, RH
main62210-F4060-C0i202005
BLACK,TRIM1#,2#
main62210-F4060-C0i202005
BLACK,TRIM2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-C0036i202005
62212GARNISH, FRONT PILLAR, LH
main62220-F4060-C0i202005
BLACK,TRIM1#,2#
main62220-F4060-C0i202005
BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
main62217-24020i202005
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-F4030i202005
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-F4030i202005
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-F4030i202005
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-F4030i202005
62410AGARNISH ASSY, CENTER PILLAR, RH
main62410-F4040-C1i202005
BLACK,TRIM1#,2#
main62410-F4040-C1i202005
BLACK,TRIM2#
62410BCLIP
main90467-C0035i202005
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-F4080-C0i202005
BLACK,TRIM1#,2#
main62413-F4080-C0i202005
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-C0036i202005
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-F4080-C0i202005
BLACK,TRIM1#,2#
main62414-F4080-C0i202005
BLACK,TRIM2#
62420AGARNISH ASSY, CENTER PILLER, LH
main62420-F4040-C1i202005
BLACK,TRIM1#,2#
main62420-F4040-C1i202005
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-F4060-C0i202005
BLACK,TRIM1#,2#
main62470-F4060-C0i202005
BLACK,TRIM2#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-A0033i202005
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-F4060-C0i202005
BLACK,TRIM1#,2#
main62480-F4060-C0i202005
BLACK,TRIM2#
62489ACLIP, ROOF SIDE INNER GARNISH
main62489-28010i202005
62551FGARNISH, REAR SEAT SIDE, RH
main62551-F4091-C0i202005
BLACK,TRIM1#,2#
main62551-F4140-C0i202005
BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-F4091-C0i202005
BLACK,TRIM1#,2#
main62552-F4130-C0i202005
BLACK,TRIM2#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
main62217-13010i202005
62566ACOVER, REAR PILLAR, RH
main62566-F4020-C0i202005
BLACK,TRIM1#,2#
62567BCOVER, REAR PILLAR, LH
main62567-F4020-C0i202005
BLACK,TRIM1#,2#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-F4020-C0i202005
BLACK,TRIM1#,2#
main67913-F4020-C0i202005
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-F4020-C0i202005
BLACK,TRIM1#,2#
main67914-F4020-C0i202005
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
main67917-F4060-C0i202005
BLACK,TRIM1#,2#
main67917-F4060-C0i202005
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-F4060-C0i202005
BLACK,TRIM1#,2#
main67918-F4060-C0i202005
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i202005
7104
73930BAIRBAG, REAR SEAT, RH
main73930-F4020i202005
73940BAIRBAG, REAR SEAT, LH
main73940-F4020i202005
90119C0074
main90119-C0074
90167C0004
main90167-C0004
9046718017
main90467-18017
90467C0046
main90467-C0046

43 parts on this diagram · 1 diagram in section
