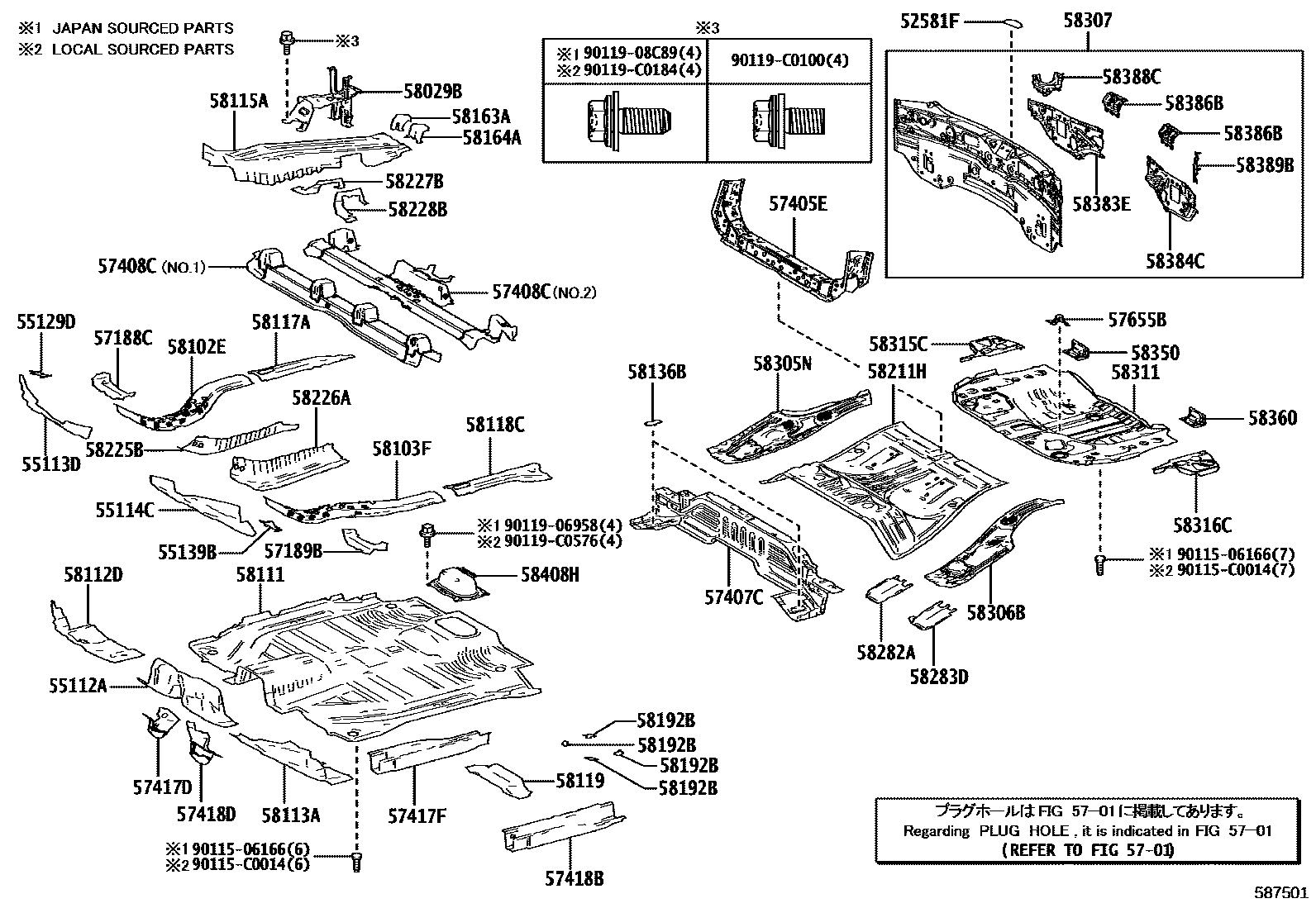

FLOOR PAN & LOWER BACK PANEL

52581FPROTECTOR, REAR BUMPER

main52581-02080iKPX10202005-202009

55112APANEL, DASH, NO.2

main55112-F4050iKPX10202005

55113DPANEL, DASH, LOWER RH

main55113-F4030iKPX10202005

55114CPANEL, DASH, LOWER LH

main55114-F4030iKPX10202005

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4030iKPX10202005

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4030iKPX10202005

5701

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-F4050iKPX10202005

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-F4050iKPX10202005

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-F4030iKPX10202005

sub57405-F4031

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-F4080iKPX10202005

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57051-F4050iKPX10202005

NO.1:REFER ILLUST.

main57052-F4050iKPX10202005

NO.2:REFER ILLUST.

57417DREINFORCEMENT, FLOOR SIDE, INNER RH

main57403-F4010iKPX10202005

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-F4050iKPX10202005

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-F4010iKPX10202005

57418DREINFORCEMENT, FLOOR SIDE, INNER LH

main57404-F4010iKPX10202005

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-F4030iKPX10202005

58029BBASE SUB-ASSY, FLOOR SHIFT LEVER

main58029-F4010iKPX10202005

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-F4050iKPX10202005

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58103-F4010iKPX10202005

58111PAN, FRONT FLOOR

main58111-76030iKPX10202005

58112DPANEL, FRONT FLOOR, FRONT NO.2

main58112-F4050iKPX10202005

58113APANEL, FRONT FLOOR, CENTER

main58113-F4060iKPX10202005

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-F4060iKPX10202005

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-F4050iKPX10202005

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-F4050iKPX10202005

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-F4010iKPX10202005

58136BCOVER, CENTER FLOOR HOLE

main58136-02040×2iKPX10202005

58163ARETAINER, CONSOLE BOX MOUNTING, NO.1

main58163-F4010iKPX10202005

58164ARETAINER, CONSOLE BOX MOUNTING

main58164-F4010iKPX10202005

58192BPLATE, FRONT FLOOR, REAR

main58192-F4010×4iKPX10202005

58211HPAN, CENTER FLOOR

main58211-76010iKPX10202005

58225BPLATE, FRONT FLOOR SIDE, LOWER RH

main58225-F4010iKPX10202005

58226APLATE, FRONT FLOOR SIDE, LOWER LH

main58226-F4010iKPX10202005

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-F4010iKPX10202005

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-F4010iKPX10202005

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-F4050iKPX10202005

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-F4050iKPX10202005

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-F4050iKPX10202005

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-F4050iKPX10202005

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-F4050iKPX10..D,N202005-202105

main58307-F4051iKPX10..D,N202105

main58307-F4060iKPX10..E202005-202105

main58307-F4061iKPX10..E202105

58311PAN, REAR FLOOR

main58311-F4050iKPX10202005

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-F4030iKPX10202005

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-F4030iKPX10202005

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4030iKPX10202005

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-F4030iKPX10202005

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-F4030iKPX10202005

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-F4030iKPX10202005

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-F4030×2iKPX10202005

58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH

main58388-F4030iKPX10..E202005

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-F4030iKPX10..E202005

58408HCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58408-F4010iKPX10202005

9011506166

main90115-06166

90115C0014

main90115-C0014

9011906958

main90119-06958

9011908C89

main90119-08C89

90119C0100

main90119-C0100

90119C0184

main90119-C0184

90119C0576

main90119-C0576

59 parts on this diagram · 1 diagram in section
