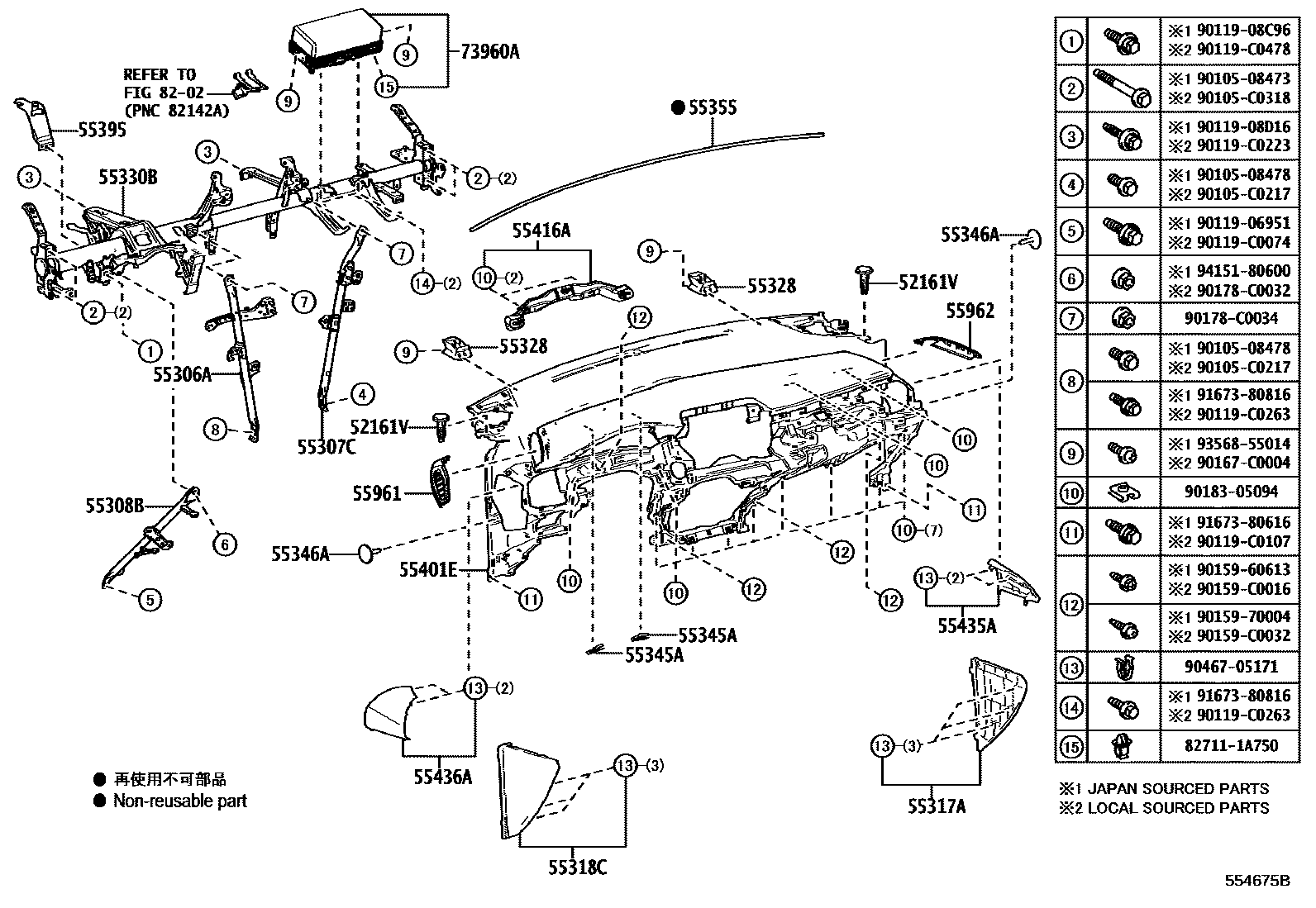

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040×2iKPX10202005

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4110iKPX10202005

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4050iKPX10202005

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4080iKPX10202005

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4030-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4030-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4080×2iKPX10202005

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4090iKPX10202005

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iKPX10202005

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9×2iKPX10202005

BLACK

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4020iKPX10202005

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4050iKPX10202005

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4120-C0iKPX10..N202005

BLACK,TRIM2#

main55401-F4120-C1iKPX10..E202005

BLACK,TRIM2#

main55401-F4120-C2iKPX10..E202005

BLACK,TRIM1#

main55401-F4110-C0supersedes 55401-F4120-C2iKPX10..D202005

AUDIO-WITHOUT & WITH(COVER),BLACK,TRIM2#

55416ARETAINER, METER HOOD, NO.1

main55416-F4050iKPX10202005

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4020-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4020-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4030-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4030-C0iKPX10..D,N202005

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4050iKPX10202005

8202

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508473

main90105-08473

9010508478

main90105-08478

90105C0217

main90105-C0217

90105C0318

main90105-C0318

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960613

main90159-60613

9015970004

main90159-70004

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

46 parts on this diagram · 4 diagrams in section
