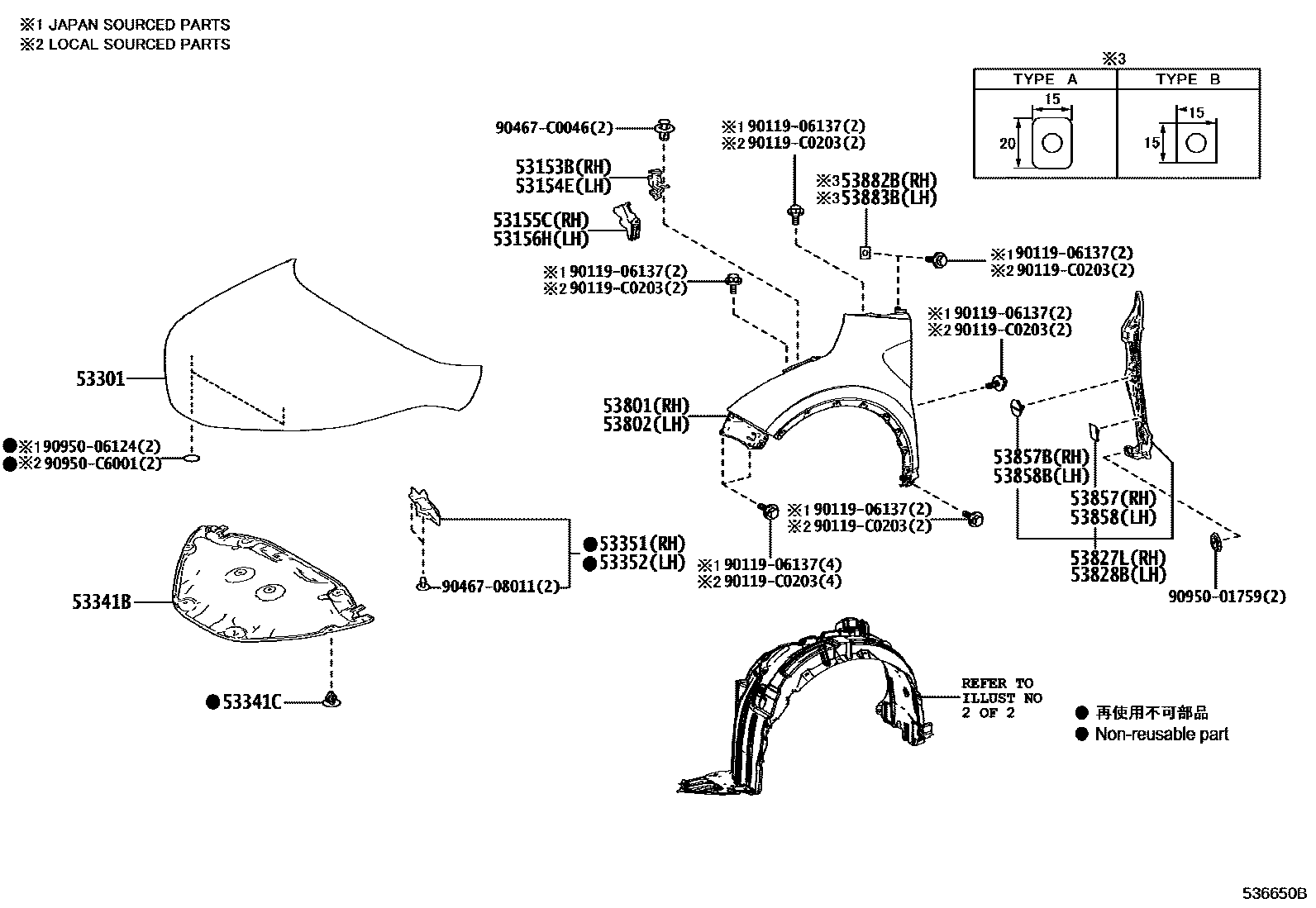

HOOD & FRONT FENDER

0001 1HOOD & FENDER PANEL 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-F4030iKPX10202005

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-F4030iKPX10202005

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-F4030iKPX10202005

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-F4030iKPX10202005

53301HOOD SUB-ASSY

main53301-F4040iKPX10202005

53341BINSULATOR, HOOD

main53341-F4030iKPX10202005

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0025×8iKPX10202005

53351PANEL, HOOD SIDE, RH

main53351-F4020iKPX10202005

53352PANEL, HOOD SIDE, LH

main53352-F4020iKPX10202005

53801FENDER SUB-ASSY, FRONT RH

main53801-F4040iKPX10202005

53802FENDER SUB-ASSY, FRONT LH

main53802-F4040iKPX10202005

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-F4020iKPX10202005

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-F4020iKPX10202005

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0R010iKPX10202005

(L)

main53857-47011iKPX10202005

(J)

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iKPX10202005

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0R010iKPX10202005

(L)

main53857-47011iKPX10202005

(J)

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iKPX10202005

53882BSEAL, FRONT FENDER, RH

main53882-0R050iKPX10202005

(L),TYPE A:REF ILL.

main53882-16030iKPX10202005

(J),TYPE A:REF ILL.

main53882-33060iKPX10202005

TYPE B:REFER ILLUST.

53883BSEAL, FRONT FENDER, LH

main53882-0R050iKPX10202005

(L),TYPE A:REF ILL.

main53882-16030iKPX10202005

(J),TYPE A:REF ILL.

main53882-33060iKPX10202005

TYPE B:REFER ILLUST.

9011906137

main90119-06137

90119C0203

main90119-C0203

9046708011

main90467-08011

90467C0046

main90467-C0046

9095001759

main90950-01759

9095006124

main90950-06124

90950C6001

main90950-C6001

26 parts on this diagram · 2 diagrams in section
