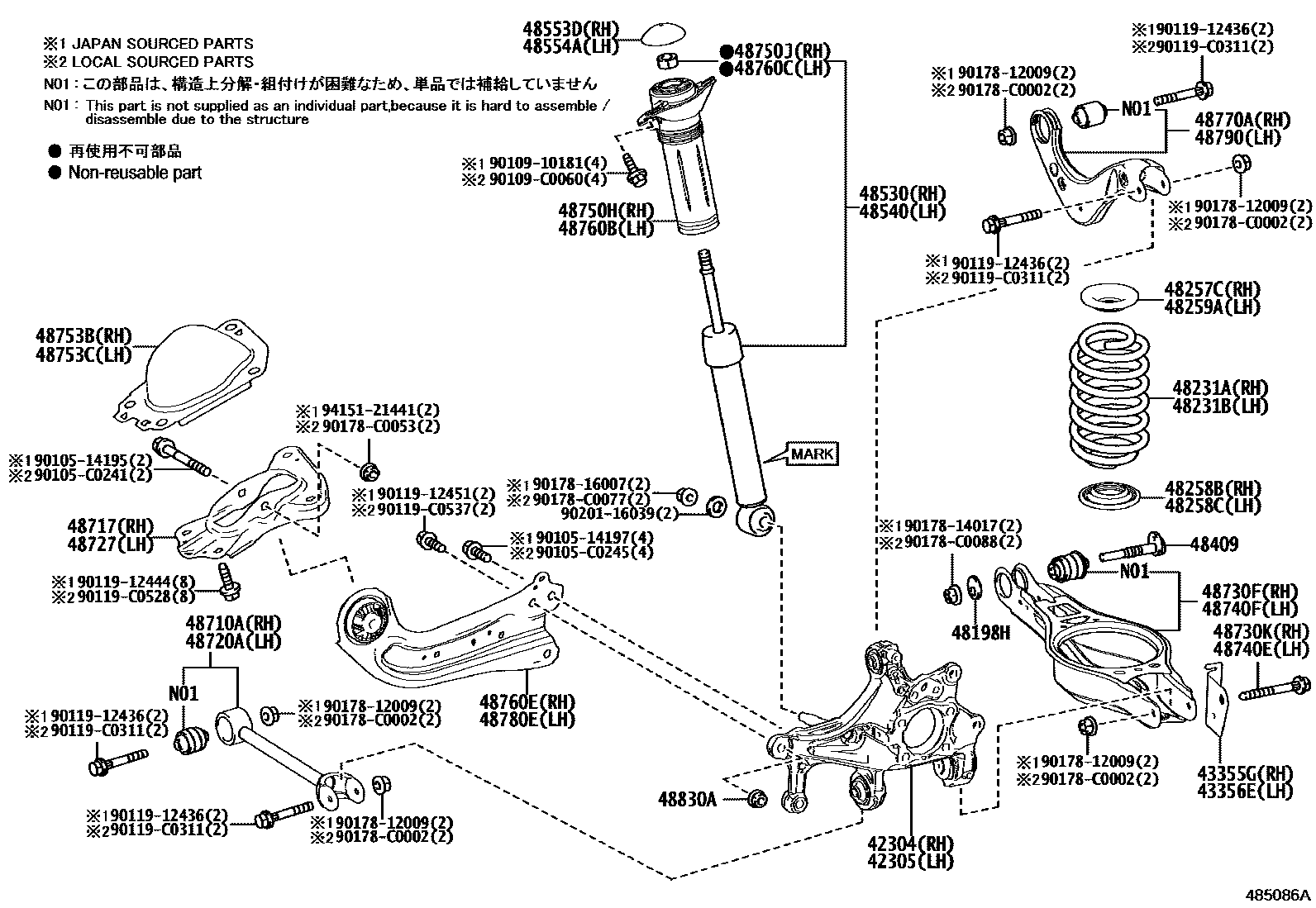

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-F4070iKPX10202005

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-F4070iKPX10202005

43355GDEFLECTOR, LOWER ARM ICE, RH

main43355-F4010iKPX10202005

43356EDEFLECTOR, LOWER ARM ICE, LH

main43356-F4010iKPX10202005

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iKPX10202104

(L)

main48198-47010iKPX10202005-202104

main48198-47010iKPX10202104

(J)

48231ASPRING, COIL, REAR RH

main48231-F4290iKPX10202005

48231BSPRING, COIL, REAR LH

main48231-F4210iKPX10202005

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06040iKPX10202005

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iKPX10202005

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iKPX10202005

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06040iKPX10202005

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iKPX10202104

(L)

main48409-47011iKPX10202005-202104

main48409-47011iKPX10202104

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-F9140iKPX10202005

MARK 48530-F4140

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-F9140iKPX10202005

MARK 48530-F4140

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4020iKPX10202005

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4020iKPX10202005

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-07020iKPX10202005

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-F4050iKPX10202005

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-07020iKPX10202005

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-F4030iKPX10202005

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4020iKPX10202005

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iKPX10202005

(J)

main90119-C0310iKPX10202005

(L)

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iKPX10202005

(J)

main90119-C0310iKPX10202005

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4020iKPX10202005

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-F4020iKPX10202005

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0010iKPX10202005

(L)

main94130-61200iKPX10202005

(J)

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-F4050iKPX10202005

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-F4060iKPX10202005

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4020iKPX10202005

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0010iKPX10202005

(L)

main94130-61200iKPX10202005

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-07050iKPX10202005

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-0R030iKPX10202005

48780EARM ASSY, TRAILING, REAR LH

main48780-07040iKPX10202005

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-0R030iKPX10202005

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iKPX10202005

(L)

main94151-21241iKPX10202005

(J)

9010514195

main90105-14195

9010514197

main90105-14197

90105C0241

main90105-C0241

90105C0245

main90105-C0245

9010910181

main90109-10181

90109C0060

main90109-C0060

9011912436

main90119-12436

9011912444

main90119-12444

9011912451

main90119-12451

90119C0311

main90119-C0311

90119C0528

main90119-C0528

90119C0537

main90119-C0537

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

90178C0002

main90178-C0002

90178C0053

main90178-C0053

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039

9415121441

main94151-21441

56 parts on this diagram · 1 diagram in section
