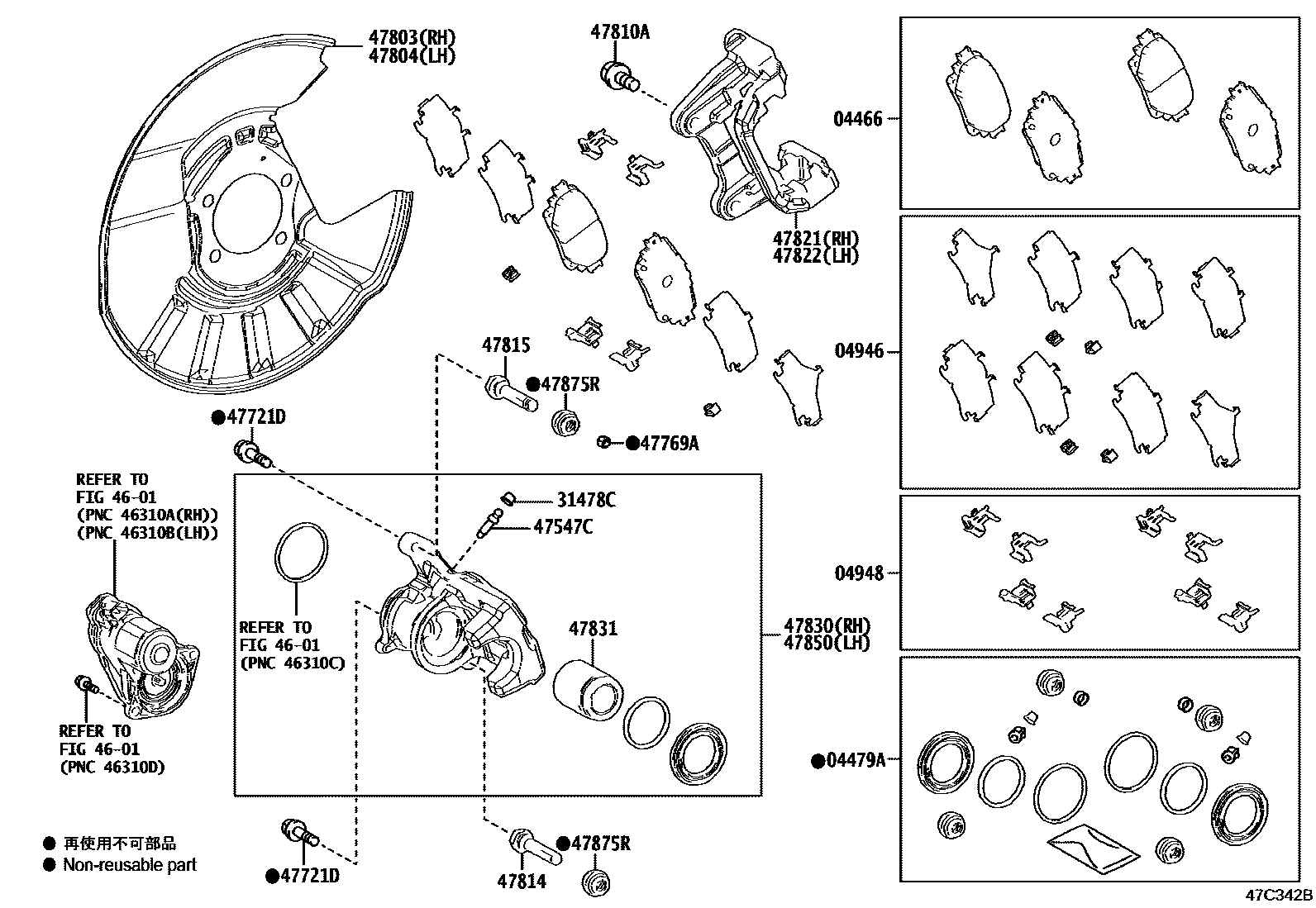

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-F4020iKPX10202005

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06401iKPX10202005

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-F4020iKPX10202005

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iKPX10202005

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iKPX10202005

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iKPX10202005

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iKPX10202005

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iKPX10202005

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-F4020iKPX10202005

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-F4020iKPX10202005

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iKPX10202005

(J)

main90105-C0255iKPX10202005

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iKPX10202005

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iKPX10202005

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42100iKPX10202005

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42090iKPX10202005

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42100iKPX10202005

47831PISTON, REAR DISC BRAKE

main47831-42100iKPX10202005-202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42090iKPX10202005

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iKPX10202005

20 parts on this diagram · 1 diagram in section
