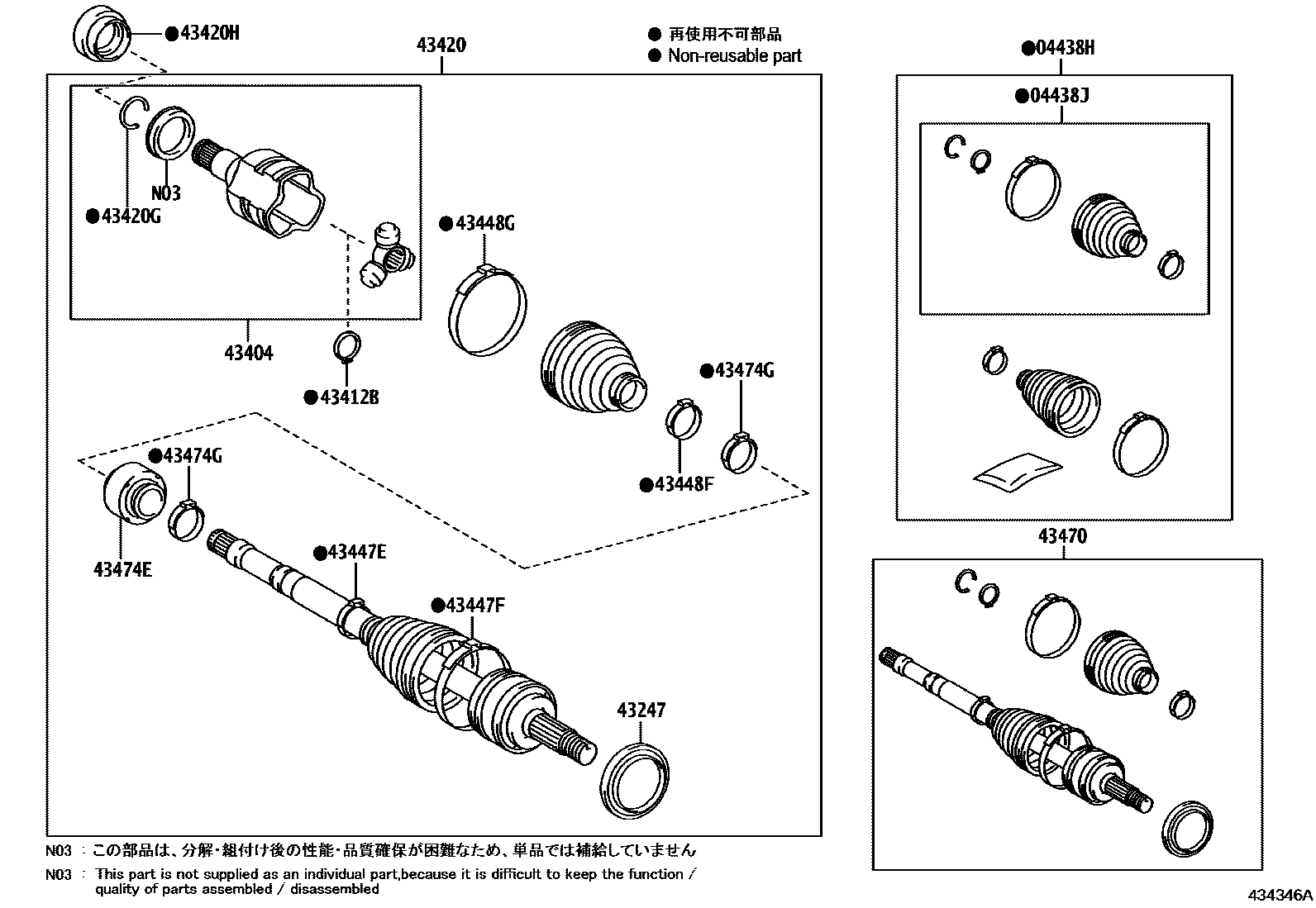

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-F4040iKPX10202005

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-02870iKPX10202005

sub04437-0R130

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-F4030iKPX10202005

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-F4020iKPX10202005

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-F4150iKPX10202005

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-F4110iKPX10202005

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-F4170iKPX10202005

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iKPX10202005

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4260iKPX10202005

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-F4270iKPX10202005

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4240iKPX10202005

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4250iKPX10202005

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-F9080iKPX10202005

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-F4130iKPX10202005

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-F4280iKPX10202005

15 parts on this diagram · 3 diagrams in section
