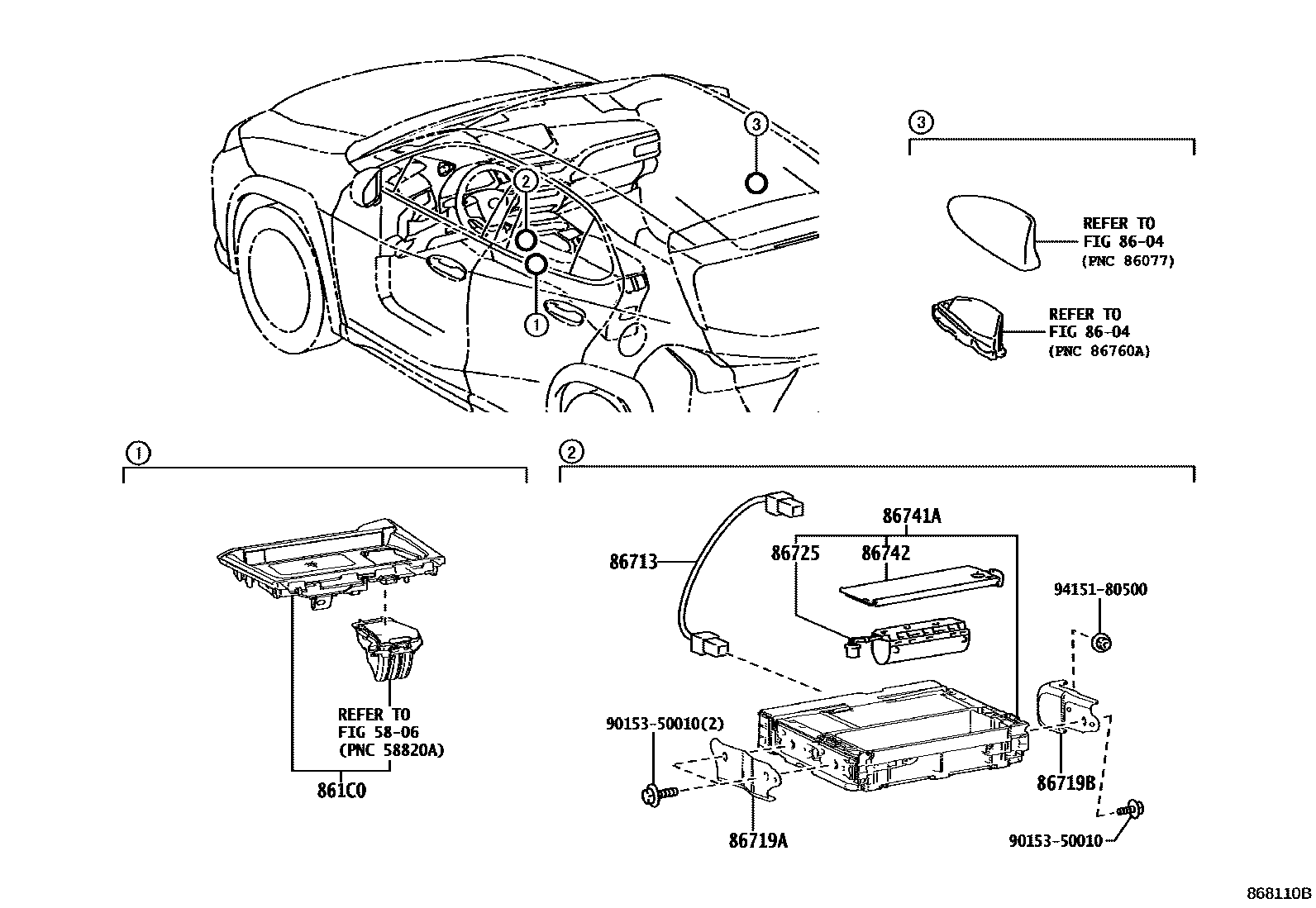

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

5806

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-76010iKMA10..RHD202011

LUXURY PACKAGE&WIRELESS CHARGER-WITH

main861C0-76020iKMA10..RHD202011

PREMIUM PACKAGE&WIRELESS CHARGER-WITH

main861C0-76031iKMA10..LHD..(EUR,GEN)202008

LUXURY PACKAGE&WIRELESS CHARGER-WITH

main861C0-76041iKMA10..LHD..(EUR,GEN)202008

PREMIUM PACKAGE&WIRELESS CHARGER-WITH

main861C0-76110iKMA10..CHI202004

LUXURY PACKAGE&WIRELESS CHARGER-WITH

main861C0-76120iKMA10..CHI202004

PREMIUM PACKAGE&WIRELESS CHARGER-WITH

86713WIRE, TELEPHONE COMPUTER

main86713-76060iKMA10..CHI202004

86719ABRACKET, TELEPHONE NO.1

main86719-76100iKMA10..RHD..EUR202011

IRELAND SPEC

main86719-76100iKMA10..RHD..EUR202011

UNITED KINGDOM SPEC

main86719-76200iKMA10..RHD..EUR202004-202108

86719BBRACKET, TELEPHONE NO.2

main86719-76110iKMA10..RHD..EUR202011

IRELAND SPEC

main86719-76110iKMA10..RHD..EUR202011

UNITED KINGDOM SPEC

main86719-76210iKMA10..RHD..EUR202004-202108

86725BATTERY, MOBILEPHONE

main86725-26010iKMA10..CHI202004

main86725-78010iKMA10..EUR202008

86741ATRANSCEIVER, TELEMATICS

main86740-42210iKMA10..RHD..EUR202108-202112

UNITED KINGDOM SPEC

sub86740-42211

main86740-42210iKMA10..RHD..EUR202008-202112

sub86740-42211

main86740-42210iKMA10..RHD..EUR202108-202112

IRELAND SPEC

sub86740-42211

main86740-42211iKMA10..RHD..EUR202201

IRELAND SPEC

main86740-42211iKMA10..LHD..EUR202201

UNITED KINGDOM SPEC

main86741-76010iKMA10..CHI202004

86742COVER, TRANSCEIVER

main86742-0D020iKMA10..EUR202008

main86742-26010iKMA10..CHI202004

9015350010

main90153-50010

9415180500

main94151-80500

11 parts on this diagram · 3 diagrams in section
