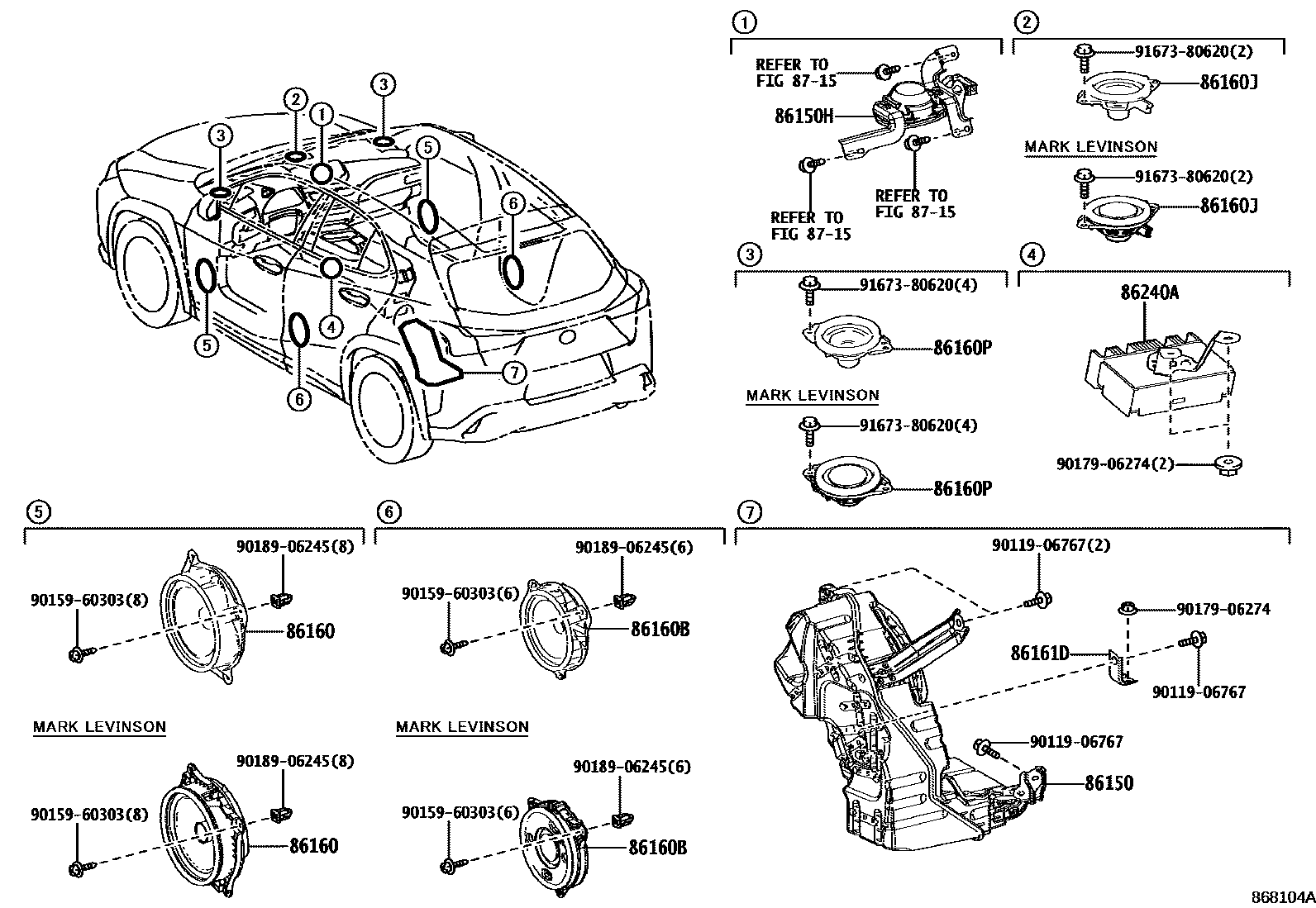

SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
LUXURY PACKAGE
86160SPEAKER ASSY, FRONT NO.1
LUXURY PACKAGE
AUDIO-*DA & 13SPEAKER
AUDIO-EMV & 13SPEAKER
86160BSPEAKER ASSY, REAR
AUDIO-EMV & 13SPEAKER
LUXURY PACKAGE
AUDIO-*DA & 13SPEAKER
86160JSPEAKER ASSY, FRONT NO.3
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
LUXURY PACKAGE
LUXURY PACKAGE
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
LUXURY PACKAGE
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
LUXURY PACKAGE
86161DBRACKET, SPEAKER MOUNTING, NO.1
AUDIO-EMV & 13SPEAKER
LUXURY PACKAGE
AUDIO-*DA & 13SPEAKER
86240AEQUALIZER ASSY,STEREO COMPONENT
sub86240-76091
UNITED KINGDOM SPEC
IRELAND SPEC
THAILAND SPEC
SINGAPORE SPEC
INDONESIA SPEC
HONG KONG SPEC
8715
9011906767
main90119-06767
9015960303
main90159-60303
9017906274
main90179-06274
9018906245
main90189-06245
9167380620
main91673-80620
14 parts on this diagram · 2 diagrams in section
