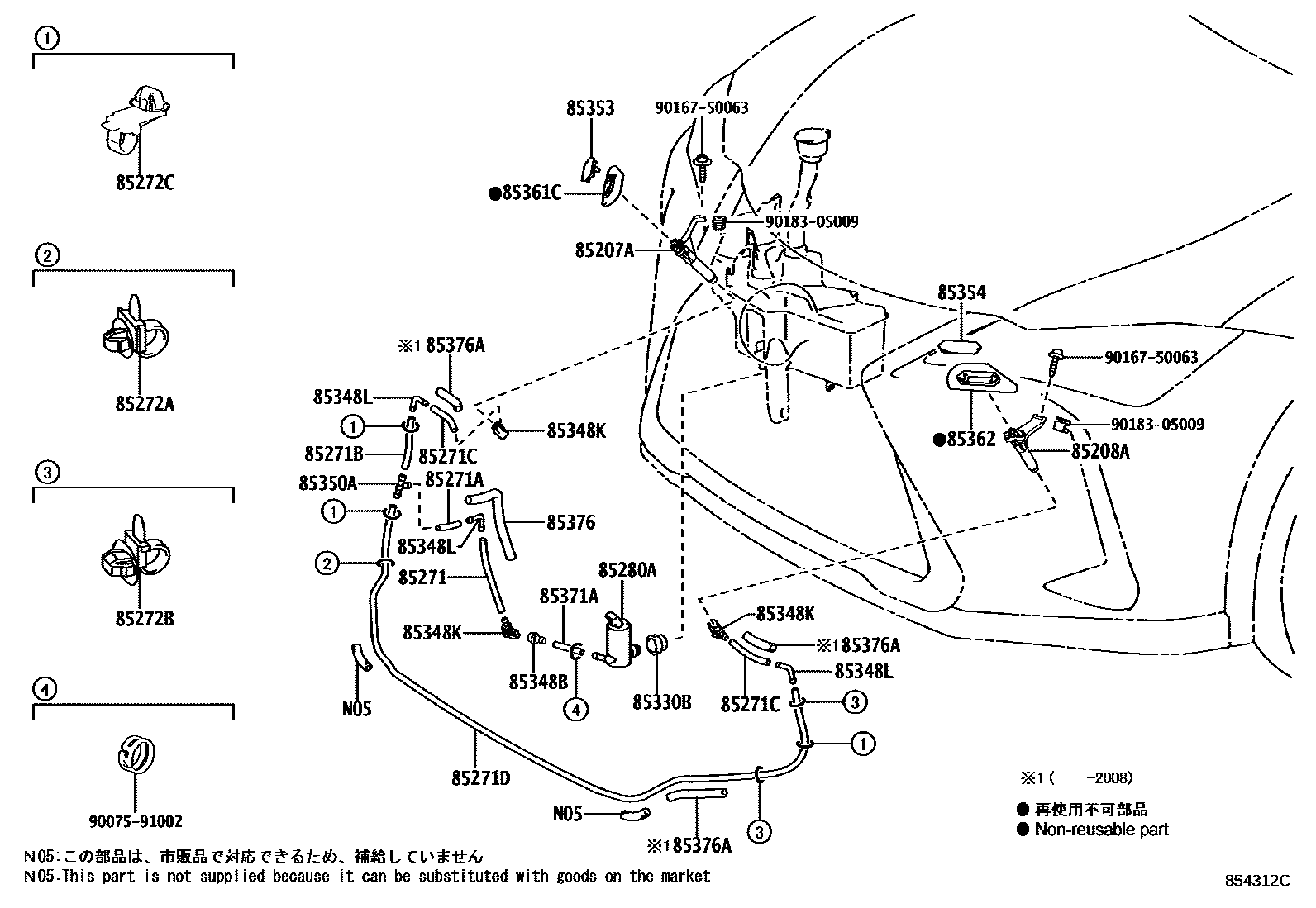

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
L=180,HEADLAMP CLEANER-WITH
L=180
85271AHOSE, HEADLAMP CLEANER, NO.2
L=65
L=65,HEADLAMP CLEANER-WITH
85271BHOSE, HEADLAMP CLEANER, NO.3
L=100,HEADLAMP CLEANER-WITH
L=100
85271CHOSE, HEADLAMP CLEANER, NO.4
L=140,HEADLAMP CLEANER-WITH
L=140
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1780,HEADLAMP CLEANER-WITH
L=1780
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP CLEANER-WITH
85272CCLAMP, HEADLAMP CLEANER, NO.3
HEADLAMP CLEANER-WITH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
HEADLAMP CLEANER-WITH
85353COVER, HEADLAMP WASHER, RH
SONIC QUARTZ,085
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9
HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7
SONIC CHROME,1L1
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1
BLACK,212
HEADLAMP CLEANER-WITH,BLACK,212
GRAPHITE BLACK GF.,223
HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223
MADDER RED,3T2
HEADLAMP CLEANER-WITH,MADDER RED,3T2
AMBER CS.,4X2
HEADLAMP CLEANER-WITH,AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6
85354COVER, HEADLAMP WASHER, LH
SONIC QUARTZ,085
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1
SONIC CHROME,1L1
BLACK,212
HEADLAMP CLEANER-WITH,BLACK,212
GRAPHITE BLACK GF.,223
HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223
HEADLAMP CLEANER-WITH,MADDER RED,3T2
MADDER RED,3T2
AMBER CS.,4X2
HEADLAMP CLEANER-WITH,AMBER CS.,4X2
HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
HEADLAMP CLEANER-WITH,TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
HEADLAMP CLEANER-WITH,CELESTIAL BLUE GF.,8Y6
85361CBRACKET, WASHER
HEADLAMP CLEANER-WITH
85362BRACKET, WASHER, NO.2
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,HEADLAMP CLEANER-WITH
L=35
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
9007591002
main90075-91002
9016750063
main90167-50063
9018305009
main90183-05009
26 parts on this diagram · 1 diagram in section
