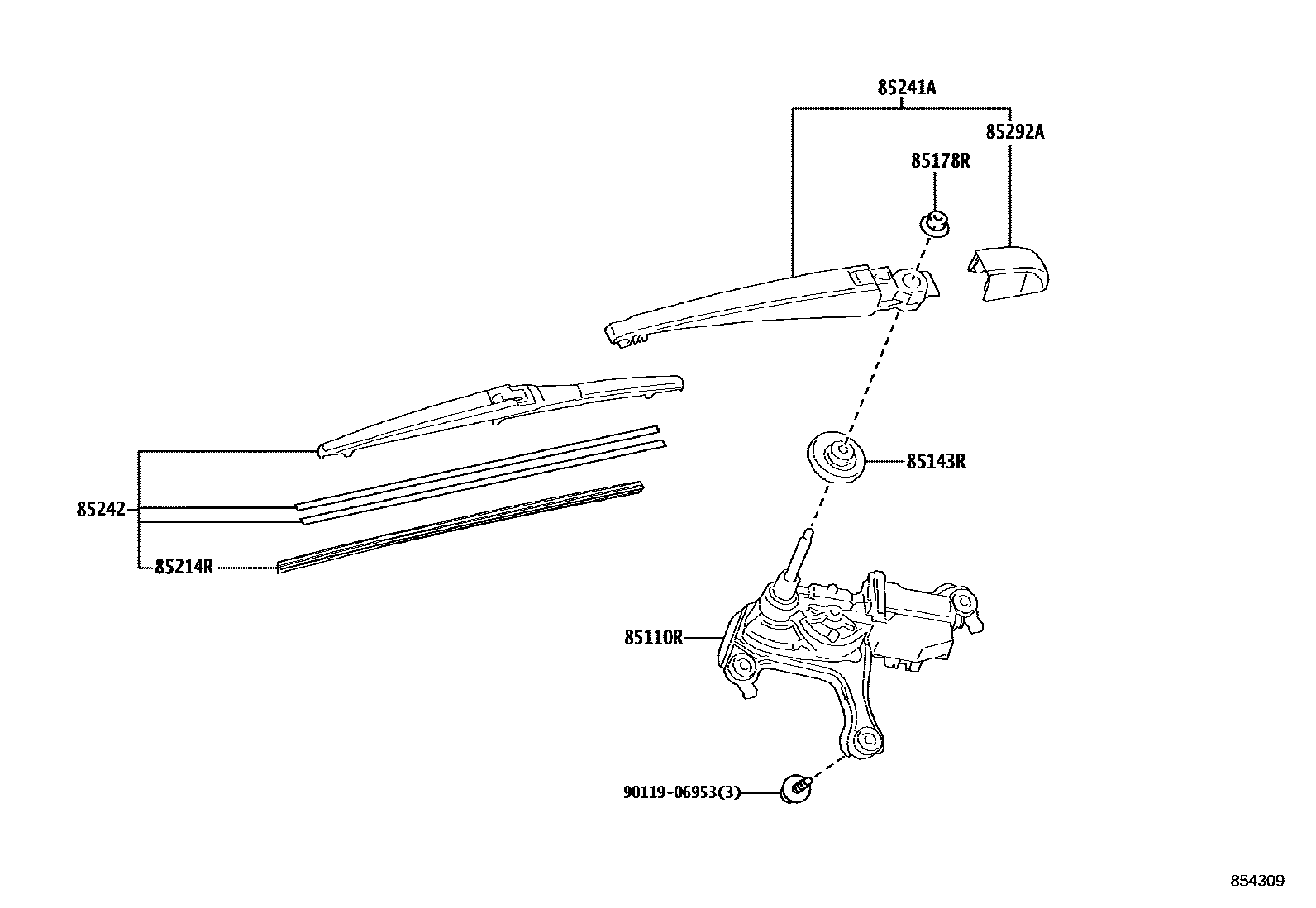

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-76020iKMA10..ARL,CHI,GEN202004

main85130-76030iKMA10..EUR202008

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iKMA10202004

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKMA10202004

85214RRUBBER, REAR WIPER

main85214-42040iKMA10202004

85241AARM, REAR WIPER

main85241-76020iKMA10202004

85242BLADE, RR WIPER

main85242-78010iKMA10202004

sub85242-72010

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iKMA10202004

9011906953

main90119-06953

8 parts on this diagram · 1 diagram in section
