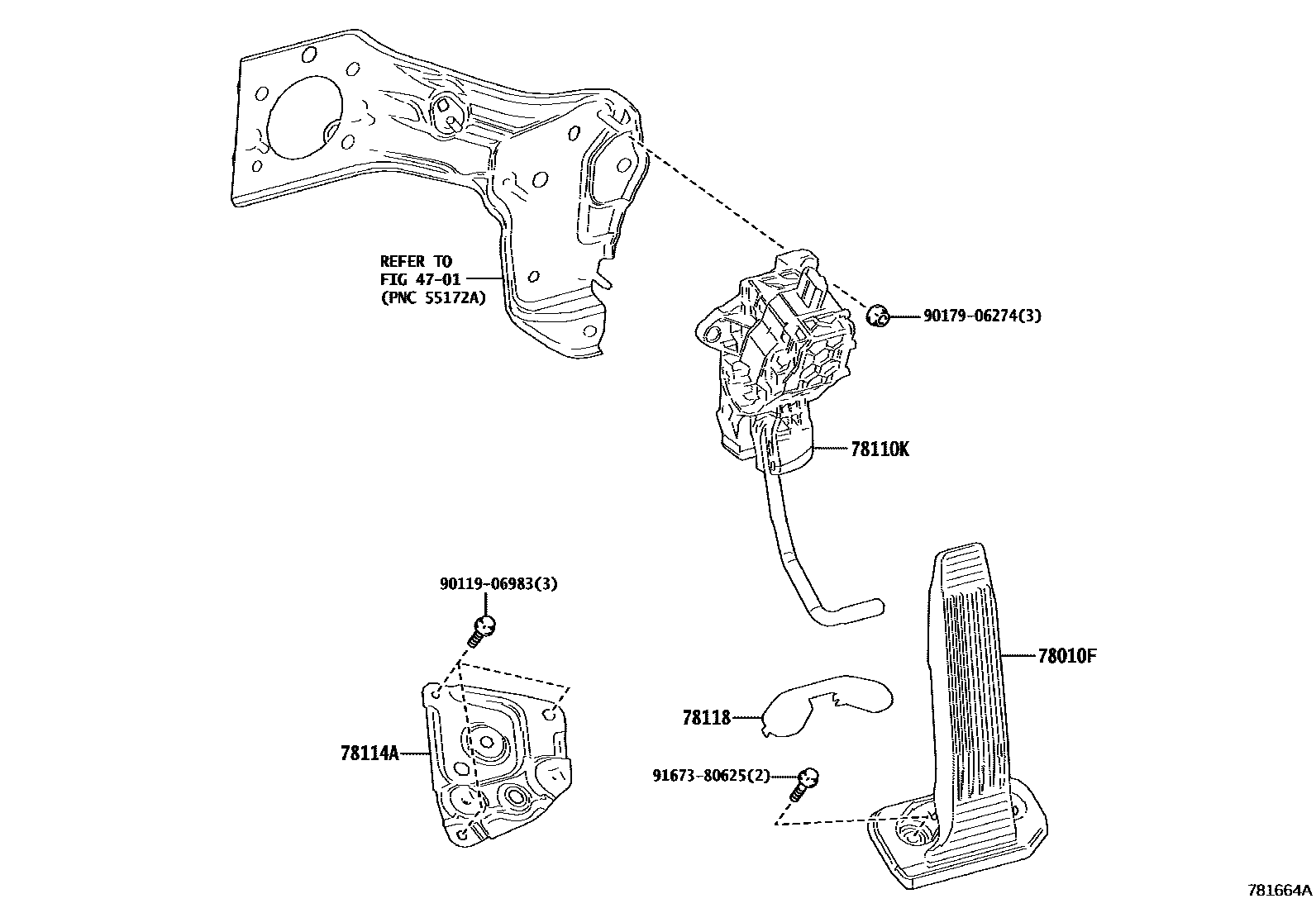

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-50050iKMA10..LHD202004

main78101-76030iKMA10..RHD202011

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-76050iKMA10202004-202009

sub78110-76051

main78110-76051iKMA10..LHD202010

main78110-76141iKMA10..RHD202011

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-76010iKMA10..LHD202004

main78114-76020iKMA10..RHD202011

78118PAD, ACCELERATOR PEDAL

main78117-11010iKMA10..LHD202004

main78117-76010iKMA10..RHD202011

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 2 diagrams in section
