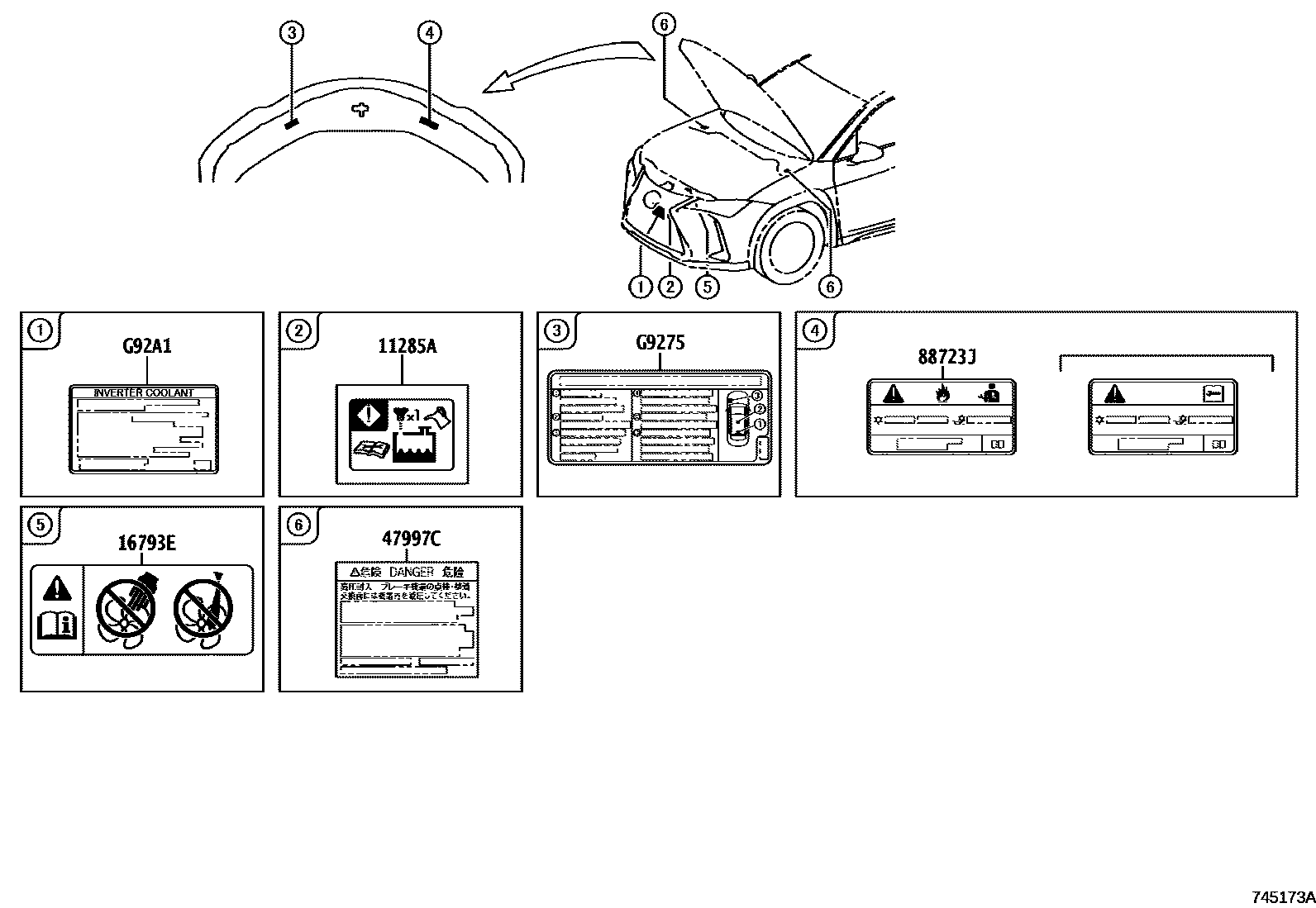

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-11020i4KM..KMA10202004

16793ELABEL, COOLING FAN CAUTION

main16793-36030i4KM..KMA10202004

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iKMA10202004

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-76090iKMA10..ARL,CHI,GEN202004

main88723-76100iKMA10..EUR202008

G9275LABEL, BATTERY CAUTION, NO.1

mainG927576060iKMA10..CHI202004

mainG927576070iKMA10..ARL,EUR,GEN202008

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iKMA10202004

6 parts on this diagram · 3 diagrams in section
