E
EPC Data

REAR SEAT & SEAT TRACK

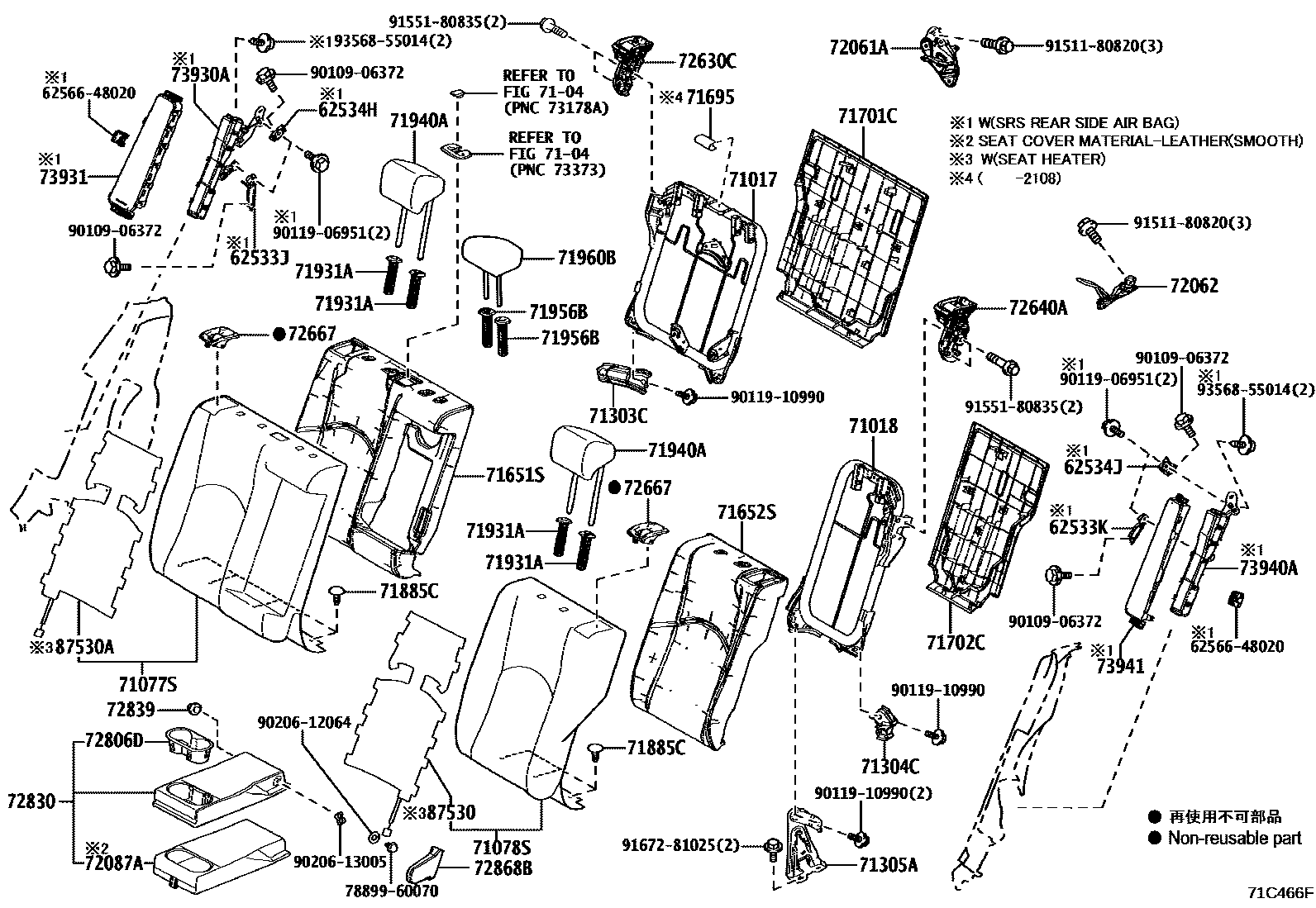

Parts diagram
62533JBRACKET, SIDE TRIM, NO.1, RH
main62533-76011i202004
62533KBRACKET, SIDE TRIM, NO.1, LH
main62533-76021i202004
62534HBRACKET, SIDE TRIM, NO.2, RH
main62534-76011i202004
62534JBRACKET, SIDE TRIM, NO.2, LH
main62534-76011i202004
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-76040i202004-202108
sub71017-76041
main71017-76041i202108
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-76030i202004-202108
sub71018-76031
main71018-76031i202108
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-76551-B9i202008-202108
CHATEAU,TRIM11
main71077-76551-C3i202008
BLACK,TRIM2#
main71077-76551-E3i202008-202108
OCHER,TRIM4#
main71077-76551-P0i202008-202108
WHITE ASH/WHITE ASH,TRIM10
main71077-76551-P0i202108
WHITE ASH/WHITE ASH,TRIM1#
main71077-76551-P1i202008-202108
WHITE ASH/BLUE,TRIM8#
main71077-76611-B9i202004-202108
CHATEAU,TRIM11
main71077-76611-C3i202004
BLACK,TRIM2#
main71077-76611-E3i202004
OCHER,TRIM4#
main71077-76611-P0i202004-202108
WHITE ASH/WHITE ASH,TRIM10
main71077-76611-P1i202004-202108
WHITE ASH/BLUE,TRIM8#
main71077-76880-B0i202108
WHITE ASH/BLUE,TRIM8#
main71077-76880-B1i202108
WHITE ASH/WHITE ASH,TRIM1#
main71077-76880-C0i202108
BLACK,TRIM2#
main71077-76880-E0i202108
OCHER,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-76431-B6i202102-202108
CHATEAU,TRIM1#
sub71078-76431
main71078-76431-B6i202008-202108
CHATEAU,TRIM11
sub71078-76431
main71078-76431-B7i202011-202102
WHITE ASH/WHITE ASH,TRIM10
sub71078-76431
main71078-76431-B8i202008-202108
WHITE ASH/BLUE,TRIM8#
sub71078-76431
main71078-76431-C2i202011-202102
BLACK,TRIM2#
sub71078-76431
main71078-76431-C5i202008
BLACK,TRIM2#
sub71078-76431
main71078-76431-E2i202008-202102
OCHER,TRIM4#
sub71078-76431
main71078-76431-E6i202102
OCHER,TRIM4#
sub71078-76431
main71078-76431-P3i202008-202108
WHITE ASH/WHITE ASH,TRIM10
sub71078-76431
main71078-76431-P3i202108
WHITE ASH/WHITE ASH,TRIM1#
sub71078-76431
main71078-76491-B1i202004-202108
WHITE ASH/BLUE,TRIM8#
sub71078-76491
main71078-76491-B4i202004-202108
CHATEAU,TRIM11
sub71078-76491
main71078-76491-B5i202004-202108
WHITE ASH/WHITE ASH,TRIM10
sub71078-76491
main71078-76491-C4i202004
BLACK,TRIM2#
sub71078-76491
main71078-76491-E4i202004
OCHER,TRIM4#
sub71078-76491
main71078-76640-B2i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH/BLUE,TRIM8#
main71078-76640-B2i202108
WHITE ASH/BLUE,TRIM8#
main71078-76640-B2i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH/BLUE,TRIM8#
main71078-76640-B3i202108
WHITE ASH/WHITE ASH,TRIM1#
main71078-76640-B3i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH/WHITE ASH,TRIM1#
main71078-76640-B3i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH/WHITE ASH,TRIM1#
main71078-76640-C1i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71078-76640-C1i202108
BLACK,TRIM2#
main71078-76640-C1i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71078-76640-E2i202108
OCHER,TRIM4#
main71078-76640-E2i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71078-76640-E2i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-76020i202004
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-76020i202004
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-47040i202004
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-76050i202004
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-76050i202004
71695PROTECTOR, REAR SEATBACK
main71695-76010i202004-202108
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-76010i202004
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-76010i202004
71885CCLIP(FOR REAR SEATBACK CARPET)
main90467-07049-23i202004
BLACK
sub90467-07049
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202011
W(LOCK),BLACK,TRIM1#,2#,4#,8#
main71930-47050-C5i202004
W(LOCK),BLACK,TRIM0#,1#,2#,4#,8#
main71931-47030-C4i202011
W/O(LOCK),BLACK,TRIM1#,2#,4#,8#
main71931-47030-C4i202004
W/O(LOCK),BLACK,TRIM0#,1#,2#,4#,8#
71940AHEADREST ASSY, REAR SEAT
main71940-76290-B2i202008-202108
CHATEAU,TRIM11
main71940-76290-B7i202108
WHITE ASH,TRIM1#
main71940-76290-B7i202008-202108
WHITE ASH,TRIM10
main71940-76290-C1i202008
BLACK,TRIM2#
main71940-76290-E0i202008-202108
OCHER,TRIM4#
main71940-76290-J0i202008-202108
BLUE,TRIM8#
main71940-76301-21i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71940-76301-21i202108
BLACK,TRIM2#
main71940-76301-21i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71940-76301-21i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71940-76301-21i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71940-76301-B0i202108
WHITE ASH,TRIM1#
main71940-76301-B0i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71940-76301-B0i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71940-76301-B0i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71940-76301-B0i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71940-76301-E1i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71940-76301-E1i202108
OCHER,TRIM4#
main71940-76301-E1i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71940-76301-E1i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71940-76301-E1i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71940-76301-J1i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71940-76301-J1i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71940-76301-J1i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71940-76301-J1i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71940-76301-J1i202108
BLUE,TRIM8#
main71940-76470-B0i202004-202108
WHITE ASH,TRIM10,W(CCC MARK)
main71940-76470-B1i202004-202108
CHATEAU,TRIM11,W(CCC MARK)
main71940-76470-C0i202004
BLACK,TRIM2#,W(CCC MARK)
main71940-76470-E0i202004
OCHER,TRIM4#,W(CCC MARK)
main71940-76470-J0i202004-202108
BLUE,TRIM8#,W(CCC MARK)
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202004
W(LOCK),BLACK,TRIM0#,1#,2#,4#,8#
main71930-47050-C5i202011
W(LOCK),BLACK,TRIM1#,2#,4#,8#
main71931-47030-C4i202011
W/O(LOCK),BLACK,TRIM1#,2#,4#,8#
main71931-47030-C4i202004
W/O(LOCK),BLACK,TRIM0#,1#,2#,4#,8#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-76190-B2i202008-202108
CHATEAU,TRIM11
main71960-76190-B4i202108
WHITE ASH,TRIM1#
main71960-76190-B4i202008-202108
WHITE ASH,TRIM10
main71960-76190-C2i202008
BLACK,TRIM2#
main71960-76190-E0i202008-202108
OCHER,TRIM4#
main71960-76190-J0i202008-202108
BLUE,TRIM8#
main71960-76201-B0i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71960-76201-B0i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71960-76201-B0i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71960-76201-B0i202108
WHITE ASH,TRIM1#
main71960-76201-B0i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71960-76201-C9i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71960-76201-C9i202108
BLACK,TRIM2#
main71960-76201-C9i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71960-76201-C9i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71960-76201-C9i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71960-76201-E1i202108
OCHER,TRIM4#
main71960-76201-E1i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71960-76201-E1i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71960-76201-E1i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71960-76201-E1i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main71960-76201-J1i202108
BLUE,TRIM8#
main71960-76201-J1i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71960-76201-J1i202108
THAILAND SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71960-76201-J1i202108
PREMIUM PACKAGE&CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71960-76201-J1i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main71960-76240-B1i202004-202108
CHATEAU,TRIM11,W(CCC MARK)
main71960-76240-B2i202004-202108
WHITE ASH,TRIM10,W(CCC MARK)
main71960-76240-C0i202004
BLACK,TRIM2#,W(CCC MARK)
main71960-76240-E0i202004
OCHER,TRIM4#,W(CCC MARK)
main71960-76240-J0i202004-202108
BLUE,TRIM8#,W(CCC MARK)
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
main72061-76020i202004
main72061-76030i202008-202111
main72061-76031i202112
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
main72062-76020i202004
72087ACOVER SUB-ASSY, REAR SEAT CENTER ARMREST
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47050-B1i202108
WHITE ASH,TRIM1#
sub72630-47050
main72630-47050-B1i202004
WHITE ASH,TRIM10
sub72630-47050
main72630-47050-C2i202004
BLACK,TRIM0#,11,2#
sub72630-47050
main72630-47050-C2i202108
BLACK,TRIM0#,2#
sub72630-47050
main72630-47050-E1i202004
OCHER,TRIM4#
sub72630-47050
main72630-47050-J1i202004
BLUE,TRIM8#
sub72630-47050
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47050-B1i202108
WHITE ASH,TRIM1#
sub72640-47050
main72640-47050-B1i202004
WHITE ASH,TRIM10
sub72640-47050
main72640-47050-C2i202004
BLACK,TRIM0#,11,2#
sub72640-47050
main72640-47050-C2i202108
BLACK,TRIM0#,2#
sub72640-47050
main72640-47050-E1i202004
OCHER,TRIM4#
sub72640-47050
main72640-47050-J1i202004
BLUE,TRIM8#
sub72640-47050
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-47010-B1i202004
WHITE ASH,TRIM10
main72667-47010-B1i202108
WHITE ASH,TRIM1#
main72667-47010-C1i202108
BLACK,TRIM0#,2#
main72667-47010-C1i202004
BLACK,TRIM0#,11,2#
main72667-47010-E1i202004
OCHER,TRIM4#
main72667-47010-J1i202004
BLUE,TRIM8#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-47010-C1i202011
BLACK,TRIM1#,2#,4#,8#
main72806-47010-C1i202004
BLACK,TRIM0#,1#,2#,4#,8#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-76010-C8i202004
BLACK,TRIM2#
main72830-76010-E8i202004-202108
OCHER,TRIM4#
main72830-76010-J8i202004-202108
BLUE,TRIM8#
main72830-76010-P1i202108
WHITE ASH,TRIM1#
main72830-76010-P1i202004-202108
WHITE ASH,TRIM10
main72830-76010-P2i202004-202108
CHATEAU,TRIM11
main72830-76020-B6i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main72830-76020-B6i202108
WHITE ASH,TRIM1#
main72830-76020-B6i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main72830-76020-C6i202108
BLACK,TRIM2#
main72830-76020-C6i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main72830-76020-C6i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main72830-76020-E6i202108
OCHER,TRIM4#
main72830-76020-E6i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main72830-76020-E6i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),OCHER,TRIM4#
main72830-76020-J6i202108
BLUE,TRIM8#
main72830-76020-J6i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
main72830-76020-J6i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLUE,TRIM8#
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i202004
72868BCOVER, CENTER ARMREST HINGE
main72868-12080-C0i202004
BLACK,TRIM0#,1#,2#,4#,8#
main72868-12080-C0i202011
BLACK,TRIM1#,2#,4#,8#
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-76010i202004-202207
sub73930-76011
main73930-76011i202208
73931COVER, REAR SEAT AIRBAG DOOR, RH
main73931-76010i202004
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-76010i202004-202207
sub73940-76011
main73940-76011i202208
73941COVER, REAR SEAT AIRBAG DOOR, LH
main73941-76010i202004
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
main87530-76050i202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)
main87530-76050i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
main87530-76050i202108
HONG KONG SPEC&LUXURY PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-LEATHER(SMOOTH)
main87530-76050i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-76040i202108
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
main87530-76040i202108
HONG KONG SPEC&LUXURY PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-LEATHER(SMOOTH)
main87530-76040i202108
HONG KONG SPEC&PREMIUM PACKAGE&CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
main87530-76040i202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)
6256648020GARNISH, REAR SEAT SIDE, LH
main62566-48020
7889960070BOLT, FRONT SEAT
main78899-60070
9010906372
main90109-06372
9011906951
main90119-06951
9011910990
main90119-10990
9020612064
main90206-12064
9020613005
main90206-13005
9151180820
main91511-80820
9155180835
main91551-80835
9167281025
main91672-81025
9356855014
main93568-55014

49 parts on this diagram · 2 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
