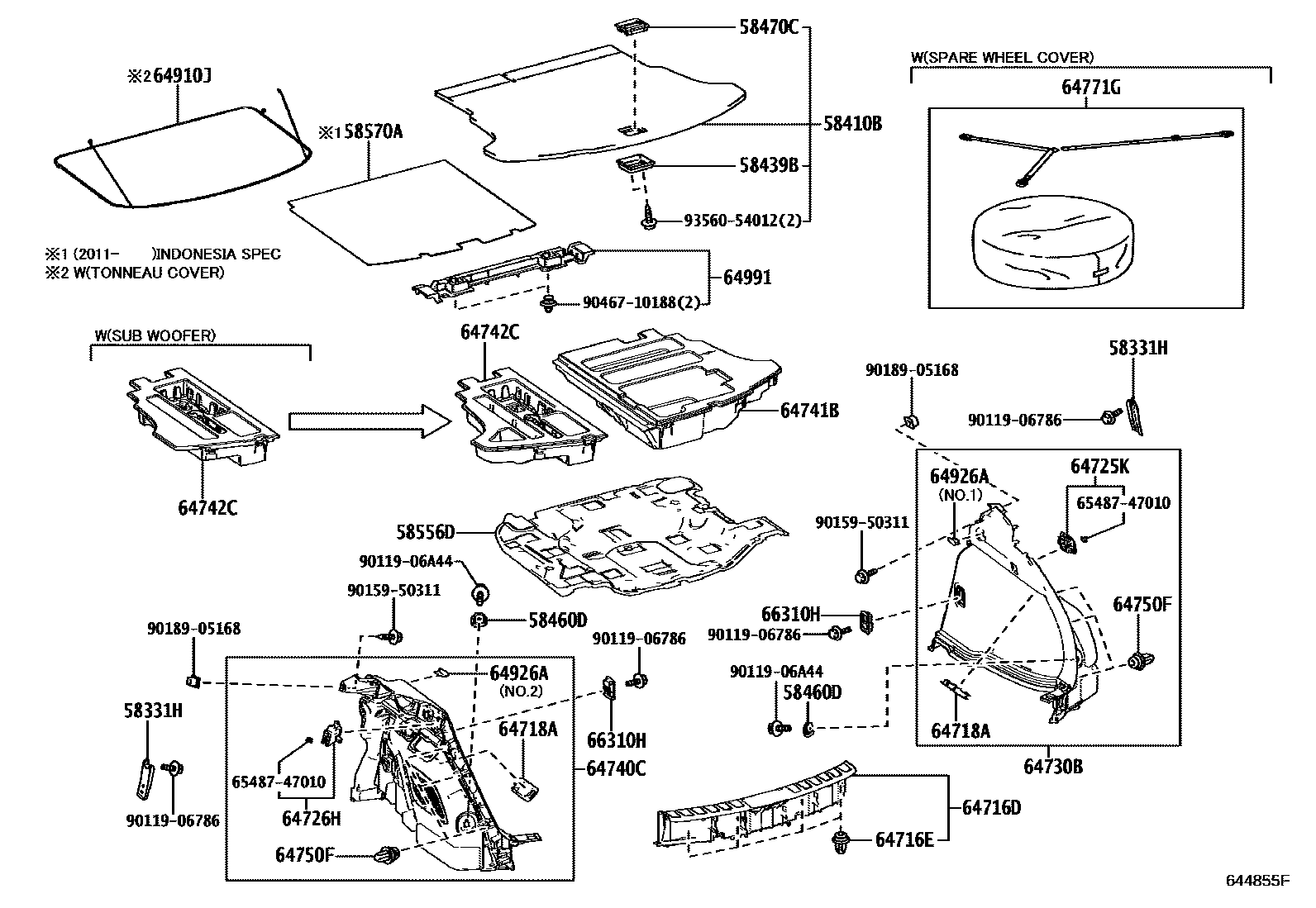

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58410BBOARD ASSY, DECK
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#,8#
AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#,8#
LUXURY PACKAGE,BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
58439BPROTECTOR, DECK BOARD, NO.1
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
58556DSILENCER, REAR FLOOR
sub5856A-76020
58570AMAT ASSY, REAR FLOOR
INDONESIA SPEC
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM0#,1#,2#,4#,8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,4#,8#
64725KHOOK, DECK SIDE TRIM, NO.1
BLACK,TRIM0#,1#,2#,4#,8#
64726HHOOK, DECK SIDE TRIM, NO.2
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM1#,2#,4#,8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#,8#
AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,4#,8#
LUXURY PACKAGE,BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
AUDIO-EMV & 13SPEAKER
AUDIO-*DA & 13SPEAKER
LUXURY PACKAGE
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64771GCOVER, SPARE WHEEL
INDONESIA SPEC
64910JCOVER ASSY, TONNEAU
TONNEAU COVER-WITH
64926AHOOK, TONNEAU
BLACK,TRIM0#,1#,2#,4#,8#,NO.1:REFER ILLUST.
BLACK,TRIM0#,1#,2#,4#,8#,NO.2:REFER ILLUST.
BLACK,TRIM1#,2#,4#,8#,NO.2:REFER ILLUST.
64991BOX, DECK FLOOR, FRONT
66310HHOOK ASSY, ROPE
6548747010CLIP, CORNER PROTECTOR
main65487-47010
9011906786
main90119-06786
9011906A44
main90119-06A44
9015950311
main90159-50311
9018905168
main90189-05168
9046710188
main90467-10188
9356054012
main93560-54012
29 parts on this diagram · 1 diagram in section
