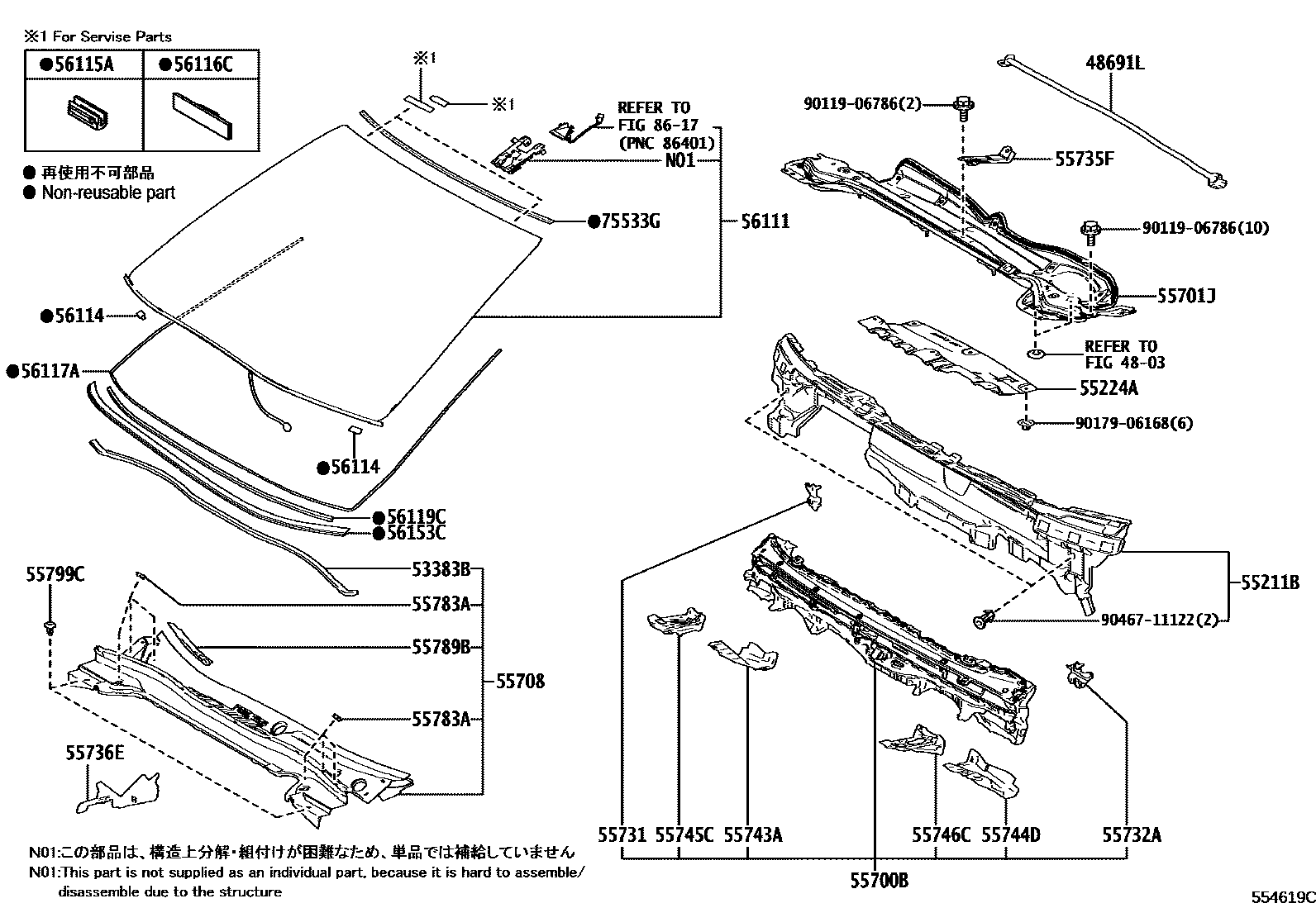

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

4803

48691LDAMPER OR ROD, FRONT PERFORMANCE

main48691-76040iKMA10202004

53383BSEAL, HOOD TO COWL TOP

main53383-76030iKMA10202004

55211BSILENCER, FRONT PANEL

main55211-76030iKMA10..LHD202004

main55211-76040iKMA10..RHD202011

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-76020iKMA10..LHD202004

main55224-76030iKMA10..RHD202011

55700BCOWL ASSY

main55700-76030iKMA10..LHD202004

main55700-76040iKMA10..RHD202011

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-76030iKMA10..LHD202004

main55701-76040iKMA10..RHD202011

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-76050iKMA10..LHD202004

main55708-76070iKMA10..RHD202011

55731BRACKET, COWL BODY MOUNTING, UPPER RH

main55731-76020iKMA10202004

55732ABRACKET, COWL BODY MOUNTING, UPPER LH

main55732-76020iKMA10202004

55735FREINFORCEMENT, COWL BODY MOUNTING

main55735-76020iKMA10202004

55736EPLATE, WATER GUIDE, RH

main55737-76030iKMA10..LHD202004

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-76020iKMA10202004

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-76020iKMA10202004

55745CREINFORCEMENT, COWL TOP, INNER RH

main55745-76010iKMA10202004

55746CREINFORCEMENT, COWL TOP, INNER LH

main55746-76010iKMA10202004

55783APAD, COWL TOP SILENCER

main55783-48070iKMA10202004

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-76030iKMA10202004

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iKMA10202004

56111GLASS, WINDSHIELD

main56101-76907iKMA10..CHI202004

main56101-76988iKMA10..RHD..(ARL,EUR)202108

PREMIUM PACKAGE

main56101-76992iKMA10..RHD..GEN202108

main56101-76994iKMA10..LHD..GEN202108

DENMARK SPEC

56114RETAINER, WINDSHIELD GLASS

main56114-30120iKMA10..ARL,CHI;KMA10..LHD..GEN202004

main56114-30120iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC

main56114-30120iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE

main56114-30120iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56114-30120iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&COLD AREA SPEC

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKMA10..ARL,CHI;KMA10..LHD..GEN202004

main56115-30100iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC

main56115-30100iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE

main56115-30100iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56115-30100iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&COLD AREA SPEC

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKMA10..ARL,CHI;KMA10..LHD..GEN202004

main56116-22050iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC

main56116-22050iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE

main56116-22050iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56116-22050iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&COLD AREA SPEC

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,PREMIUM PACKAGE

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,PREMIUM PACKAGE&COLD AREA SPEC

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,PREMIUM PACKAGE&COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,PREMIUM PACKAGE&HEAD-UP DISPLAY-WITH

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,LUXURY PACKAGE

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,LUXURY PACKAGE&COLD AREA SPEC

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,LUXURY PACKAGE&COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,LUXURY PACKAGE&HEAD-UP DISPLAY-WITH

main56117-64010iKMA10..ARL,CHI;KMA10..LHD..GEN202004

*D,L=2902,COLD AREA SPEC

main56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,DENMARK SPEC

main56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,DENMARK SPEC&LUXURY PACKAGE

main56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56117-64010iKMA10..RHD..(EUR,GEN)202108

*D,L=2902,DENMARK SPEC&COLD AREA SPEC

56119CSEAL, WINDSHIELD GLASS

main56119-76020iKMA10..ARL,CHI;KMA10..LHD..GEN202004

main56119-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC

main56119-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE

main56119-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main56119-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&COLD AREA SPEC

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-76010iKMA10..LHD..(CHI,GEN)202004

main56153-76020iKMA10..RHD202108

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-76020iKMA10..ARL,CHI;KMA10..LHD..GEN202004

main75533-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC

main75533-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE

main75533-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&LUXURY PACKAGE&COLD AREA SPEC

main75533-76020iKMA10..RHD..(EUR,GEN)202108

DENMARK SPEC&COLD AREA SPEC

8617

9011906786

main90119-06786

9017906168

main90179-06168

9046711122

main90467-11122

31 parts on this diagram · 2 diagrams in section
