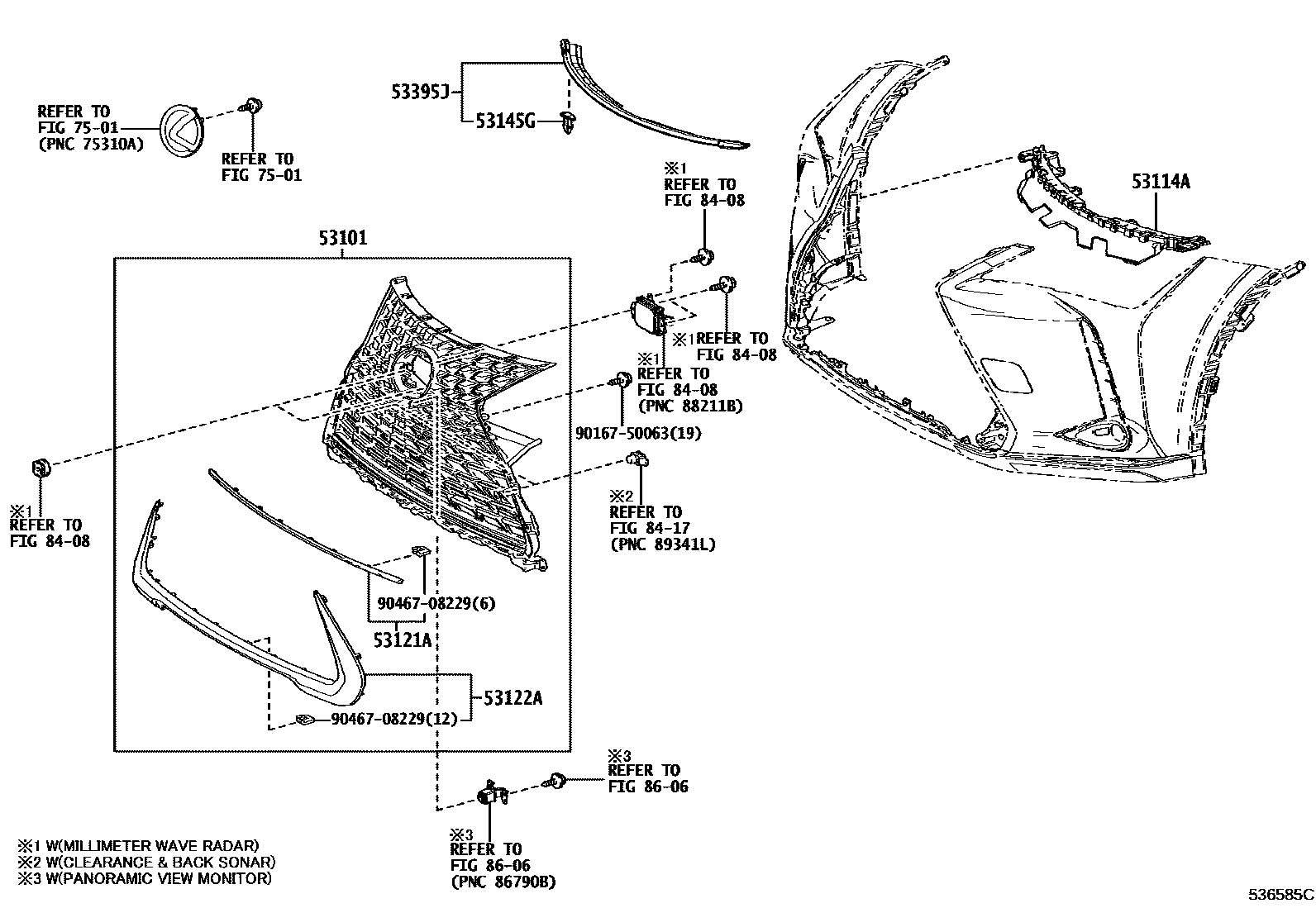

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-76220iKMA10..CHI202004-202108

PLATED

main53101-76310iKMA10..EUR,GEN202008-202108

PLATED

main53101-76620iKMA10..CHI202108

PLATED

main53101-76650iKMA10..ARL,EUR,GEN202108

PLATED

53114AGRILLE, RADIATOR, INNER

main53114-76010iKMA10202004

53121AMOULDING, RADIATOR GRILLE

main53123-76020iKMA10202004

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-76060iKMA10202004

53145GCLIP, RADIATOR GRILLE

main53145-60030iKMA10202004

53395JSEAL, HOOD TO FRONT END PANEL

main53395-76030iKMA10202004

7501

8408

8417

8606

9016750063

main90167-50063

9046708229

main90467-08229

12 parts on this diagram · 1 diagram in section
