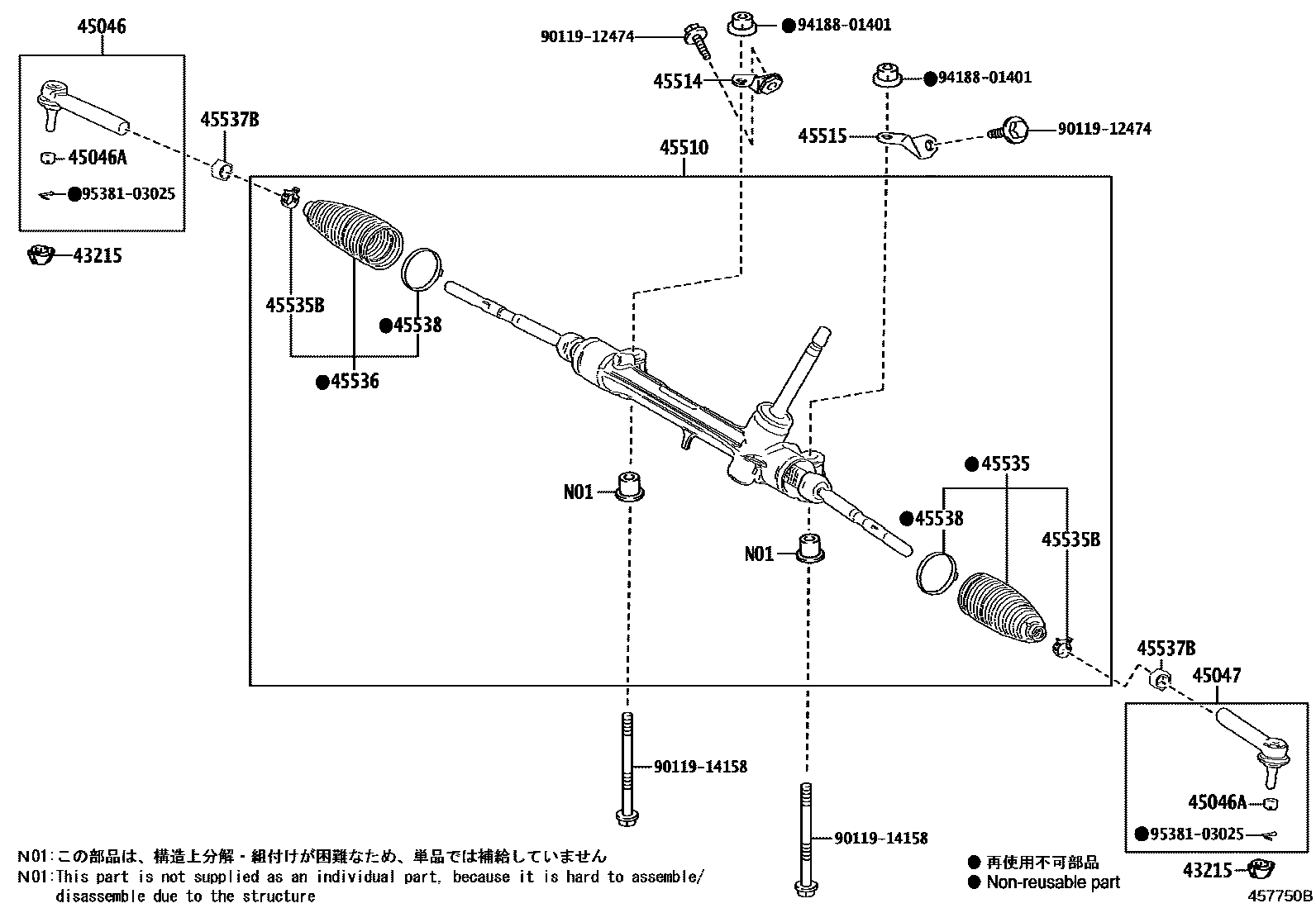

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iKMA10202004

45046END SUB-ASSY, TIE ROD, RH

main45046-79035iKMA10202004

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKMA10202004

45047END SUB-ASSY, TIE ROD, LH

main45046-79035iKMA10202004

45510GEAR ASSY, STEERING

main45510-76080iKMA10..LHD202004

main45510-76090iKMA10..RHD202011

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-76020iKMA10202004

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-76010iKMA10202004

45535BOOT, STEERING RACK, NO.1

main45535-59075iKMA10202004

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iKMA10202004

45536BOOT, STEERING RACK, NO.2

main45535-59075iKMA10202004

45537BNUT, RACK END LOCK

main90178-16001iKMA10202004

45538RETAINER, STEERING RACK BOOT

main45538-48020iKMA10202004

9011912474

main90119-12474

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

16 parts on this diagram · 2 diagrams in section
