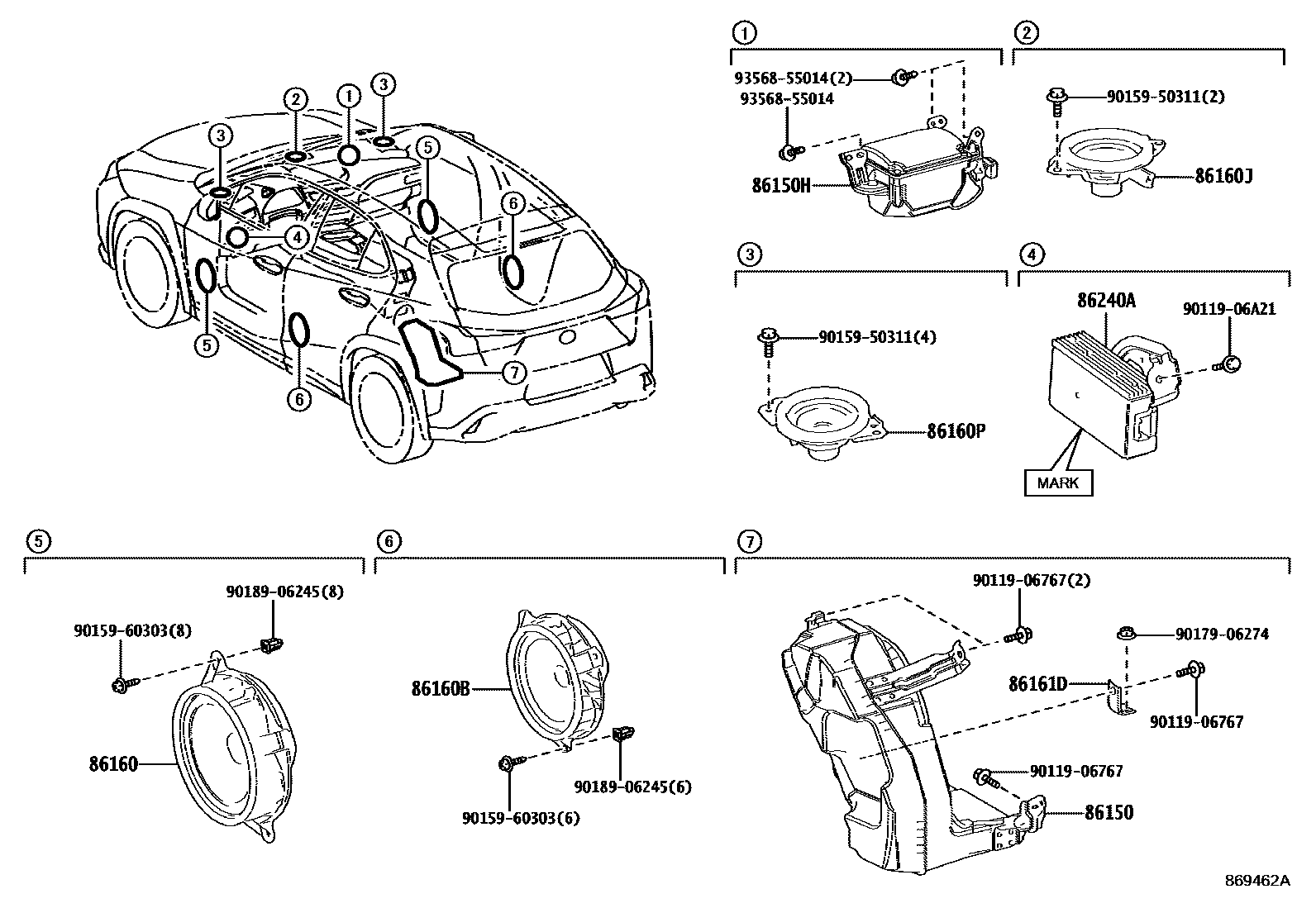

SPEAKER

0001 1 0002 1 0003 1 0004 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W410iKMA10..EUR202303-202512

AUDIO-EMV & 13SPEAKER

main86150-0W410iKMA10..ARL202303-202512

LUXURY PACKAGE

main86150-76030iMZAH11,16..ARL202207

AUDIO-EMV & 10SPEAKER

main86150-76030iMZAH10..CHI202207

AUDIO-*DA & 10SPEAKER

86150HSPEAKER ASSY, W/BRACKET

main86150-76060iKMA10..LHD202303-202512

main86150-76070iKMA10..RHD202303-202512

86160SPEAKER ASSY, FRONT NO.1

main86160-0WS30iKMA10..ARL202401-202512

AUDIO-EMV & 13SPEAKER

main86160-0WS30iKMA10..ARL202303-202512

LUXURY PACKAGE

main86160-76160iMZAH11..CHI202207-202512

86160BSPEAKER ASSY, REAR

main86150-0W640iKMA10..EUR;MZAH11,16..LHD..GEN202303-202512

LUXURY PACKAGE

main86150-0W640iKMA10..ARL202401-202512

AUDIO-EMV & 13SPEAKER

main86160-30F40iMZAH11,16..ARL,EUR,GCC,GEN202207-202512

86160JSPEAKER ASSY, FRONT NO.3

main86160-30F20iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 10SPEAKER

main86160-30F20iMZAA10,MZAH10,15..ARL202207

AUDIO-EMV & 10SPEAKER

main86160-76150iMZAH11..CHI202401-202512

main86160-78090iKMA10..RHD..GEN202401-202512

AUDIO-EMV & 13SPEAKER

main86160-78090iKMA10..ARL202303-202512

LUXURY PACKAGE

86160PSPEAKER ASSY, FRONT NO.2

main86160-30F30iMZAH10..CHI202207

AUDIO-*DA & 10SPEAKER

main86160-30F30iMZAA10,MZAH10,15..CHI,EUR,GCC,GEN202207

AUDIO-EMV & 10SPEAKER

main86160-76150iKMA10,MZAA10,MZAH10,15..CHI,EUR,GCC,GEN202207

main86160-78090iKMA10..GEN202303-202512

LUXURY PACKAGE

main86160-78090iKMA10..ARL202401-202512

AUDIO-EMV & 13SPEAKER

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76030iMZAA10,MZAH10,15..EUR,GCC,GEN202207-202512

AUDIO-EMV & 13SPEAKER

main86161-76030iMZAA10,MZAH10,15..EUR,GCC,GEN202207

AUDIO-*DA & 13SPEAKER

main86161-76030iMZAA10,MZAH10,15..LHD..(CHI,EUR,GCC)202207

AUDIO-*DA & 10SPEAKER

main86161-76030iMZAA10,MZAH10,15..LHD..(CHI,EUR,GCC)202207

AUDIO-EMV & 10SPEAKER

main86161-76030iKMA10..ARL202401-202512

LUXURY PACKAGE

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-76091iKMA10..LHD202303-202401

main86240-76100iKMA10..RHD202303-202401

main86240-76140iKMA10..LHD202401-202512

main86240-76150iKMA10..RHD202401-202512

9011906767

main90119-06767

9011906A21

main90119-06A21

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

9356855014

main93568-55014

15 parts on this diagram · 4 diagrams in section
