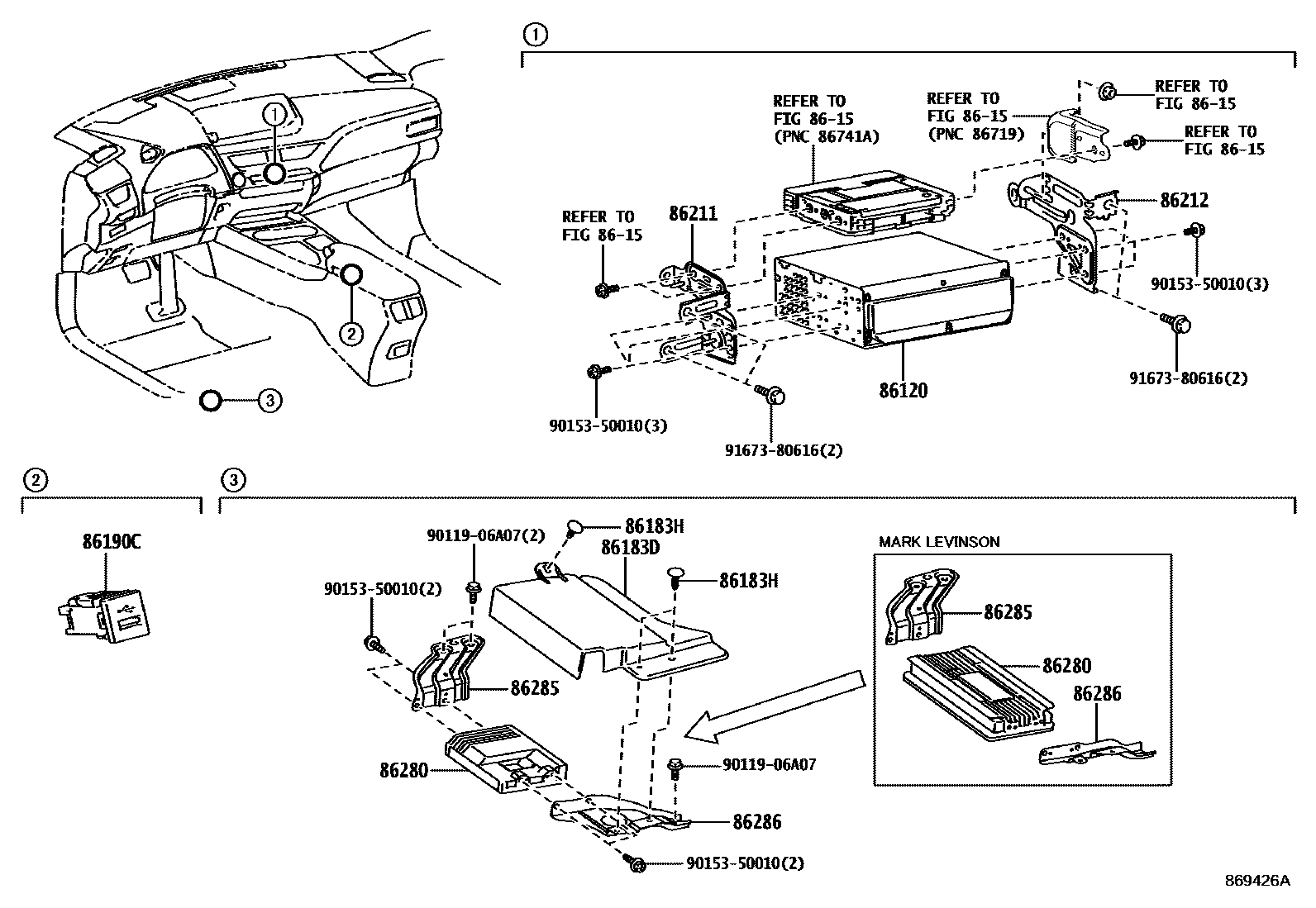

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER & AMPLIFIER 0002 1RECEIVER & AMPLIFIER 0003 1RECEIVER & AMPLIFIER 0004 1RECEIVER & AMPLIFIER 0005 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-76880iMZAA10,MZAH1#..LHD..EUR202207-202208

PANASONIC

main86120-76881iMZAA10,MZAH1#..LHD..EUR202209-202302

PANASONIC

sub86120-76882

main86120-76882iMZAA10,MZAH10,15..LHD..EUR202303

PANASONIC

main86120-76890iMZAH10,15..RHD..EUR202207

PANASONIC

main86120-76A10iMZAA10..GCC202207

PANASONIC

main86120-76A20iMZAA10..GCC202207

PANASONIC

main86120-76A20iMZAA10..GCC202207

PANASONIC,QATAR SPEC

main86120-76A20iMZAA10..GCC202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-BAHRAIN, OMAN SPEC

main86120-76A50iMZAA10..RHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main86120-76A50iMZAA10..RHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC

main86120-76A50iMZAA10,MZAH10..RHD..GEN202207

PANASONIC

main86120-76A50iMZAA10,MZAH10..RHD..GEN202207

PANASONIC,THAILAND SPEC

main86120-76A50iMZAA10,MZAH10..RHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC

main86120-76A50iMZAA10,MZAH10..RHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC

main86120-76B30iMZAA10,MZAH10..LHD..GEN202207

PANASONIC,PANAMA SPEC

main86120-76B30iMZAH15..LHD..GEN202207

PANASONIC

main86120-76B30iMZAH15..LHD..GEN202207

PANASONIC,PERU SPEC

main86120-76B30iMZAH15..LHD..GEN202207

PANASONIC,GUATEMALA SPEC

main86120-76B30iMZAH15..LHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main86120-76B30iMZAH15..LHD..GEN202207

PANASONIC,DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main86120-76B50iMZAH10..CHI202207

DENSO TEN

main86120-76G20iMZAA10,MZAH10..RHD..GEN202207

DENSO TEN

main86120-76G30iMZAA10,MZAH10..LHD..GEN202207

DENSO TEN

main86120-76G51iKMA10..LHD..EUR202303-202401

PANASONIC

main86120-76P10iKMA10..LHD..GEN202303-202401

DENSO TEN

main86120-76P70iKMA10..RHD..EUR202303-202401

PANASONIC

main86120-76Q70iMZAH11,16..LHD..EUR202401-202404

PANASONIC

main86120-76Q71iMZAH11,16..LHD..EUR202405-202411

PANASONIC

main86120-76Q72iMZAH11,16..LHD..EUR202412

PANASONIC

main86120-76R30iMZAH11,16..RHD..EUR202401-202404

PANASONIC

main86120-76R31iMZAH11,16..RHD..EUR202405

PANASONIC

main86120-76R50iMZAH11..GCC202401-202412

PANASONIC

main86120-76R51iMZAH11..GCC202501

PANASONIC

main86120-76R80iMZAH11..RHD..GEN202401-202404

PANASONIC

sub86120-76R81

main86120-76R80iMZAH11..RHD..GEN202401-202404

PANASONIC,AUDIO-EMV & 10SPEAKER

sub86120-76R81

main86120-76R80iMZAH11..RHD..GEN202401-202404

PANASONIC,AUDIO-EMV & 13SPEAKER

sub86120-76R81

main86120-76R81iMZAH11..RHD..GEN202404-202412

PANASONIC,AUDIO-EMV & 10SPEAKER

main86120-76R81iMZAH11..RHD..GEN202404-202412

PANASONIC

main86120-76R81iMZAH11..RHD..GEN202404-202412

PANASONIC,AUDIO-EMV & 13SPEAKER

main86120-76R82iMZAH11..RHD..GEN202501

PANASONIC

main86120-76R82iMZAH11..RHD..GEN202501

PANASONIC,AUDIO-EMV & 13SPEAKER

main86120-76R82iMZAH11..RHD..GEN202501

PANASONIC,AUDIO-EMV & 10SPEAKER

main86120-76S00iMZAH16..GEN202401

PANASONIC,ARGENTINA SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC

main86120-76S00iMZAH16..GEN202401

PANASONIC,PERU SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC,GUATEMALA SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC,PANAMA SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC,DOMINICA SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC,CHILE SPEC

main86120-76S00iMZAH16..GEN202401

PANASONIC,COSTA RICA SPEC

main86120-76S10iMZAH11..CHI202401-202501

DENSO TEN

main86120-76S40iMZAH11..LHD..GEN202401

DENSO TEN

main86120-76T00iKMA10..LHD..EUR202401-202410

PANASONIC

main86120-76T01iKMA10..LHD..EUR202411-202412

PANASONIC

main86120-76T02iKMA10..LHD..EUR202412

PANASONIC

main86120-76T10iKMA10..RHD..GEN202401-202404

PANASONIC

sub86120-76T11

main86120-76T10iKMA10..RHD..GEN202401-202404

PANASONIC,LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

sub86120-76T11

main86120-76T11iKMA10..RHD..GEN202404-202412

PANASONIC

main86120-76T12iKMA10..RHD..GEN202501

PANASONIC

main86120-76T50iKMA10..LHD..GEN202401-202411

DENSO TEN

main86120-76T60iKMA10..RHD..EUR202401-202410

PANASONIC

main86120-76T61iKMA10..RHD..EUR202411

PANASONIC

main86120-76U40iKMA10..LHD..GEN202411

PANASONIC

main86130-76K20iMZAA10,MZAH1#..ARL202207-202208

DENSO TEN

sub86130-76K21

main86130-76K21iMZAA10,MZAH10,15..ARL202209

DENSO TEN

main86130-76K90iKMA10..ARL202303-202401

DENSO TEN

main86130-76P40iMZAH11,16..ARL202401

DENSO TEN

main86130-76Q20iKMA10..ARL202401

DENSO TEN

8615

86183DCOVER, AUDIO AMPLIFIER

main86183-76020iMZAH16..EUR;MZAH11..RHD..(EUR,GEN);MZAH11..LHD..(EUR,GCC)202207

AUDIO-EMV & 13SPEAKER

main86183-76020iMZAA10,MZAH10,15..EUR,GCC,GEN202207

AUDIO-*DA & 10SPEAKER

main86183-76020iMZAA10,MZAH10,15..ARL202207

AUDIO-EMV & 10SPEAKER

main86183-76020iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 13SPEAKER

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-05161-C0iMZAA10,MZAH10,15..CHI,EUR,GCC,GEN202207

AUDIO-EMV & 10SPEAKER,BLACK

sub90467-05161

main90467-05161-C0iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 10SPEAKER,BLACK

sub90467-05161

main90467-05161-C0iMZAA10,MZAH10,15..ARL202207

AUDIO-EMV & 13SPEAKER,BLACK

sub90467-05161

main90467-05161-C0iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 13SPEAKER,BLACK

sub90467-05161

main90467-05161-C0iMZAH10..CHI202207

BLACK

sub90467-05161

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-34010iMZAA10,MZAH10,15202207-202512

86211BRACKET, RADIO, NO.1

main86211-76180iMZAA10,MZAH10,15..RHD202207-202512

main86211-76190iMZAH11..CHI202207-202512

86212BRACKET, RADIO, NO.2

main86212-76190iMZAA10,MZAH10,15..RHD202207-202512

main86212-76200iKMA10..LHD202207-202512

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-76160iMZAH11,16..ARL202207

AUDIO-EMV & 10SPEAKER

main86280-76190iKMA10..ARL202401-202406

COSTA RICA SPEC&LUXURY PACKAGE

main86280-76190iKMA10..ARL202303-202406

LUXURY PACKAGE

main86280-76190iKMA10..ARL202303-202406

AUDIO-EMV & 13SPEAKER

main86280-76190iKMA10..LHD..GEN202401-202406

PERU SPEC&LUXURY PACKAGE

main86280-76190iKMA10..LHD..GEN202401-202406

PHILIPPINES SPEC&LUXURY PACKAGE

main86280-76191iKMA10..RHD..GEN202407-202512

LUXURY PACKAGE

main86280-76191iKMA10..RHD..GEN202407-202512

AUDIO-EMV & 13SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-76030iMZAH10..CHI202207

AUDIO-EMV & 10SPEAKER

main86285-76030iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 10SPEAKER

main86285-76030iMZAA10,MZAH10,15..ARL202207

AUDIO-EMV & 13SPEAKER

main86285-76030iMZAA10,MZAH10,15..ARL202207

AUDIO-*DA & 13SPEAKER

main86285-76040iKMA10202303-202512

86286BRACKET, AMPLIFIER, NO.2

main86286-76030iKMA10..ARL202303-202512

AUDIO-EMV & 13SPEAKER

main86286-76030iKMA10..RHD..GEN202303-202512

LUXURY PACKAGE

main86286-76040iMZAH10..CHI202207

AUDIO-*DA & 10SPEAKER

main86286-76040iMZAH11,16..ARL202207

AUDIO-EMV & 10SPEAKER

9011906A07

main90119-06A07

9015350010

main90153-50010

9167380616

main91673-80616

13 parts on this diagram · 5 diagrams in section
