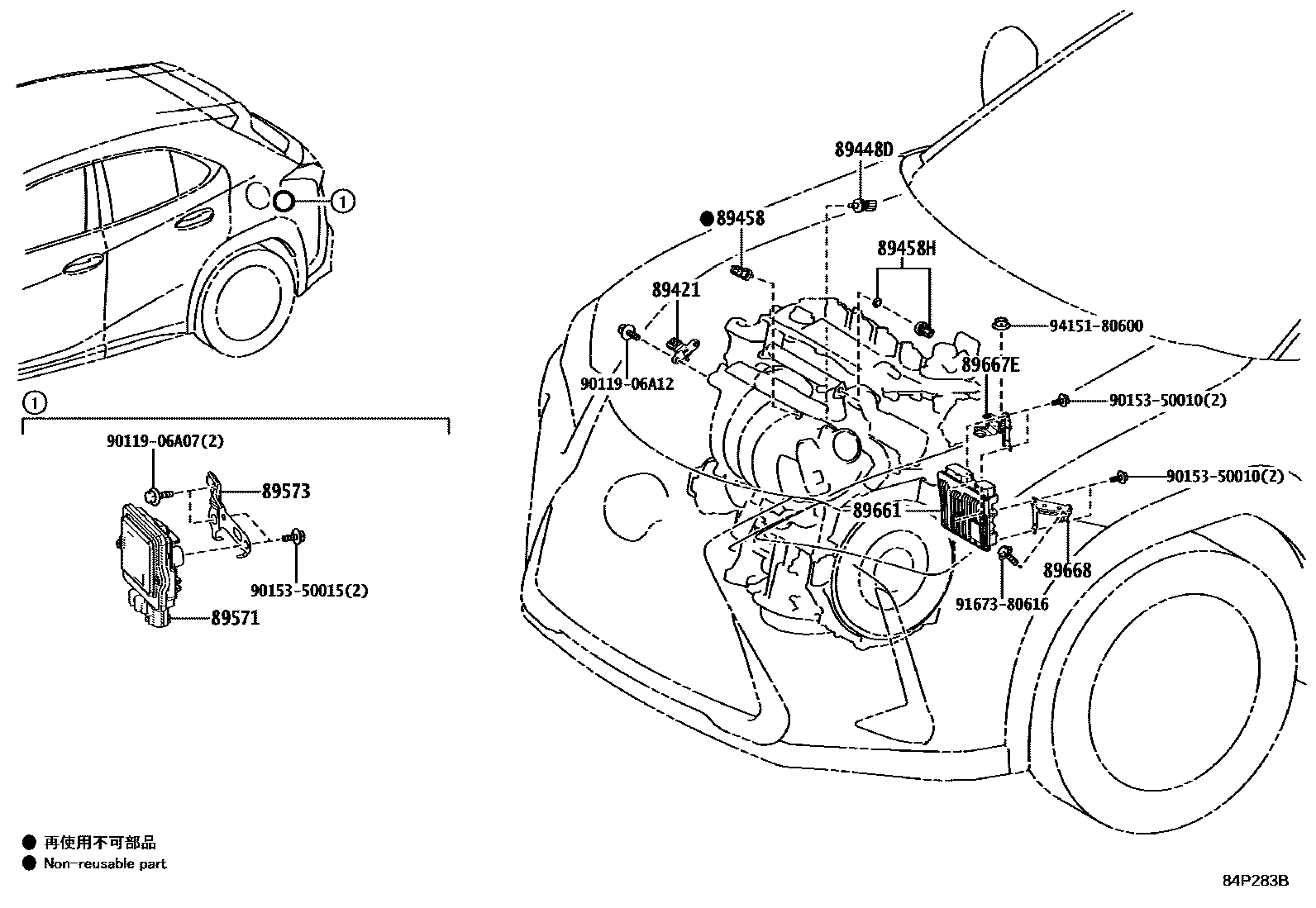

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010i202207

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010i202207

89458SENSOR, FUEL PRESSURE

main89458-33030i202207

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041i202207-202303

main89458-33042i202304

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010i202207

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-76010i202207

89661COMPUTER, ENGINE CONTROL

main89661-76220i202207

DENSO,PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76240i202207

DENSO,DESTINATION PACKAGE(ERP)&MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76370i202401

DENSO

main89661-76450i202401-202501

DENSO

main89661-76490i202207

DENSO,DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main89661-76650i202207

DENSO

main89661-76660i202207

DENSO,DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main89661-76590i202207

DENSO,DEST.PACKAGE (EXC/ERP.)-BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRASIL BR3 WITH(ON BOARD DIAGNOSIS)

main89661-76640supersedes 89661-76630i202207

DENSO,DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350i202207

main89667-47110i202401

main89667-76010i202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280i202207

main89668-47060i202401

main89668-76010i202207

9011906A07

main90119-06A07

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
