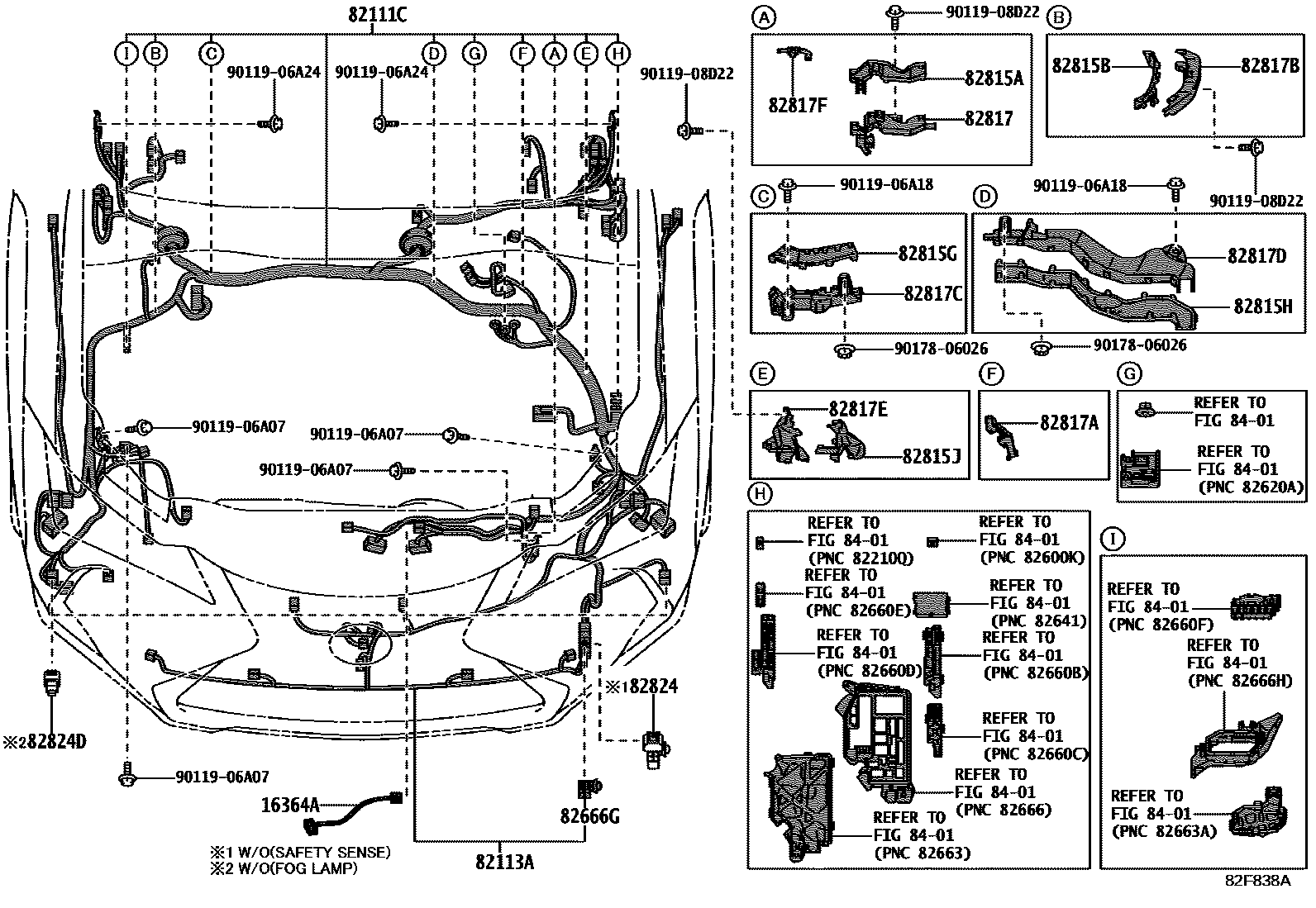

WIRING & CLAMP
16364AWIRE, COOLING FAN
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC
82111CWIRE, FRONT COMPARTMENT, MAIN
F SPORT
LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC& LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&UKRAINE SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&UKRAINE SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&UKRAINE SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&F SPORT&EXHAUSTEMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&EXHAUST EMISSIONCONTROL-EURO 6
DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC& LUXURY PACKAGE&EXHAUST EMISSIONCONTROL-EURO 6&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC& LUXURY PACKAGE&EXHAUST EMISSIONCONTROL-EURO 6&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6
PERU SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 5
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5
GUATEMALA SPEC&EXHAUST EMISSION CONTROL-EURO 5
F SPORT
DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC&EXHAUST EMISSION CONTROL-EURO 5
DESTINATION PACKAGE(ERP)&RUSSIA SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&RUSSIA SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DESTINATION PACKAGE(ERP)&RUSSIA SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&BACKMONITOR-WITH(*PVM)
LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
F SPORT
THAILAND SPEC& LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
THAILAND SPEC& LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACKMONITOR-WITH(*PVM)
SOUTH AFRICA SPEC& PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC& LUXURY PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC& LUXURY PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
SOUTH AFRICA SPEC& LUXURY PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC& LUXURY PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
SOUTH AFRICA SPEC&F SPORT&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&F SPORT&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
SOUTH AFRICA SPEC&F SPORT&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&F SPORT&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC&F SPORT
DEST.PACKAGE (EXC/ERP.)-MACAU SPEC
DEST.PACKAGE (EXC/ERP.)-MACAU SPEC&F SPORT
F SPORT
SOUTH AFRICA SPEC& PREMIUM PACKAGE&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *INC & *GBS)&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
F SPORT&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6D&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO 6D&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 6D&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(*PVM)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO 6D&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(*PVM)
PREMIUM PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
PREMIUM PACKAGE&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
LUXURY PACKAGE&AUDIO-EMV & 10SPEAKER&BACK MONITOR-WITH(GUIDE)
LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
F SPORT&AUDIO-EMV & 13SPEAKER&BACK MONITOR-WITH(GUIDE)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-L8,WITH(ON BOARD DIAGNOSIS)
sub82111-76Z41
sub82111-76Z51
sub82111-76Z81
82113AWIRE, FRONT COMPARTMENT, NO.3
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&BLIND SPOT MONITOR-WITH
OUTSIDE REAR VIEW MIRROR-*57 & *BSM&BLIND SPOT MONITOR-WITH
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
BURNEI SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDSFREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUSTE
INDONESIA SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
PREMIUM PACKAGE
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(S
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&AUDIO-EMV & 10SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&AUDIO-EMV & 13SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
OUTSIDE REAR VIEW MIRROR-*57 & *BSM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
THAILAND SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUS
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
82666GHOLDER, CONNECTOR NO.8
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815HCOVER, WIRING HARNESS PROTECTOR NO.6
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82817DPROTECTOR, WIRING HARNESS, NO.5
82817EPROTECTOR, WIRING HARNESS, NO.6
82817FPROTECTOR, WIRING HARNESS, NO.7
82824CONNECTOR, WIRING HARNESS
ACTIVE SAFETY PACKAGE-WITHOUT
82824DCONNECTOR, WIRING HARNESS
FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)
FRONT FOG LAMP-WITHOUT
8401
9011906A07
9011906A18
9011906A24
9011908D22
9017806026
24 parts on this diagram · 36 diagrams in section
