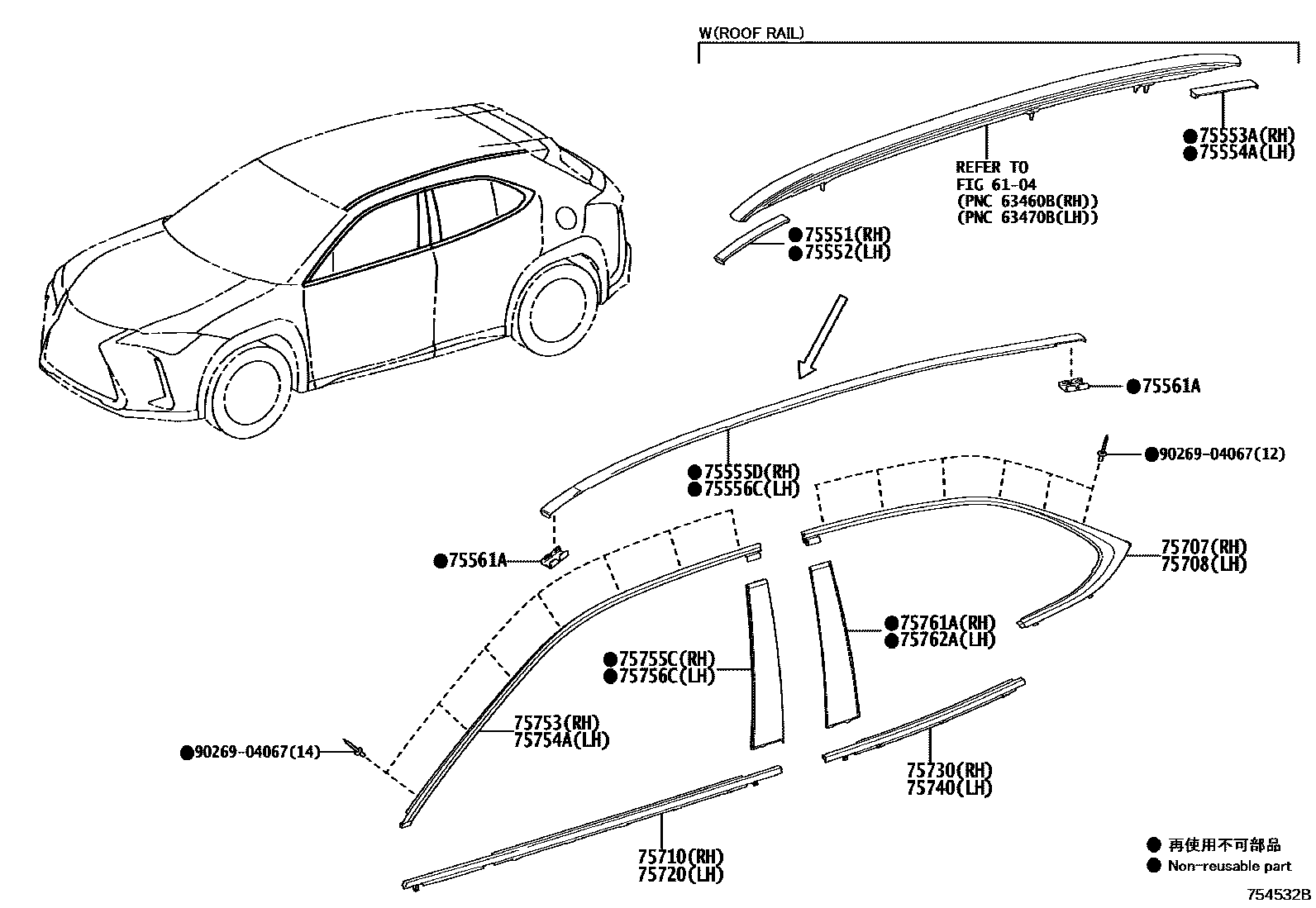

SIDE MOULDING
6104
75551MOULDING, ROOF DRIP SIDE FINISH, RH
ROOF RAIL-WITH,WHITE NOVA GF.,083 ,2XN
ROOF RAIL-WITH,SONIC QUARTZ,085
SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1 ,2XP
ROOF RAIL-WITH(BLACK),SONIC IRIDIUM,1L2
ROOF RAIL-WITH,BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,9L8 ,9L9 ,9M0 ,M03
GRAPHITE BLACK GF.,223 ,2XN ,2XP ,2XQ ,2XR ,2XS ,2XT
ROOF RAIL-WITH,MADDER RED,2XR ,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
ROOF RAIL-WITH,SONIC COPPER,4Y5
ROOF RAIL-WITH(BLACK PAINTED),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,HEAT BLUE CONTRAST LAYERI,2XT ,8X1
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
ROOF RAIL-WITH(BLACK),WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
ROOF RAIL-WITH(BLACK),SONIC CHROME,1L1
ROOF RAIL-WITH,SONIC IRIDIUM,1L2 ,2XQ
ROOF RAIL-WITH,BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,9L8 ,9L9 ,9M0 ,M03
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,2XR ,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
ROOF RAIL-WITH,SONIC COPPER,4Y5
ROOF RAIL-WITH(BLACK PAINTED),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,HEAT BLUE CONTRAST LAYERI,2XT ,8X1
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
ROOF RAIL-WITH,WHITE NOVA GF.,083 ,2XN
ROOF RAIL-WITH,SONIC QUARTZ,085
SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1 ,2XP
ROOF RAIL-WITH,SONIC IRIDIUM,1L2 ,2XQ
ROOF RAIL-WITH,BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,2ZJ
GRAPHITE BLACK GF.,223 ,2XN ,2XP ,2XQ ,2XR ,2XS ,2XT
ROOF RAIL-WITH,MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
ROOF RAIL-WITH,SONIC COPPER,4Y5
ROOF RAIL-WITH(BLACK PAINTED),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH(BLACK),HEAT BLUE CONTRAST LAYERI,8X1
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
ROOF RAIL-WITH,WHITE NOVA GF.,083 ,2XN
SONIC QUARTZ,085
SONIC TITANIUM,1J7
ROOF RAIL-WITH(BLACK),SONIC CHROME,1L1
ROOF RAIL-WITH(BLACK),SONIC IRIDIUM,1L2
ROOF RAIL-WITH(BLACK PAINTED),BLACK,212 ,2LJ ,2LN ,2QF ,2ZG ,2ZH ,2ZJ
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,2XS ,4Y1
ROOF RAIL-WITH,SONIC COPPER,4Y5
ROOF RAIL-WITH(BLACK),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,HEAT BLUE CONTRAST LAYERI,2XT ,8X1
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
9026904067
main90269-04067
21 parts on this diagram · 2 diagrams in section
